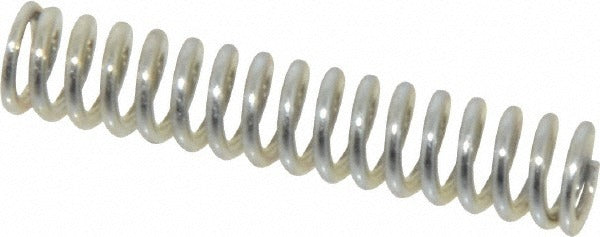

Gardner Spring 36335G Precision Compression Spring

Product Description

The GARDNER SPRING 36335G is a precision compression spring manufactured from music wire for consistent, repeatable performance in mechanical assemblies. With a 0.24-inch outside diameter and a 1.25-inch free length, this spring delivers a 26 lb/in spring rate and supports a maximum working load of 15 pounds. The closed and ground end type ensures stable seating and accurate load transfer. The plain silver finish reflects bare music wire construction, suited for applications where corrosion exposure is minimal. Maintenance technicians, machine builders, and assembly professionals working with small mechanical components will find this spring fits standard design envelopes for its size class.

This spring is appropriate for use in light-duty mechanical assemblies, instrumentation, valves, switches, and precision equipment where a small-diameter, moderate-rate compression spring is required. Its 0.25-inch hole diameter fit and compact solid height of 0.647 inches make it compatible with tight-clearance spring pockets common in manufactured components and sub-assemblies across industrial and commercial applications.

Key Features

• 0.24-inch outside diameter fits standard 0.25-inch spring pockets
• 1.25-inch free length with a 0.647-inch solid height for compact travel range
• 26 lb/in spring rate for consistent, predictable load response
• 15-pound maximum working load (71.17 N) suitable for light-duty applications
• Closed and ground ends for flat, stable seating and accurate load measurement
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards

Compatibility

Designed as a precision compression spring for general mechanical assemblies requiring a 0.24-inch OD, 1.25-inch free length, closed and ground end spring in music wire.

Installation Notes

Installation is performed by mechanical technicians or assemblers as part of sub-assembly or component replacement work. Always relieve any preload or mechanical tension on the assembly before removing the existing spring. Confirm the spring pocket diameter and depth against the 0.25-inch hole diameter fit and 0.647-inch solid height before installation. Do not compress the spring beyond its solid height during assembly or testing.
