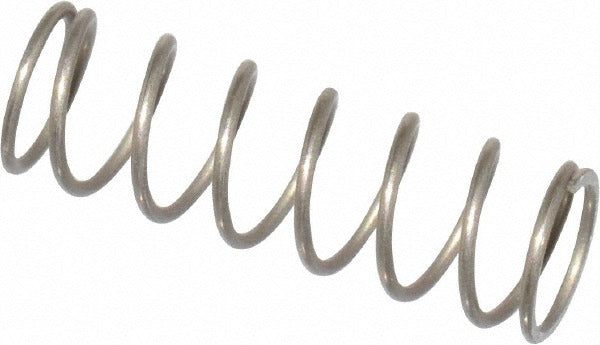

Gardner Spring 36293GS Precision Compression Spring

Product Description

The GARDNER SPRING 36293GS is a precision compression spring manufactured from stainless steel for reliable, corrosion-resistant performance in demanding mechanical and trade applications. This closed and ground end spring measures 0.24 inches outside diameter with a 3/4 inch free length and a 0.022 inch wire diameter. It delivers a maximum work load of 3 pounds and a spring rate of 4.78 pounds per inch, making it well suited for compact assemblies requiring consistent, repeatable force. Licensed tradespeople and assemblers working on HVAC, plumbing, and light mechanical systems commonly use springs of this type in valve assemblies, actuators, and control mechanisms where dimensional precision is critical.

This spring is appropriate for residential and light commercial applications where a small-format, high-precision compression spring is required. Its stainless steel construction and plain silver finish make it suitable for environments where moisture exposure or chemical contact is a concern. The 36293GS fits into hole diameters of 0.25 inches and reaches a solid height of 0.188 inches when fully compressed. It is sold in packages of five, allowing stocking for multiple service calls or repair jobs without excess inventory.

Key Features

• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards for material quality and consistency
• Closed and ground ends provide flat, stable seating surfaces for accurate load transfer
• 0.24 inch outside diameter fits into a 0.25 inch hole diameter for precise installation
• Maximum work load of 3 pounds with a spring rate of 4.78 pounds per inch for consistent force output
• Solid height of 0.188 inches allows use in compact assemblies with limited travel space
• Packaged in quantities of five for efficient stocking and field use

Compatibility

Designed as an OEM-style precision compression spring for use in compact mechanical assemblies, valve bodies, actuators, and control components requiring a 0.24 inch outside diameter closed and ground end spring.

Installation Notes

Installation of compression springs should be performed with the system fully de-energized and depressurized before disassembly. Confirm the replacement spring matches the original outside diameter, free length, wire diameter, and end type before seating. Use appropriate hand tools and avoid overcompressing the spring beyond its solid height during installation. Follow all applicable mechanical and safety codes for the system being serviced.
