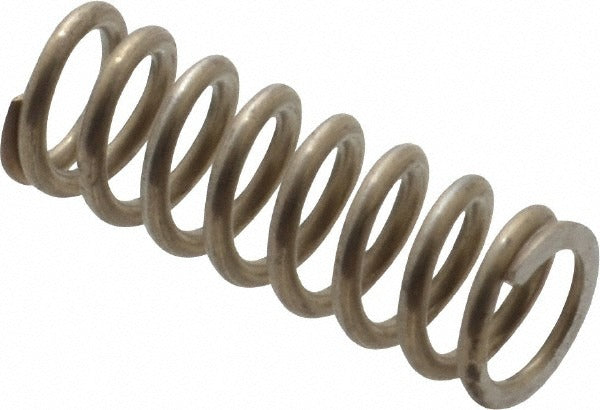

Gardner Spring 36263GS Compression Spring 0.18 in Od Ss

Product Description

The GARDNER SPRING 36263GS is a precision compression spring manufactured from stainless steel for reliable performance in demanding mechanical and industrial applications. The spring measures 0.18 inches in outside diameter with a free length of 0.5 inches and a wire diameter of 0.026 inches. It delivers a maximum work load of 7 pounds and a spring rate of 23.48 pounds per inch. The closed and ground end type ensures stable seating and consistent load distribution. This spring is suited for installation by mechanical technicians, maintenance professionals, and precision assembly specialists working across a wide range of light-duty compression applications.

This compression spring is used in precision mechanical assemblies where tight dimensional tolerances and consistent spring rates are required. Common applications include instrumentation, valve assemblies, medical devices, and small mechanism components where stainless steel construction is necessary for corrosion resistance or cleanliness standards. The solid height of 0.235 inches and hole diameter clearance of 0.188 inches support accurate fitment within confined bore or housing geometries. Sold in packages of 5 with a minimum order quantity of 1.

Key Features

• Precision compression spring with closed and ground ends for stable, flat seating
• Stainless steel construction (AISI 302) resists corrosion in wet or chemically exposed environments
• 0.18 inch outside diameter and 0.026 inch wire diameter support use in compact assemblies
• Spring rate of 23.48 pounds per inch provides predictable load-deflection behavior
• Maximum work load of 7 pounds with a solid height of 0.235 inches
• Meets ASTM A228 and ASTM A313 material standards

Compatibility

Designed as a precision OEM-style replacement or new-installation compression spring for mechanical assemblies requiring a 0.18 inch outside diameter, 0.5 inch free length, closed and ground end configuration in stainless steel.

Installation Notes

Installation is typically performed by mechanical technicians or assembly personnel familiar with small-spring applications. Verify bore and shaft clearances against the 0.188 inch hole diameter and 0.18 inch outside diameter before installation to ensure proper fitment without binding. Avoid compressing the spring beyond its solid height of 0.235 inches during assembly, as this can permanently set the spring and reduce rated load capacity. Handle stainless steel springs with clean tools to prevent surface contamination in sanitary or corrosion-sensitive environments.
