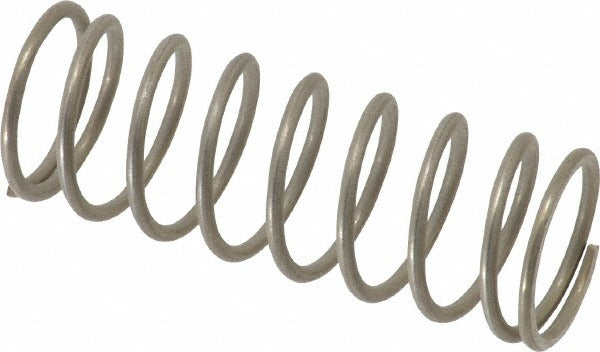

Gardner Spring 36119GS Precision Compression Spring

Product Description

The GARDNER SPRING 36119GS is a precision compression spring manufactured from stainless steel and designed for demanding industrial and mechanical applications. It features a 0.72-inch outside diameter and a 2-inch free length, with a wire diameter of 0.063 inches. The spring delivers a rated spring rate of 9.57 pounds per inch and supports a maximum working load of 13.48 pounds. End type is closed and ground, which promotes even load distribution and stable seating on flat surfaces. This part is packaged in quantities of five and suits maintenance, repair, and OEM assembly work across multiple trades and industries.

This compression spring is suited for use in mechanical assemblies, HVAC equipment, plumbing components, and general industrial machinery where consistent spring force and corrosion resistance are required. The stainless steel construction makes it appropriate for environments with moisture exposure or mild chemical contact. Technicians and assemblers working on equipment requiring a 0.72-inch OD spring with a 3/4-inch hole diameter fit will find this part a direct candidate for their application.

Key Features

• Precision spring type with closed and ground ends for stable, flat seating
• 0.72-inch outside diameter fits a 0.75-inch (3/4-inch) hole diameter
• 9.57 pounds per inch spring rate for predictable, consistent load response
• 13.48-pound maximum working load capacity
• Stainless steel construction with plain finish for corrosion resistance
• Meets AISI 302, ASTM A228, and ASTM A313 material standards

Compatibility

Designed as a precision OEM-style replacement or maintenance compression spring for mechanical assemblies requiring a 0.72-inch outside diameter, 2-inch free length, and closed and ground end configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with mechanical assembly procedures. Relieve all tension or pressure from the assembly before removing or installing any spring component. Verify that the mating bore diameter accommodates the 0.75-inch hole diameter specification before installation. Do not compress the spring beyond its solid height of 0.616 inches during assembly or operation.
