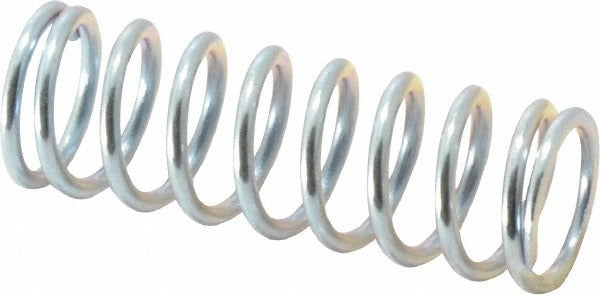

Gardner Spring 36110G Precision Compression Spring

Product Description

The GARDNER SPRING 36110G is a precision compression spring manufactured from music wire (AISI 302 / ASTM A228 / ASTM A313) with a closed and ground end configuration. It measures 0.6 inches in outside diameter and 1.75 inches in free length, with a wire diameter of 0.067 inches. The spring delivers a maximum work load of 26 pounds and a spring rate of 24 pounds per inch, making it well suited for consistent, repeatable force applications in mechanical assemblies. Technicians and engineers working in HVAC, plumbing, electrical, or general industrial settings install this spring where precise load control and dimensional accuracy are required.

This compression spring fits into applications calling for a hole diameter of 0.625 inches and a solid height of 0.654 inches. It is appropriate for light-duty to medium-duty mechanical assemblies in residential and commercial equipment, including valve assemblies, control mechanisms, actuators, and general-purpose spring-loaded components. The plain silver finish provides a clean surface finish without additional coating. Its compact free length of 1.75 inches suits applications with limited space. Sold in packages of 5 units minimum order quantity.

Key Features

• Closed and ground end type for stable, flat seating and accurate load transfer
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Spring rate of 24 pounds per inch for predictable deflection under load
• Maximum work load of 26 pounds with a solid height of 0.654 inches
• Outside diameter of 0.6 inches fits a 0.625-inch hole diameter
• Plain silver finish with no additional coating applied

Compatibility

Designed for use in mechanical assemblies requiring a precision compression spring with a 0.6-inch outside diameter, 1.75-inch free length, and closed and ground ends. Confirm hole and shaft dimensions against equipment specifications before installation.

Installation Notes

Compression springs of this type are installed by mechanical technicians and maintenance professionals working on spring-loaded valve, actuator, or control assemblies. Power down or de-energize equipment and relieve any stored mechanical energy before removing or installing springs. Use appropriate hand tools to seat the spring squarely against mating surfaces. Verify that the installed spring free length and solid height are compatible with the travel limits of the assembly.
