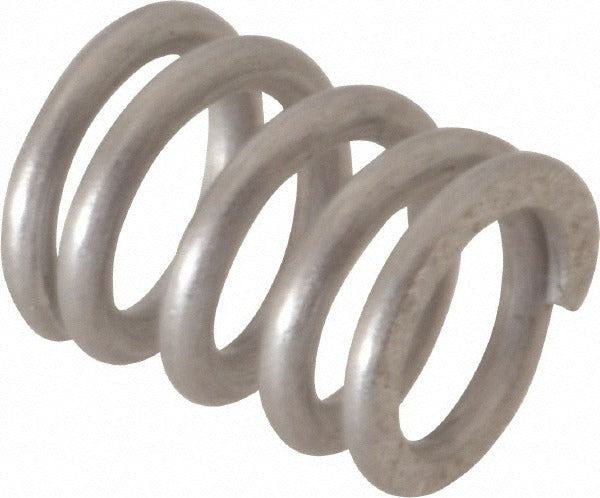

Gardner Spring 36054GS Precision Compression Spring

Product Description

The GARDNER SPRING 36054GS is a precision compression spring manufactured from stainless steel and designed for applications requiring consistent force output in a compact envelope. With a 0.3-inch outside diameter, a 0.375-inch free length, and a wire diameter of 0.045 inches, this spring delivers a maximum load of 17.16 pounds at a spring rate of 107.8 pounds per inch. The closed and ground end type ensures stable seating and accurate load transfer. It suits mechanical assemblies, instrumentation, valves, and industrial equipment where dimensional precision and corrosion resistance are required.

The 36054GS is suited for light-duty precision mechanical assemblies across industrial, HVAC, plumbing, and instrumentation applications. Its small form factor and high spring rate relative to its size make it a practical choice for valve mechanisms, actuators, and retention assemblies. The silver plain finish and stainless steel construction support use in environments with moisture exposure or where contamination of a plated finish is a concern. Packaged in quantities of five, it is well matched for service technicians maintaining or repairing equipment with identical spring requirements.

Key Features

• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Spring rate of 107.8 pounds per inch for precise, repeatable force output
• Maximum working load of 17.16 pounds
• Closed and ground ends for stable, flat seating
• 0.3-inch outside diameter fits a 0.312-inch hole diameter clearance
• Plain silver finish with no coating to flake or contaminate the assembly

Compatibility

Designed as an OEM-style precision compression spring suitable for mechanical assemblies requiring a 0.3-inch outside diameter, 0.375-inch free length, and closed-ground end configuration.

Installation Notes

Installation is typically performed by mechanical technicians or trade professionals servicing valves, actuators, or precision assemblies. Always de-energize and depressurize the system before replacing internal spring components. Verify the solid height of 0.226 inches does not cause binding in the assembly at full compression. Use appropriate hand tools and confirm the replacement spring seats flush against both mating surfaces before reassembling the housing.
