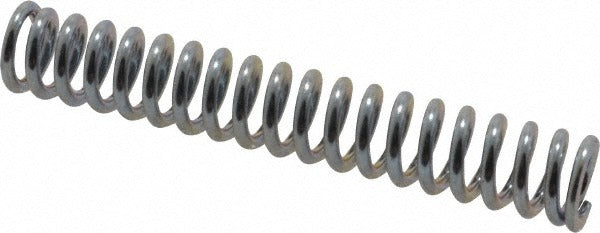

Gardner Spring 36035G Precision Compression Spring

Product Description

The GARDNER SPRING 36035G is a precision compression spring manufactured from music wire and finished plain with a silver appearance. It features a 0.24-inch outside diameter, a 1.5-inch free length, and a 0.0382-inch wire diameter. The spring delivers a rate of 21 pounds per inch with a maximum working load of 16 pounds, making it suitable for light-duty mechanical applications requiring consistent, repeatable force. Closed and ground ends ensure stable seating and accurate load performance. This spring is used by maintenance technicians, mechanical assemblers, and trade professionals working on equipment that demands tight dimensional tolerances.

This compression spring is designed for applications where controlled force and compact sizing are required. Its precision construction makes it appropriate for use in HVAC equipment components, plumbing valves, electrical assemblies, and general industrial mechanisms. The 0.25-inch hole diameter fits standard small-bore seats. With a solid height of 0.772 inches, this spring suits applications where compressed height clearance is limited. It is sold in packages of 5 with a minimum order quantity of 1 package.

Key Features

• 0.24-inch outside diameter with closed and ground ends for stable, flat seating
• 21 pounds per inch spring rate for consistent, linear force output
• 16-pound maximum working load capacity
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• 0.772-inch solid height suits assemblies with tight compressed-height clearances
• Plain finish; silver color; fits a 0.25-inch diameter hole

Compatibility

Designed as a precision replacement or OEM-style compression spring for light-duty mechanical, HVAC, plumbing valve, and electrical component applications requiring a 0.24-inch OD and 1.5-inch free length music wire spring.

Installation Notes

Installation is performed by qualified technicians or mechanical assemblers. De-energize or depressurize any equipment before replacing internal springs. Verify that the mating bore diameter and pocket depth match the spring outside diameter and solid height before installation. Do not compress the spring beyond its solid height during assembly.
