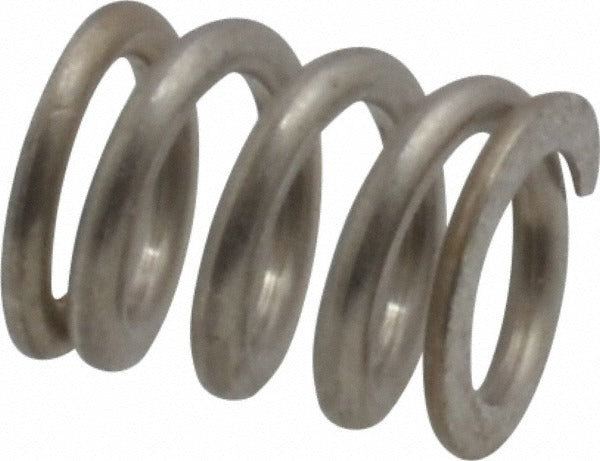

Gardner Spring 36033GS Precision Compression Spring

Product Description

The GARDNER SPRING 36033GS is a precision compression spring manufactured from stainless steel to close-tolerance dimensional standards. It measures 0.24 inches in outside diameter with a free length of 0.312 inches and a wire diameter of 0.0382 inches. The spring delivers a spring rate of 110.4 pounds per inch and supports a maximum work load of 13.9 pounds. Closed and ground ends provide stable seating and consistent load distribution. This part is suited for mechanical assemblies where tight dimensional accuracy and corrosion resistance are required, and it is typically installed by mechanical technicians, maintenance engineers, or assemblers working in industrial or OEM production environments.

This compression spring is used in compact mechanical applications where space is limited and load precision matters. Its small OD and short free length make it appropriate for valve assemblies, instrumentation, medical devices, electronic hardware, and light-duty industrial equipment. The stainless steel construction handles environments where moisture, mild chemicals, or temperature cycling would degrade carbon steel springs. Sold in packages of five units per order.

Key Features

• Closed and ground ends for flat, stable seating and consistent force delivery
• 110.4 pounds per inch spring rate for predictable, repeatable load performance
• 13.9-pound maximum work load capacity
• Stainless steel construction resists corrosion and oxidation
• 0.312-inch free length and 0.191-inch solid height suit compact assemblies
• Meets AISI 302, ASTM A228, and ASTM A313 material standards

Compatibility

Designed for use in applications requiring a precision compression spring with a 0.24-inch outside diameter and a recommended hole diameter of 0.25 inches, conforming to AISI 302 and ASTM A313 stainless steel specifications.

Installation Notes

Depressurize or de-energize any assembly before removing or installing compression springs. Verify that the mating bore diameter accommodates the 0.25-inch recommended hole diameter and that the seating surfaces are clean and flat to ensure proper end contact. Use appropriate hand tools or spring insertion equipment to avoid overextending the spring beyond its elastic range during installation.
