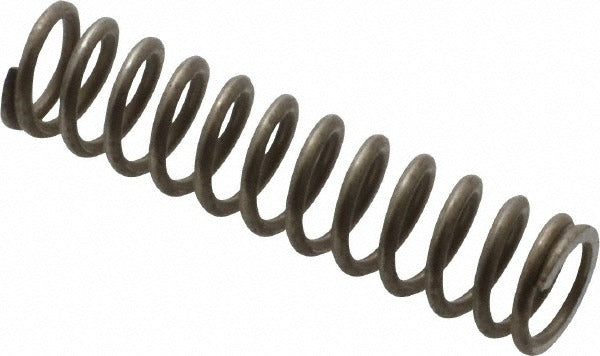

Gardner Spring 36032GS Precision Compression Spring

Product Description

The GARDNER SPRING 36032GS is a precision compression spring manufactured from stainless steel to AISI 302, ASTM A228, and ASTM A313 standards. It features a 0.24 inch outside diameter, a 1 inch free length, and a 0.032 inch wire diameter. The spring delivers a rated spring rate of 13.91 pounds per inch with a maximum work load of 8.7 pounds. Closed and ground ends provide flat, stable seating on contact surfaces. This spring is suited for HVAC equipment, plumbing valves, electrical assemblies, and general mechanical applications where consistent force and corrosion resistance are required.

This spring is used in light-duty compression applications across residential and commercial equipment. Typical installations include valve return mechanisms, relay assemblies, pressure regulators, and component mounting fixtures. The small diameter and precise tolerances make it appropriate for confined-space applications where consistent spring force is critical to system performance. Licensed technicians and mechanical assemblers working across HVAC, plumbing, and electrical trades will encounter this type of spring in service and replacement work.

Key Features

• Precision closed and ground ends for flat seating and consistent load distribution
• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Spring rate of 13.91 pounds per inch provides predictable, linear force response
• Maximum work load rated at 8.7 pounds
• 0.24 inch outside diameter fits a 0.25 inch hole diameter clearance
• Solid height of 0.425 inches limits deflection under full compression

Compatibility

Designed as a precision replacement or maintenance compression spring for mechanical assemblies requiring a 0.24 inch outside diameter, 1 inch free length, and 0.032 inch wire diameter in stainless steel construction.

Installation Notes

Installation should be performed by qualified technicians familiar with the equipment being serviced. De-energize electrical systems and depressurize plumbing or pneumatic assemblies before replacing internal springs. Confirm the mating bore and rod dimensions match the spring outside diameter and wire size before installation. Avoid overstressing the spring beyond its rated maximum work load to prevent set and premature failure.
