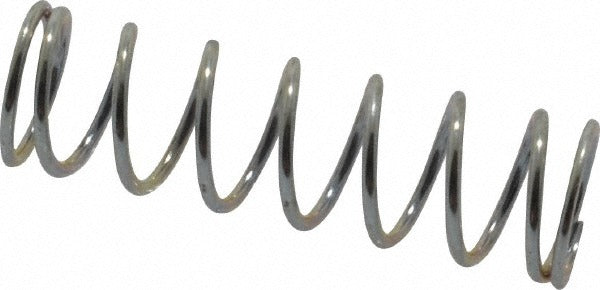

Gardner Spring 36026G Precision Compression Spring

Product Description

The GARDNER SPRING 36026G is a precision compression spring manufactured from music wire with a plain silver finish. It features a 0.24-inch outside diameter, a 0.812-inch free length, and a 0.022-inch wire diameter. The spring delivers a maximum work load of 3.25 pounds and a spring rate of 5 pounds per inch, making it well-suited for applications that demand consistent, repeatable force in a compact envelope. Ends are closed and ground for flat, stable seating. This spring meets AISI 302, ASTM A228, and ASTM A313 standards, confirming material and dimensional quality appropriate for precision mechanical assemblies.

This spring is used in light-duty mechanical and electromechanical assemblies across HVAC controls, plumbing valves, electrical switches, and general industrial equipment. Its small diameter and short free length make it a common choice for push-button mechanisms, valve stems, relay components, and similar spring-loaded assemblies where precise load and rate control are required. Installation is typically performed by mechanical technicians and equipment assemblers working with small-component subassemblies.

Key Features

• 0.24-inch outside diameter with 0.25-inch recommended hole diameter for accurate bore fit
• 5 lb/in spring rate for consistent, predictable deflection under load
• 3.25-pound maximum work load with 0.199-inch solid height
• Closed and ground ends for flat seating and reduced buckling tendency
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Plain silver finish suitable for dry, indoor mechanical environments

Compatibility

Designed as an OEM-style precision compression spring replacement for light-duty mechanical assemblies requiring a 0.24-inch outside diameter and a 5 lb/in spring rate.

Installation Notes

Installation is performed by qualified mechanical or electromechanical technicians. De-energize and lock out all equipment before disassembling spring-loaded components to prevent uncontrolled release. Verify bore diameter matches the 0.25-inch recommended hole diameter before seating the spring. Inspect mating surfaces for burrs or debris that could cause misalignment or premature fatigue.
