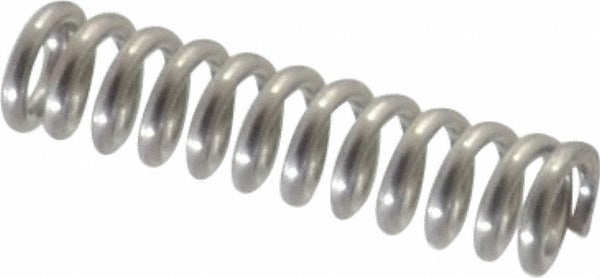

Gardner Spring 36007GS Compression Spring Stainless Steel

Product Description

The GARDNER SPRING 36007GS is a precision compression spring manufactured from stainless steel. It measures 0.12 inches in outside diameter with a free length of 0.5 inches and a wire diameter of 0.022 inches. The spring delivers a rated spring rate of 26.96 pounds per inch and supports a maximum work load of 5.22 pounds. Closed and ground ends provide stable seating and consistent load transfer under compression. The plain finish and stainless steel construction make it suitable for applications where corrosion resistance and dimensional consistency are critical. Technicians and assemblers across HVAC, plumbing, and industrial equipment sectors use this spring type in precision sub-assemblies and control mechanisms.

This compression spring fits applications requiring a small-diameter, short-travel precision spring. Typical uses include valve assemblies, control linkages, instrument components, and light-load mechanical mechanisms in residential and commercial equipment. Its stainless steel construction suits environments exposed to moisture, mild chemicals, or temperature cycling. The 0.125-inch hole diameter clearance spec helps guide proper shaft or housing sizing during installation. Sold in a package quantity of 5 units per order.

Key Features

• Precision spring type with closed and ground ends for consistent seating and load distribution
• Stainless steel construction for corrosion resistance in demanding environments
• Outside diameter of 0.12 inches and free length of 0.5 inches for compact, tight-space applications
• Spring rate of 26.96 pounds per inch provides predictable, linear compression response
• Maximum work load rated at 5.22 pounds
• Plain silver finish with no coating that could affect dimensional tolerances

Compatibility

Designed as a precision OEM-style compression spring suitable for small-diameter spring applications in mechanical assemblies, valve bodies, and instrument housings requiring a 0.12-inch OD form factor.

Installation Notes

Installation is performed by qualified technicians or assemblers working on mechanical sub-assemblies or control components. Power down or de-energize any associated equipment before disassembling spring-loaded mechanisms. Verify shaft and housing bore dimensions against the 0.125-inch recommended hole diameter before installing. Do not compress the spring beyond its solid height of 0.309 inches during installation or operation.
