Gardner Bender MDI-150Y Insulated Cable Staple 100ct

Product Description

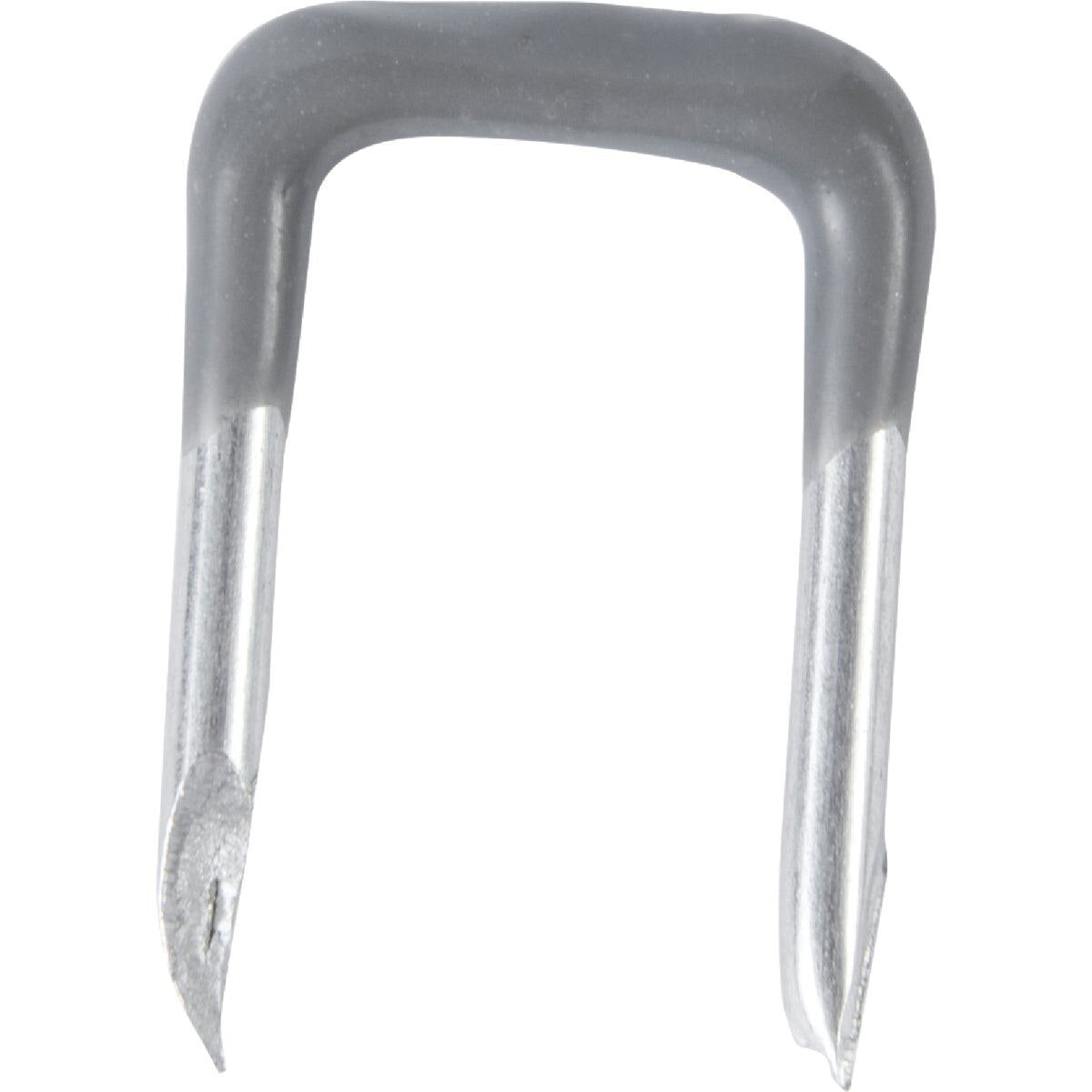

The GARDNER BENDER MDI-150Y is a 1 inch by 0.5 inch insulated cable staple designed to secure electrical cable while protecting wire insulation during and after installation. The staple body is formed from 12-gauge carbon steel and finished with a rust inhibitor applied during tumble deburring. The insulating saddle is a hot melt bonded PVC rated at 250 volts per millimeter of dielectric strength, per ETL test standard 525777. The PVC collar is color coded by size and application, giving installers a fast visual confirmation of correct staple selection. This staple ships 100 units per box.

The MDI-150Y is intended for residential and light commercial electrical rough-in work where cable must be secured to framing, joists, or other structural members. Electricians use it to fasten NM-B, coaxial, or similarly sized cable runs while minimizing risk of nicking insulation during drive. The color-coded PVC insulator also serves as a visual indicator that insulation integrity has been maintained at each fastening point, reducing short-circuit risk from staple contact with the conductor sheath.

Key Features

• 12-gauge carbon steel construction for reliable holding strength in wood framing
• Hot melt bonded PVC insulating saddle rated at 250 volts per millimeter dielectric strength
• ETL tested to standard 525777 for dielectric performance
• Color coded by size and application for fast field identification
• Tumble deburred with rust inhibitor to reduce corrosion and sharp edges
• 100-count box packaging for standard rough-in stock

Compatibility

Designed as an OEM-style insulated cable staple for securing appropriately sized electrical cable in residential and light commercial wiring applications.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for cable support and securing intervals. Staples should be driven with a hammer or appropriate staple driver without over-driving, as crushing the PVC saddle can damage cable insulation. Always de-energize circuits in the work area before fastening cable near existing wiring. Inspect each staple after driving to confirm the PVC collar remains intact and centered over the cable.

Technical Specifications

• Material: 12-gauge carbon steel with PVC insulating saddle
• Staple Size: 1 inch x 0.5 inch
• Dielectric Rating: 250 volts per millimeter (ETL test 525777)
• Finish: Tumble deburred with rust inhibitor
• Package Quantity: 100 count
• Package Weight: 0.627 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: MDI-150Y
