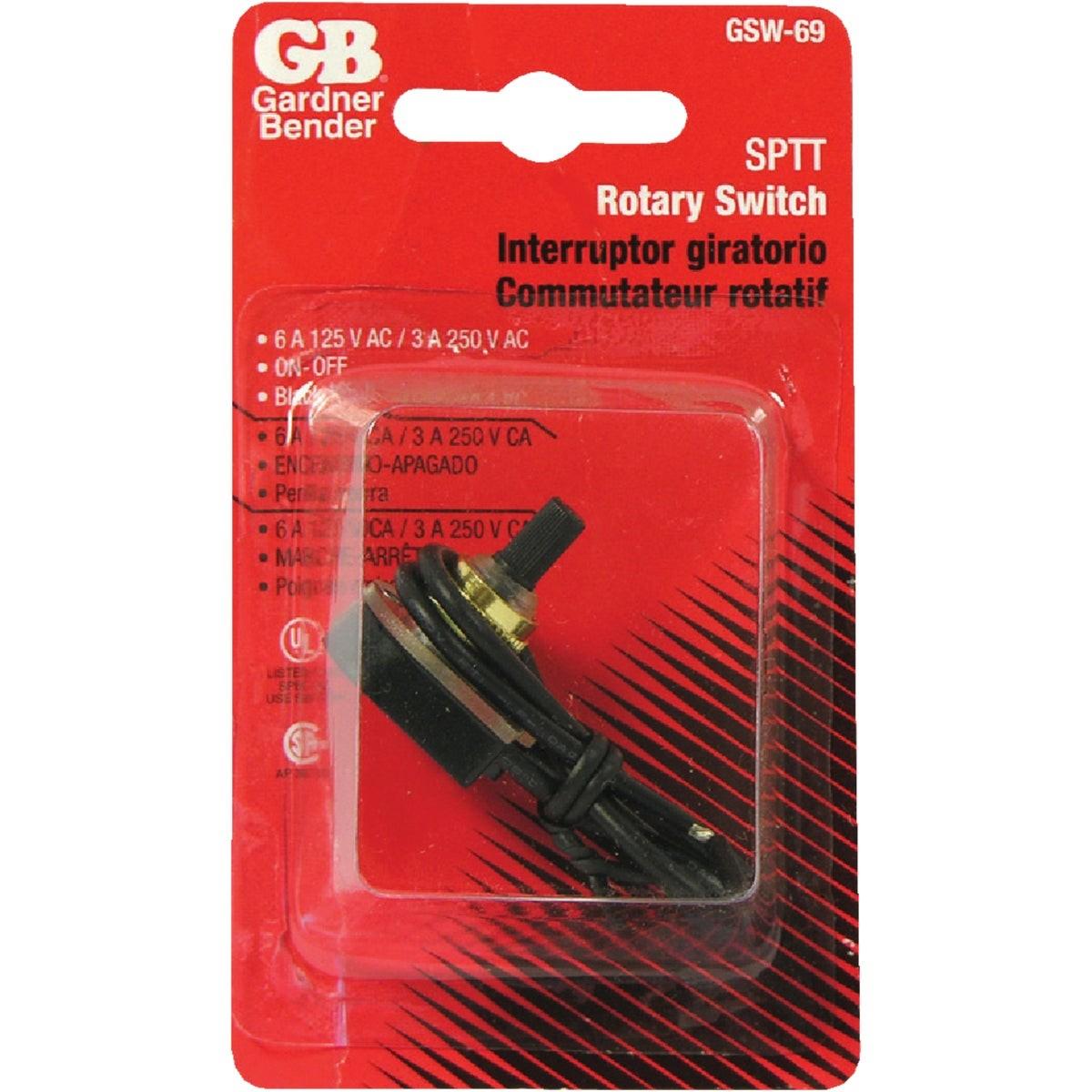

Gardner Bender GSW-69 Single Pole Rotary Switch

Product Description

The GARDNER BENDER GSW-69 is a single pole, single throw on/off rotary switch designed for use in household lamps and light-duty appliances. The switch ships with 6-inch stripped wire leads and brass terminals for direct connection without additional prep work. The body is molded in black plastic and requires a 0.513-inch mounting hole for installation. Wire gauge is 18 AWG, making it suitable for the low-current loads typical of lamp sockets and small appliance circuits. Electricians and maintenance technicians use this switch as a straightforward replacement or new-installation component in residential and light commercial fixture work.

The GSW-69 is intended for residential lamp and appliance applications where a simple rotary on/off control is needed. It fits into standard lamp socket assemblies and similar fixtures that accept a rotary-style switch with a 0.513-inch panel cutout. The pre-stripped wire leads reduce installation time in production or field repair situations. This switch is appropriate for single-pole circuits only and is not rated for multi-way switching configurations.

Key Features

• Single pole, single throw rotary design for straightforward on/off control
• 6-inch pre-stripped wire leads included for direct termination
• Brass terminals for reliable, corrosion-resistant connections
• 0.513-inch mounting hole dimension for standard lamp socket fitment
• 18 AWG wire gauge suits low-current lamp and appliance loads
• Black plastic body for heat resistance and durability in fixture housings

Compatibility

Designed as an OEM-style replacement or new-installation rotary switch for residential lamps and light-duty household appliances requiring a single pole on/off switching function.

Installation Notes

Installation should be performed by a qualified electrician or experienced technician in accordance with applicable NEC requirements. Always disconnect power to the fixture or appliance at the circuit breaker before removing or installing the switch. Connect leads securely to brass terminals and confirm no exposed conductors are accessible after assembly. Do not use this switch on circuits or loads beyond its rated wire gauge capacity.

Technical Specifications

• Switch Type: Single Pole, Single Throw (SPST) Rotary On/Off
• Wire Leads: 6 inches, pre-stripped
• Terminal Material: Brass
• Wire Gauge: 18 AWG
• Mounting Hole Diameter: 0.513 inches
• Body Material: Black Plastic
• Weight: 0.059 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: GSW-69
