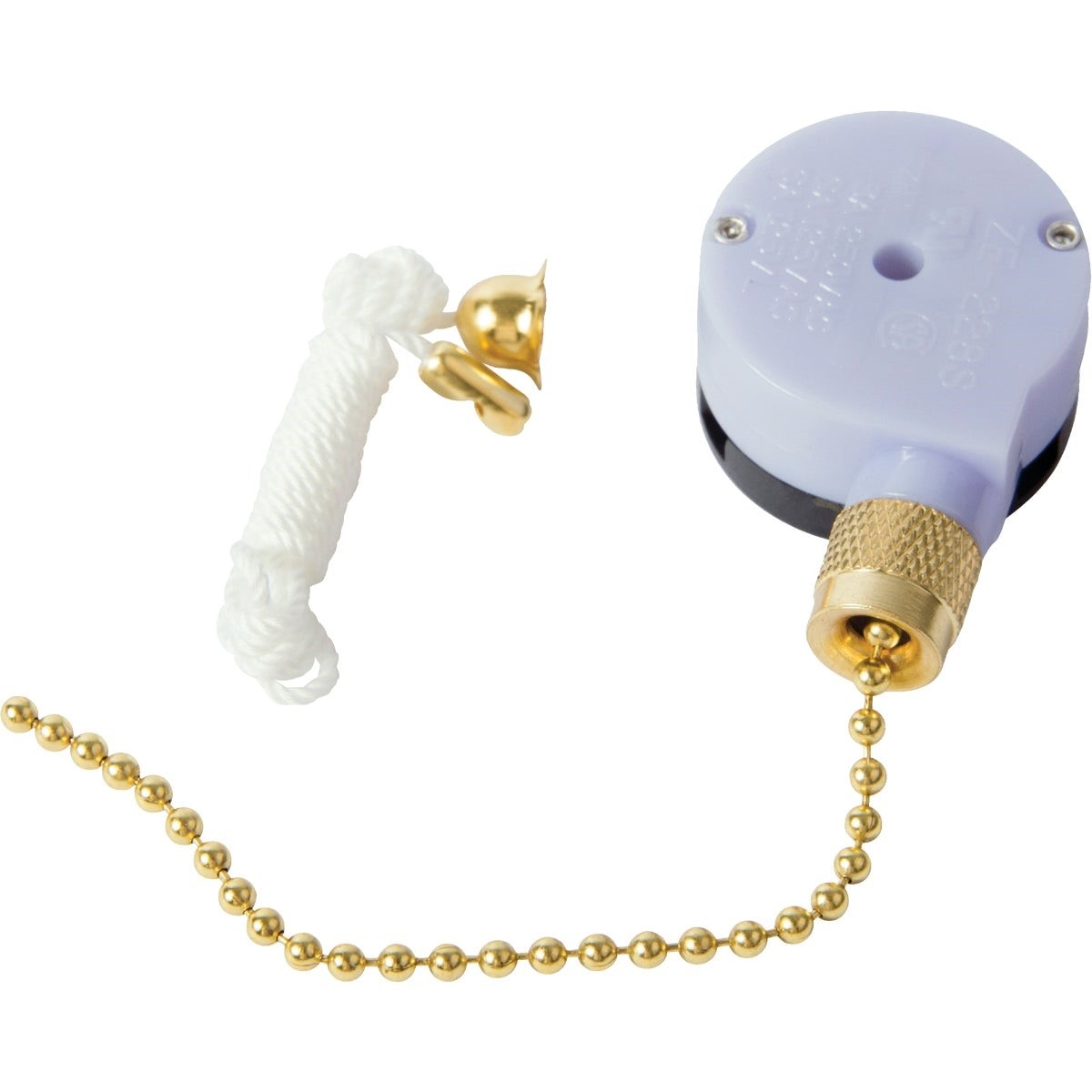

Gardner Bender GSW-33 2-speed Pull Chain Switch

Product Description

The GARDNER BENDER GSW-33 is a single-pole single-throw (SPST) pull chain switch designed for 2-speed ceiling fan control. It operates in an Off/On/On switching sequence, giving the installer clean control over two fan speeds with one pull chain. The switch accepts 18-gauge soldered stranded wire or solid wire through three stab-type wiring slots, making termination straightforward in the field. Electrical ratings are 3 amps at 250 volts AC and 6 amps at 125 volts AC. A 72-inch white cotton pull cord is included for attachment to the switch pull chain. The GSW-33 is UL listed.

This switch is used as a replacement or new-installation pull chain speed control in residential ceiling fans. It suits standard fan housings where a compact SPST switch fits the existing switch cavity. Electricians and ceiling fan installers use this part during fan repair, speed-control restoration, or new fan wiring. The included 72-inch cord eliminates the need to source a separate pull cord for most standard ceiling fan heights.

Key Features

• Off/On/On switching sequence for 2-speed ceiling fan operation
• Three stab-type wiring slots accept 18-gauge stranded or solid wire
• Rated 3A at 250V AC and 6A at 125V AC
• 72-inch white cotton pull cord included
• UL listed for safe residential installation

Compatibility

Designed as an OEM-style replacement pull chain switch for residential ceiling fans requiring a 2-speed SPST switching configuration.

Installation Notes

Installation should be performed by a qualified electrician or experienced ceiling fan installer. Always shut off power at the circuit breaker before opening the fan housing or handling any wiring. Connections are made via stab-type slots — ensure wire gauge matches the 18-gauge specification before terminating. Work performed in the United States should comply with applicable NEC requirements for fan and lighting outlet wiring.

Technical Specifications

• Switch Type: SPST (Single-Pole Single-Throw)
• Speed Settings: 2-speed (Off/On/On)
• Current Rating (125V AC): 6 amps
• Current Rating (250V AC): 3 amps
• Voltage Rating: 125V AC / 250V AC
• Wire Gauge: 18 AWG stranded or solid
• Wiring Slots: 3 stab-type
• Pull Cord Length: 72 inches
• Pull Cord Color: White
• Pull Cord Material: Cotton
• Weight: 0.073 pounds
• Certifications: UL Listed

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: GSW-33
