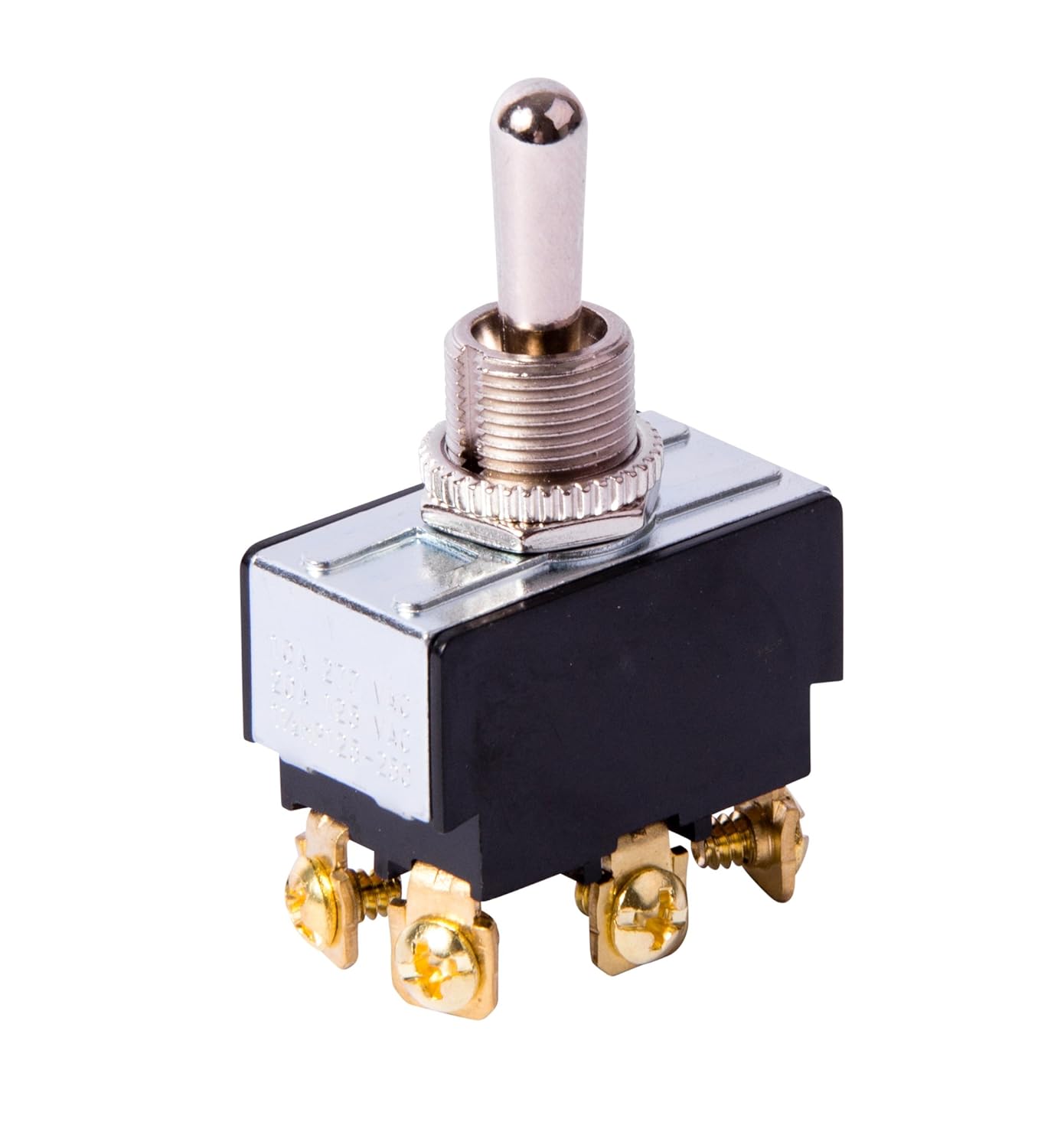

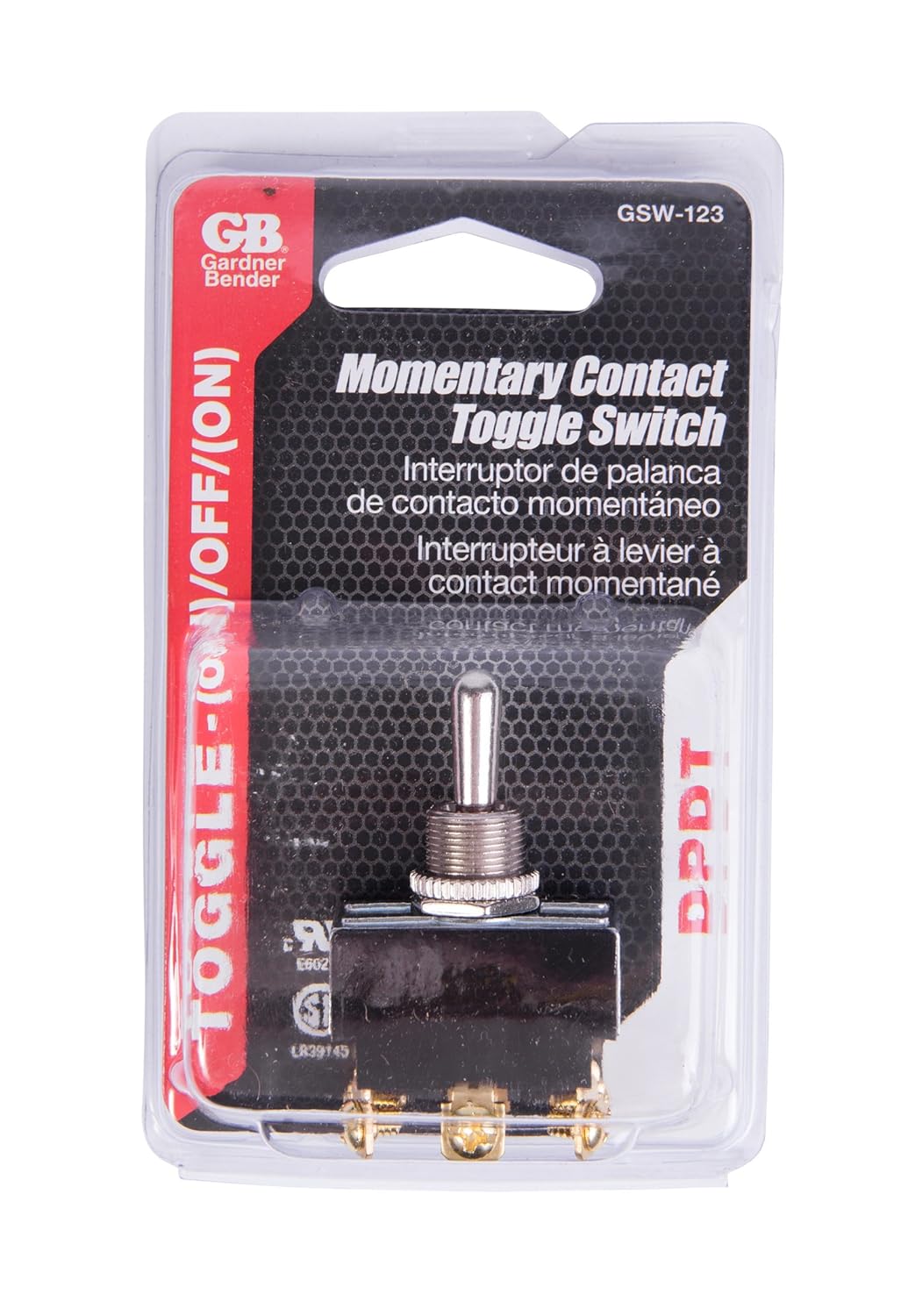

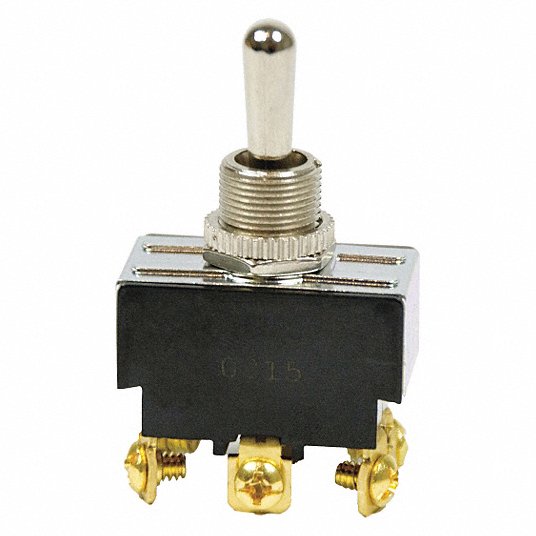

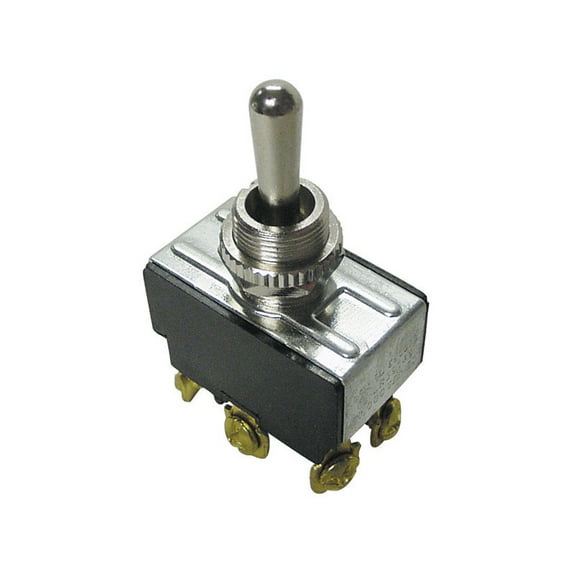

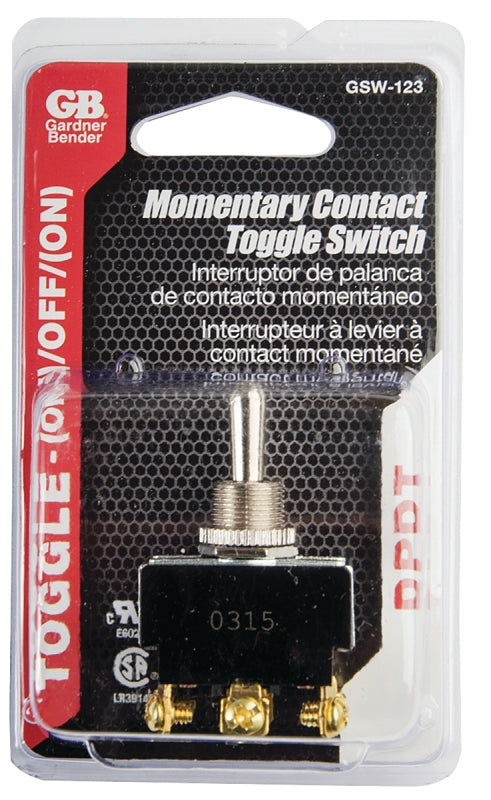

Gardner Bender GSW-123 Electrical Toggle Switch DPDT Mom ON-OFF-Mom-ON 20 A/125V AC

Product Description

The Gardner Bender GSW-123 Electrical Toggle Switch is a DPDT, momentary ON-OFF-momentary ON switch rated at 20 A/125V AC. This toggle switch features screw terminals and is suitable for various electrical connections. It is designed to meet the standards of automotive, marine, and industrial applications.

• DPDT configuration
• Momentary ON-OFF-momentary ON functionality
• Screw terminals for secure connections

Product Highlights

This Gardner Bender toggle switch is ideal for industrial equipment, emergency lighting, and automotive applications.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: GSW-123
• Country of Origin: United States

Technical Specifications

• Material: Metal
• Mounting Type: Panel
• Brand: Gardner Bender
• MPN: GSW-123
• Product Type: TOGGLE_SWITCH
• Manufacturer: Actuant
• Model / MPN: GSW-123
• HP [Specifications]: 1-1/2 HP @ 125 to 250VAC
• Amps [Specifications]: 10A @ 227V, 20A @ 125 VAC
• Terminals [Specifications]: Flat
• Stem Length [Specifications]: 0.469"
• Contact Form [Specifications]: DPDT
• Actuator Length [Specifications]: 0.65"
• Switch Function [Specifications]: Momentary On/Off/Momentary On
• Voltage: 125/250 V
• Terminal Type: Screw Terminal
• Out of Package Height (in): 1.04
• Out of Package Width (in): 0.74
• Out of Package Length/Depth (in): 1.31
• Series: GSW
• Switch Type: Toggle
• Number of Poles: Double Pole
• Electrical switch type: Toggle Switch
• Number of poles: 2
• Contact Configuration: DPDT
• Temperature Rating: 75 Deg C
• Voltage Rating: 125/250 V
• Wattage Rating: 0.5 hp
• Actuation: DPDT
• Dimensions: 1.31 in L x 0.74 in W x 1.04 in H
