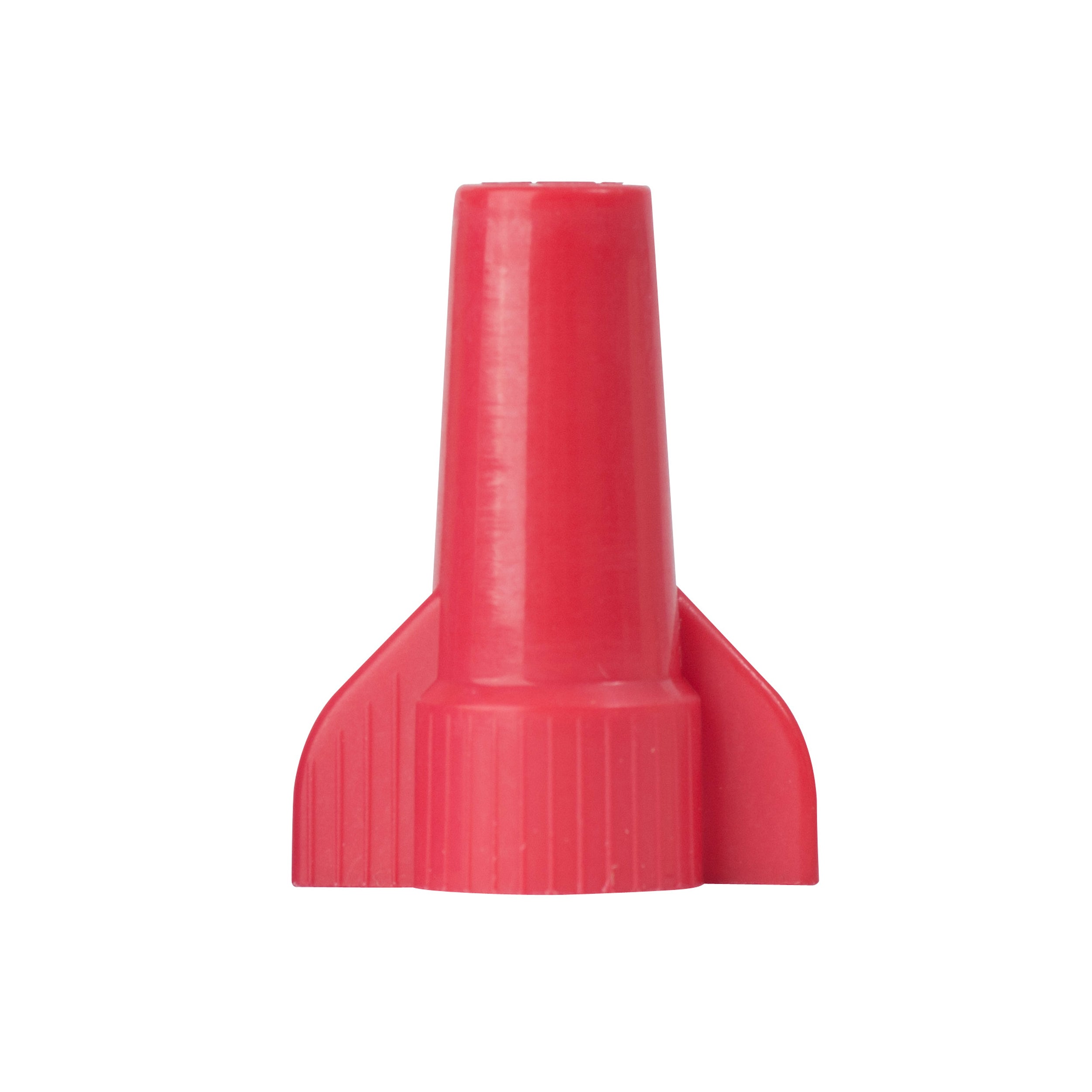

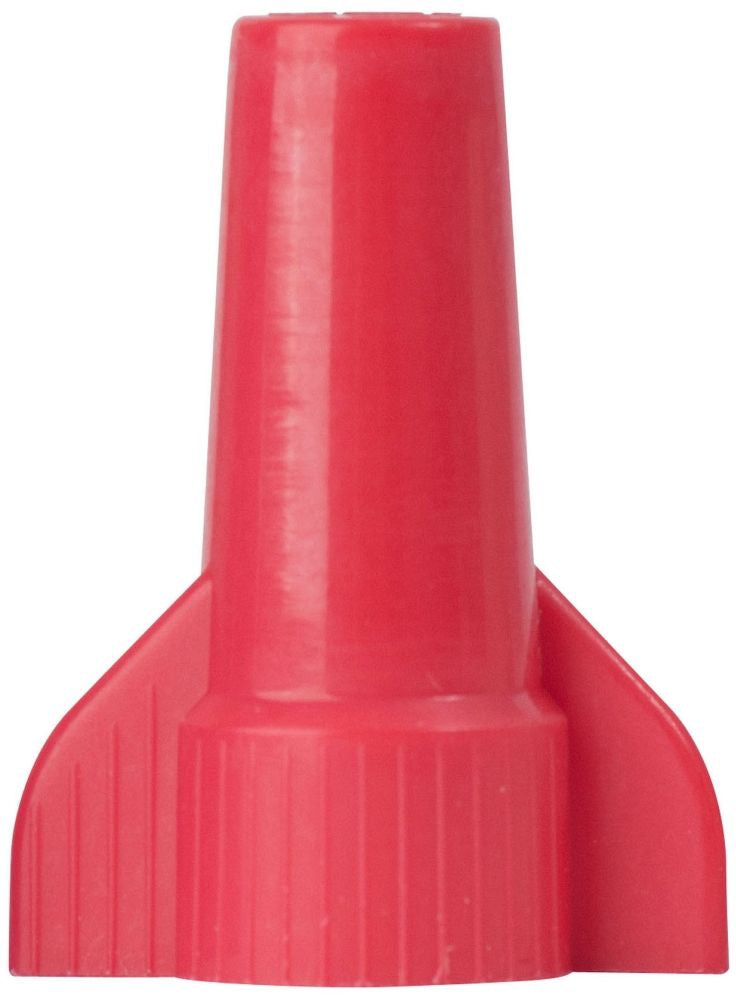

Gardner Bender 17-086 WingGard Wire Nut 18-10 AWG

Product Description

The Gardner Bender 17-086 WingGard wire nut is designed for use with wire sizes from eighteen to ten American Wire Gauge. These connectors provide a reliable twist-on mechanism suitable for various wiring tasks.

• Knurled wings enhance grip and twisting leverage.
• Square-wire spring adjusts to different splice sizes.
• Temperature resistance up to one hundred and five degrees Celsius.

Product Highlights

This connector ensures secure connections and is designed for ease of use in electrical applications.

Product Information

Standard Information

• Brand Name: WingGard
• Model: #86

Technical Specifications

• UPC: 03207617086
• Maximum Wire Combination Size: (5) #12
• Spring Type: Square Wire
• Temperature Rating: 221 DEG F
• Standard Package: 50 per bag
• Approval: UL, CSA
• Voltage Rating: 300 V; 600 V building wire; 1000 V (lighting fixture, luminaire, sign)
• Wire Type: Copper
• Minimum Wire Combination Size: (2) #14
• Height: 1.25 inches
• Length: 0.438 inches
• Width: 0.906 inches
• Housing Material: Thermoplastic
