Product Description

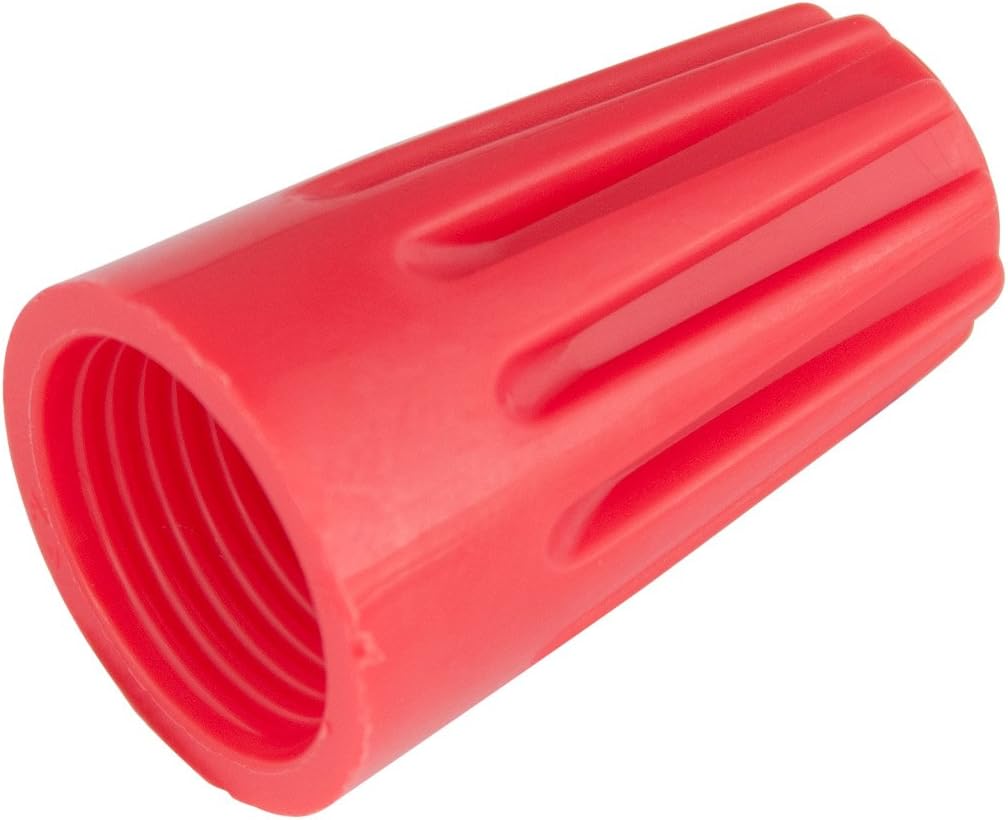

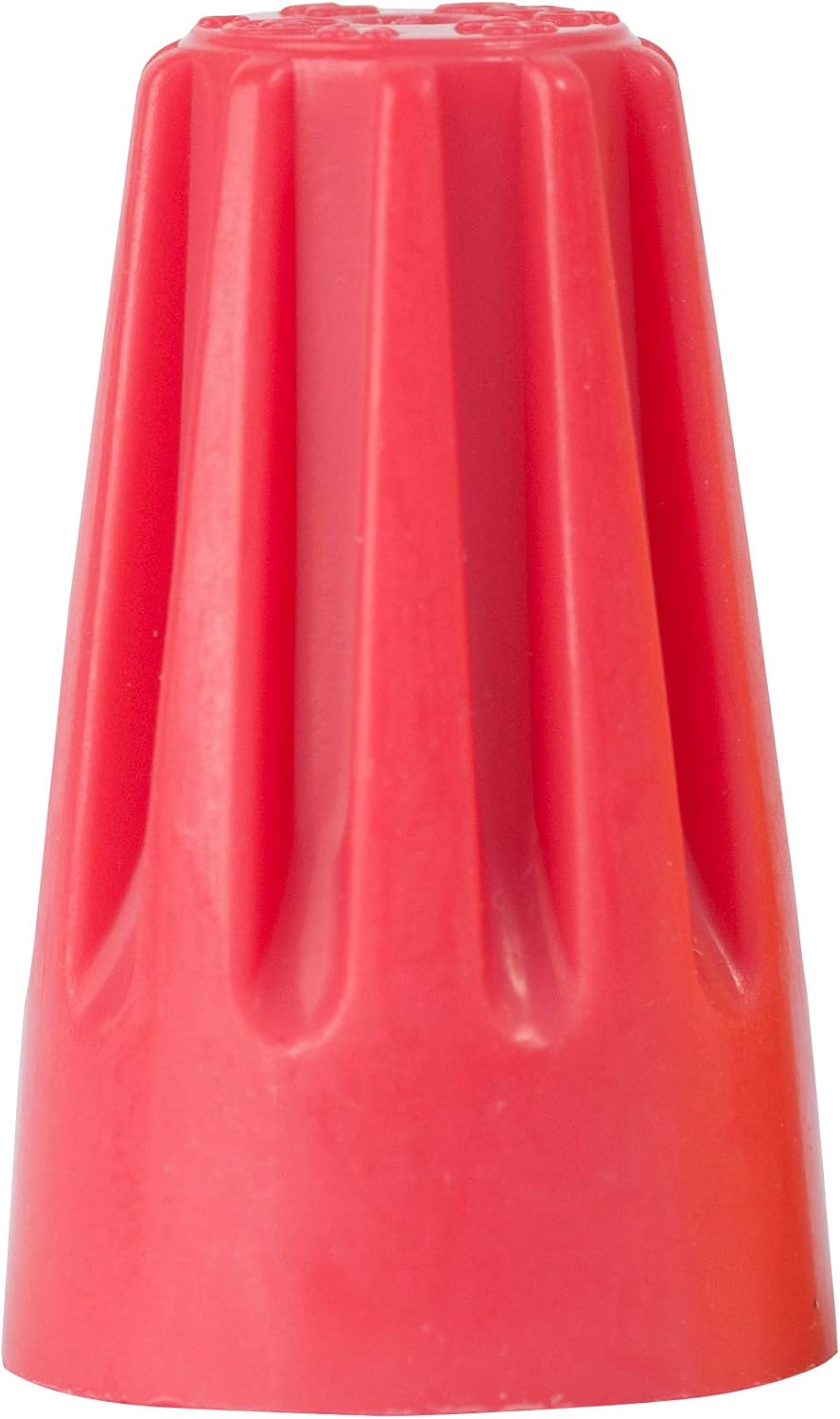

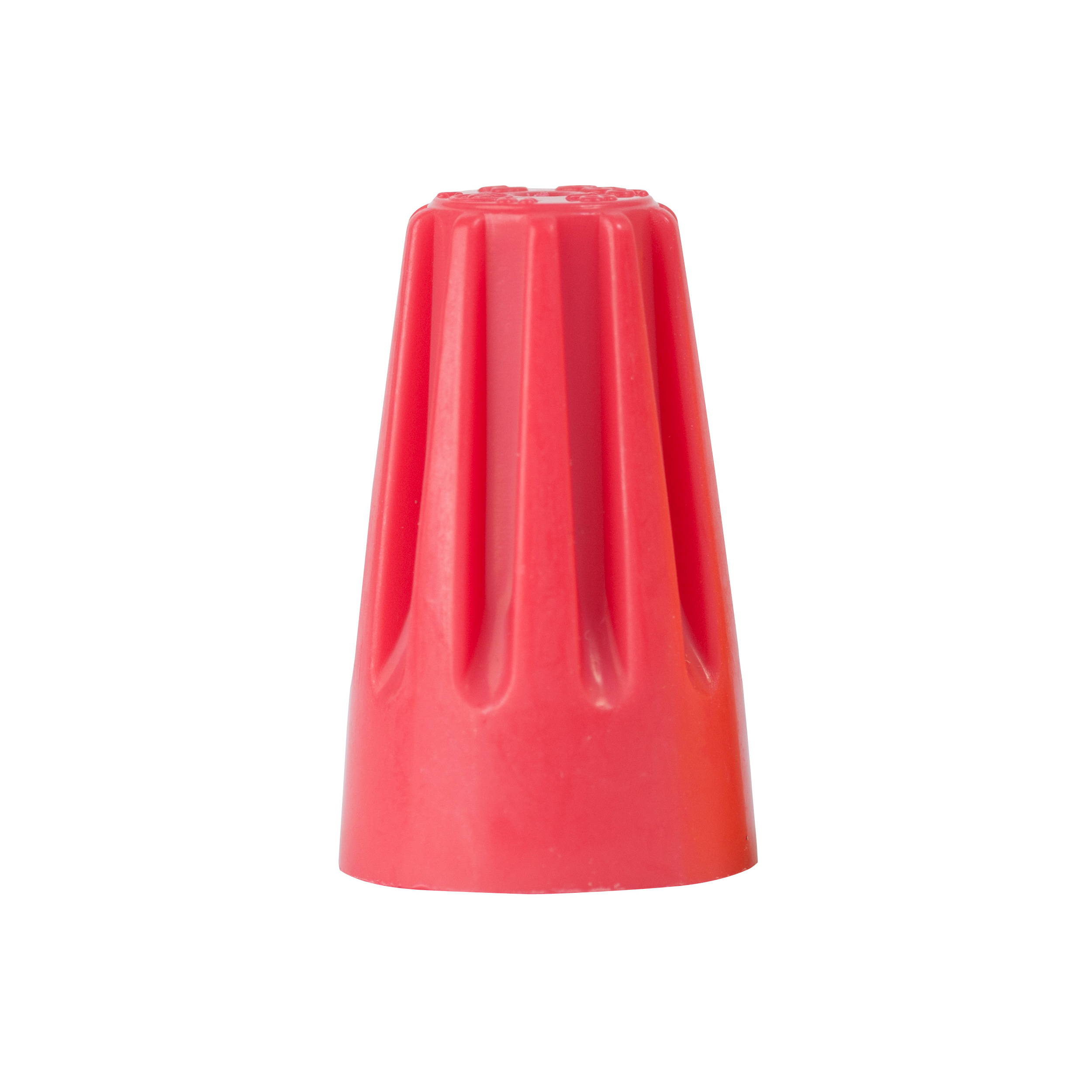

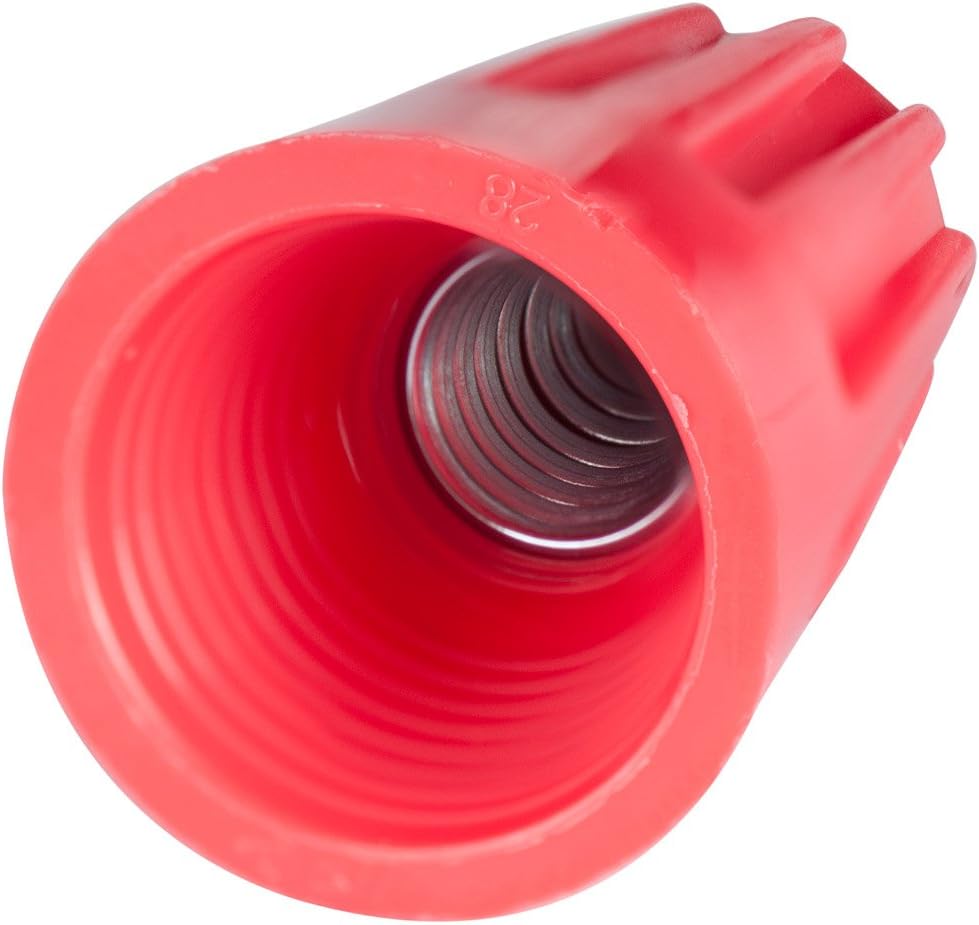

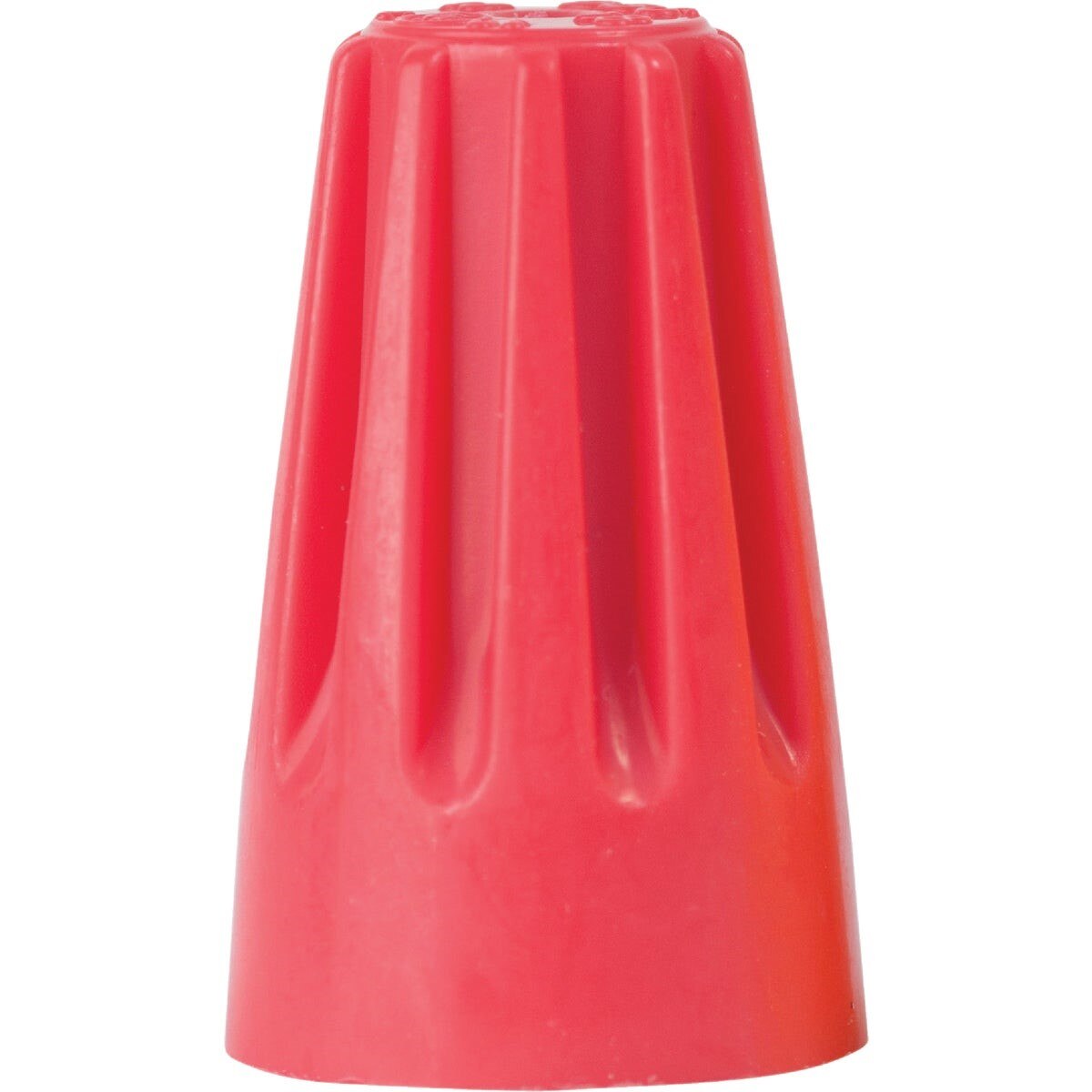

The Gardner Bender 10-006 WingGard Large Wire Connector is designed for general purpose applications requiring the connection of two or more copper wires. These connectors feature a polypropylene shell with side knurling for an easy grip and a zinc-plated inner spring to resist corrosion. They require fewer turns to meet required torque and meet or exceed UL pull out and dielectric test requirements.
- Connects 18 AWG to 8 AWG wires
- Features a straight type polypropylene shell with side knurling for an easy grip
- Flame-retardant properties resist heat distortion up to 221 degrees Fahrenheit
Product Highlights
These wire connectors are color-coded for quick size selection and have a high-dielectric shell with a deep skirt design to prevent exposure of bare wire.
Product Information
Standard Information
-
Brand: GARDNER BENDER
-
Manufacturer Part Number: 10-006
-
Country of Origin: CN
Technical Specifications
-
MPN: 10-006
-
UPCCode: 00032076100063
-
Manufacturer: GB Electrical
-
Brand: Gardner Bender
-
UOM: Box
-
Country: CN
-
Voltage: 600 Volts
-
Material: Copper
-
Maximum Voltage: 600 Volts
-
Specification Met: UL
-
Temperature Rating: 221 degree fahrenheit
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Box of 100 Red Wire Connectors
-
Width: .656 in
-
Height: 1.063 Inch
-
Length: 0.656 Inch
-
Connection Type: Screw-On
-
Type: Fluted
-
Voltage Rating: 300 V, 600 V Building Wire, 1000 V (Light Fixture, Luminaire, Sign)
-
Wire Type: Copper (Solid/Stranded)
-
Wire Size: 18 to 10 AWG
-
Minimum Wire Combination Size: (2) #14
-
Maximum Wire Combination Size: (2) #10, (2) #12
-
Shell Material: Thermoplastic
-
Standard Package: 100 per Box
-
Approval: UL (Canada and US), CSA
-
Housing Material: Polypropylene
-
Application: General Purpose
-
Model: GB-6
-
Number of Items: 100
-
Global Trade Identification Number: 00032076100063
-
Unit Count: 100.0 Count
-
Part Number: 10-006
-
Size: 100 Pack
-
Item Package Quantity: 1
-
Shell Style: Ribbed
-
Wire Comb Min: 2 #14
-
Wire Comb Max: 2 #10 & 2 #12
-
Contact Coating: Zinc
-
Mounting Type: Screw
