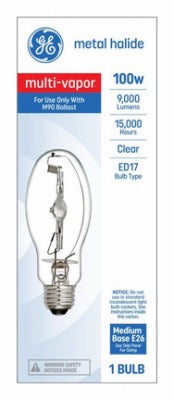

G E Lighting 18680 100W Metal Halide Bulb BD17 Medium Base

Product Description

The G E LIGHTING 18680 is a 100-watt Multi Vapor metal halide lamp designed for commercial and industrial lighting applications that require high-intensity discharge output. Built in a BD17 bulb shape with a medium base, this lamp delivers 9,000 lumens at a color temperature of 3,200 Kelvin, producing a warm white light output with a Color Rendering Index of 70. Rated for 15,000 hours of service life, it is suited for fixtures in warehouses, retail spaces, gymnasiums, and outdoor area lighting. A separate compatible ballast is required for operation.

This lamp is intended for use in metal halide luminaires that accept a medium base BD17 configuration. Typical installations include commercial interior high-bay fixtures, wall packs, and flood light housings. The 3,200K color temperature and 70 CRI make it appropriate for general illumination where color accuracy is secondary to light output and long service intervals. Electricians and lighting contractors handling HID lamp replacement or new fixture installations are the primary installers for this lamp type.

Key Features

• 100-watt input wattage with 9,000-lumen output for high-intensity discharge performance
• BD17 bulb shape with medium base for broad fixture compatibility
• 15,000-hour rated lamp life reduces replacement frequency in commercial settings
• 3,200 Kelvin color temperature produces warm white output
• CRI of 70 suitable for general commercial and industrial illumination
• Requires a separate ballast — not for use in standard incandescent sockets

Compatibility

Designed as an OEM-style replacement lamp for metal halide luminaires accepting a BD17 bulb shape with a medium base and rated for 100-watt HID operation. A compatible metal halide ballast must be installed and matched to the lamp wattage before use.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements for high-intensity discharge lighting circuits. Always de-energize the fixture and allow the existing lamp to cool completely before handling, as HID lamps operate at high surface temperatures. Avoid touching the lamp envelope with bare hands, as skin oils can create hot spots that reduce lamp life. Verify ballast compatibility with the 100-watt rating before installation.
