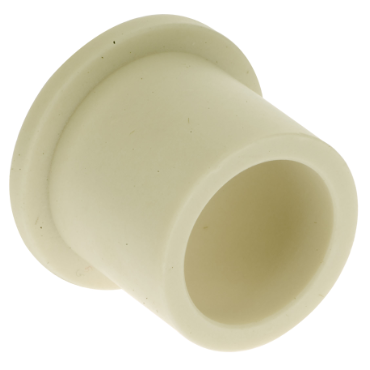

Furon BJ7F061004 BJ7 Series PTFE Bushing each

Product Description

The Furon BJ7F061004 is a BJ7 Series PTFE bushing designed for reliable performance in various applications. It features a round bore, making it suitable for many industrial needs. This bushing is constructed with JLON 7000 material, which offers excellent chemical resistance and durability.

• Dimensions: Three-eighths inch inner diameter (ID), five-eighths inch outer diameter (OD), half-inch length
• Maximum temperature resistance of five hundred fifty degrees Fahrenheit
• Includes flange for secure mounting

Product Highlights

The BJ7F061004 is ideal for use in environments where durability and reliability are essential. This bushing can withstand high temperatures, making it suitable for demanding applications.

Product Information

Standard Information

• Brand: Furon
• Part Number: 102054304

Technical Specifications

• Inner Diameter (ID): 3/8 inch
• Outer Diameter (OD): 0.625 inch
• Flange Thickness: 1/8 inch
• Maximum Temperature: 550 °F
• Length: 1/2 inch
• Material: JLON 7000 (PTFE)
• Bore Type: Round Bore
• Weight: 0.011 lb
• EAN or UPC: 717905199738
• Groove Type: No Groove
• Measurement System: Inch
• Has Flange: Yes
