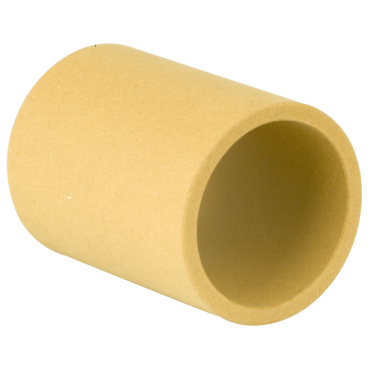

Furon BJ5S050803 BJ5 Series PTFE Bushing

Product Description

The Furon BJ5S050803 is a PTFE bushing designed for various applications. This product features a five-sixteenth inch inner diameter and a half inch outer diameter with a length of three-eighths inch. It is made from JLON 5500 material that provides durability and resistance at elevated temperatures.

• Dimensions: 5/16 inch ID x 1/2 inch OD x 3/8 inch Long
• Material: JLON 5500 (PTFE)
• Temperature range: up to 550 °F

Product Highlights

This bushing is suitable for use in environments requiring high-temperature performance. Its round bore design allows for effective fluid transport while minimizing wear and tear.

Product Information

Standard Information

• Brand: Furon
• Part Number: 102054299

Technical Specifications

• I.D.: 5/16 inch
• O.D.: 0.5 inch
• Length: 3/8 inch
• Material: JLON 5500 (PTFE)
• Weight: 0.03 LB
• Temperature Range [Max]: 550 °F
• Bore Type: Round Bore
• Has Flange: No
• Groove Type: No Groove
• I.D. Tolerance: +0.002 inch / -0.000 inch
• O.D. Tolerance: +0.002 inch / -0.000 inch
• Length Tolerance: ±0.005 inch
• EAN or UPC: 717905197925
