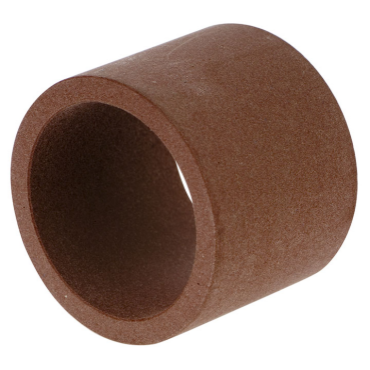

Furon BJ4S162006 BJ4 Series PTFE Bushing

Product Description

The Furon BJ4S162006 is a PTFE bushing ideal for various applications. Made from JLON 4200 material, this bushing features an inner diameter of one inch, an outer diameter of one point two five inches, and a length of three fourths of an inch. It is designed for reliable performance in demanding conditions.

• Size: 1 ID x 1 1/4 OD x 3/4 Long
• Material: JLON 4200 (PTFE)
• Max Temperature: 550 °F

Product Highlights

This bushing is suitable for applications that require high chemical resistance and minimal friction.

Product Information

Standard Information

• Part Number: BJ4S162006
• Brand: Furon

Technical Specifications

• I.D.: 1 in
• O.D.: 1.25 in
• Length: 3/4 in
• Bore Type: Round Bore
• Material: JLON 4200 (PTFE)
• Maximum Temperature: 550 °F
• Inch/Metric: Inch
• Weight: 0.03 LB
• EAN or UPC: 717905195198
• No Groove
• No Flange
• I.D. Tolerance: +0.002 in / -0.000 in
• O.D. Tolerance: +0.002 in / -0.000 in
• Length Tolerance: ±0.005 in
