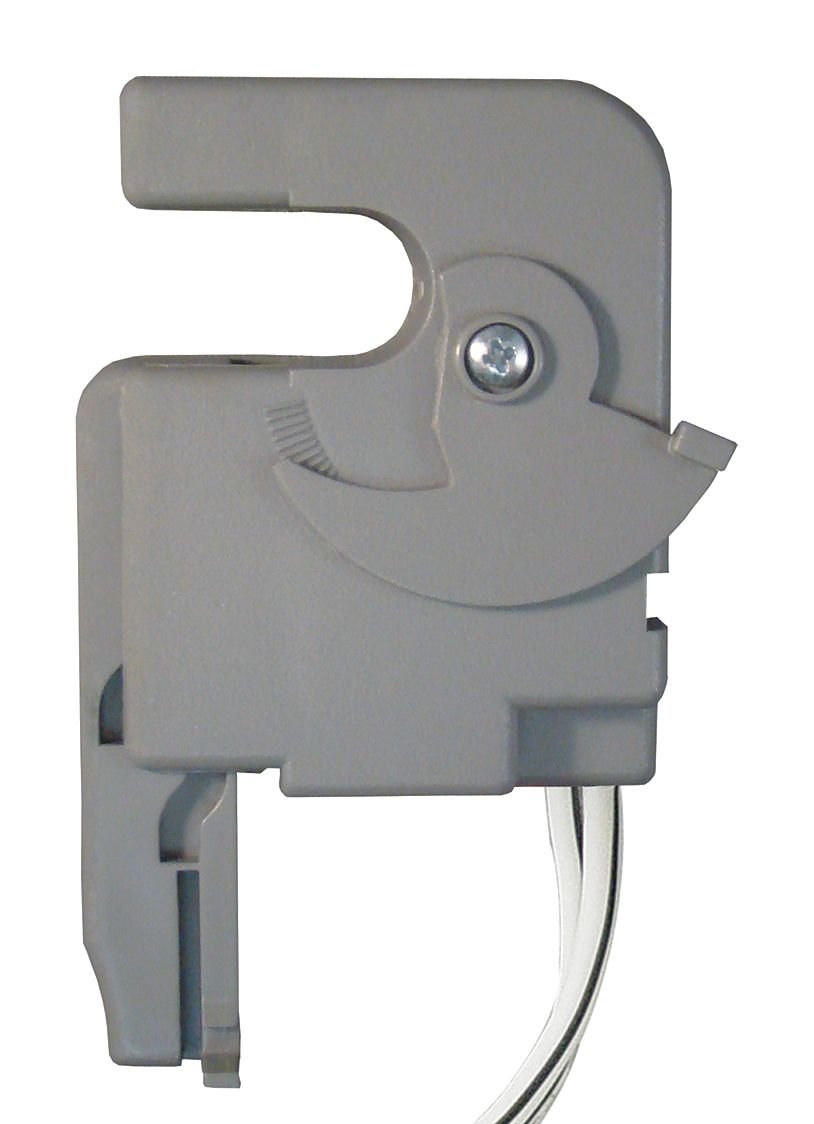

RIB RIBXGHF Current Switch 120 VAC Fixed 0.50-150 AMP

Product Description

The Functional Devices RIBXGHF is a high-quality current sensing relay designed for precise monitoring of electric currents within industrial applications. It features a split-core design and is perfect for integration into a wide range of electrical systems. This product ensures reliable operation in environments ranging from -30 to 140 degrees Fahrenheit and is equipped with wire leads for straightforward installation.

• Split-core design for easy installation around existing conductors.
• Operational range from 0.50 to 150 amps, accommodating a variety of industrial applications.
• Rated for 120 VAC, suitable for most commercial and industrial settings.

Product Highlights

The RIBXGHF model offers a fixed trip point and is UL Listed, ensuring compliance with stringent safety standards. It provides a straightforward solution for monitoring current flow and activating connected devices.

Product Information

Standard Information

• Brand: Functional Devices
• Model: RIBXGHF

Technical Specifications

• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95% (noncondensing)
• Max Sense Voltage: 600 VAC
• Mounting/Installation: Removable mounting tab provided
• Approvals: UL Listed, UL916, C-UL
• Contact Status: Current below threshold: Open, Current above threshold: Closed
