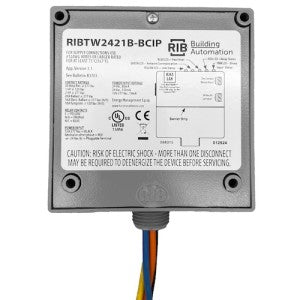

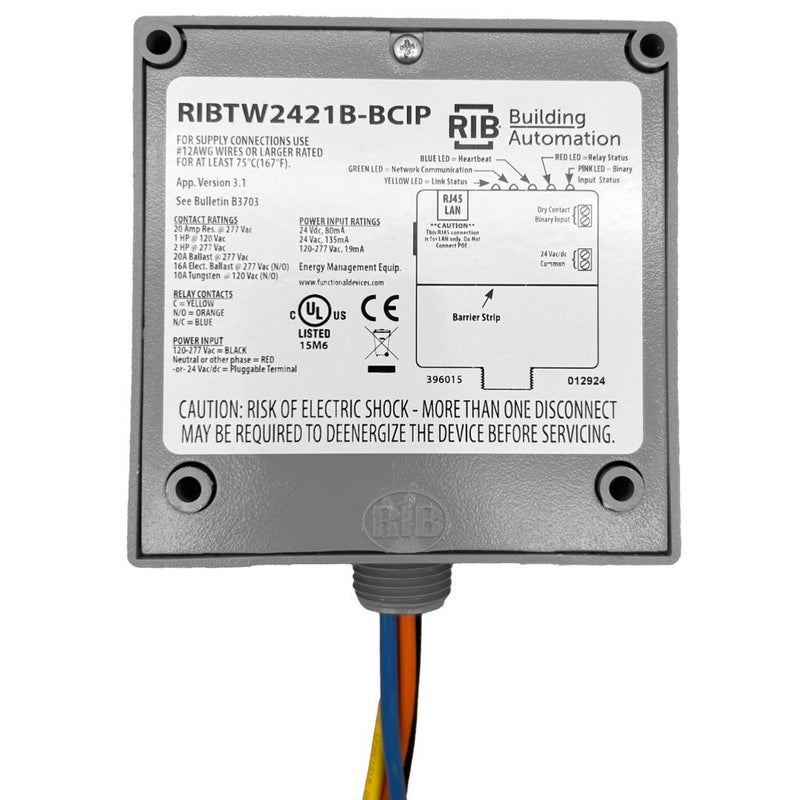

Functional Devices RIBTW2421B-BCIP BACnet/IP Network Relay

Product Description

The Functional Devices RIBTW2421B-BCIP is a BACnet/IP network relay device ideal for managing building automation systems. It features one binary output and one binary input, supporting a variety of control tasks. The device is crafted with a 20 Amp rated relay, making it suitable for load control. A dry contact input allows for feedback status when linked to a current sensor. This unit comes in a NEMA 1 enclosure, enhancing safety and durability, while built-in LEDs provide local monitoring of status.

• Includes one SPDT continuous duty coil.
• Features DIP switch control for relay override.
• Designed for seamless integration with BACnet MS/TP networks.

Product Highlights

This relay supports multiple input voltages and offers extensive operational capabilities, making it a reliable choice for networked environments.

Product Information

Standard Information

• Manufacturer: Functional Devices
• Series: Functional Devices

Technical Specifications

• MPN: RIBTW2421B-BCIP
• Application: BACnet IP Network Relay Device
• Input Voltage: 24 VAC/VDC, 120-277 VAC
• Contact Type: SPDT
• Contact Form: 1 Binary Output plus Override
• Current Rating: 20 A
• Enclosure Rating: NEMA 1
• Mounting Type: 1/2 Inch NPT Hub
• Indication: LED
• Number of Relays: 1
• Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140°F
• Humidity Range: 5 to 95% (non-condensing)
• Operate Time: 18ms
• Network Media: Twisted Pair 22-24AWG, shielded recommended
• Relay Override Switch: DIP Switch Control
