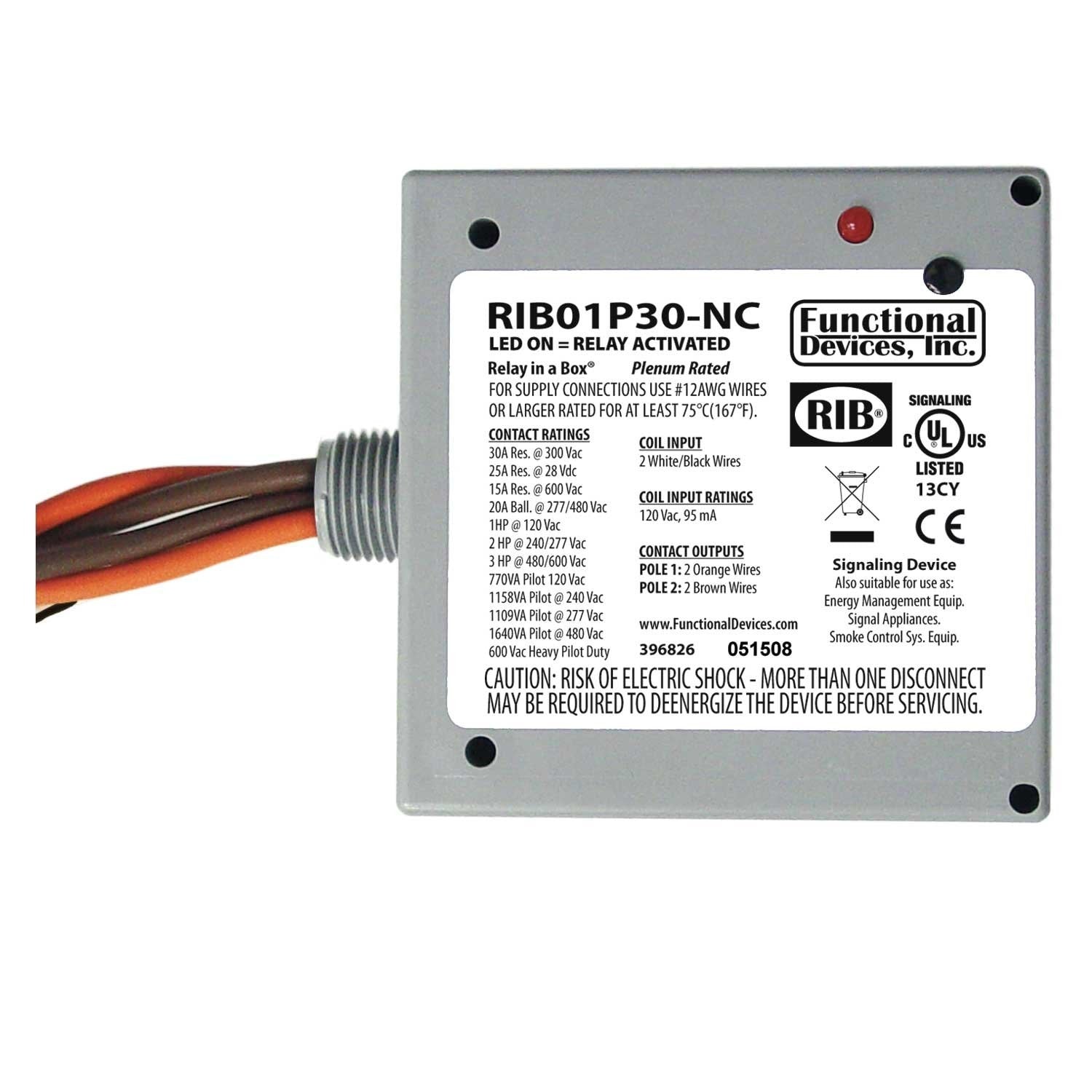

Functional Devices RIB01P30-NC Enclosed Power Relay 30 Amp (1 Pack)

Product Description

Functional Devices RIB01P30-NC is an enclosed power relay with a 120 VAC coil and DPST normally closed contacts rated for 30 A. The device is housed in a NEMA 1 enclosure and provides screw terminal or pre-wired connections with 16 AWG wiring for control and switching of resistive, motor, and lighting loads. Operating range is -30 to 140 F and 5 to 95% noncondensing humidity.

• DPST (double pole single throw) normally closed contacts, 30 A contact rating, silver alloy contacts
• 120 VAC coil, 50/60 Hz, low coil current, 18 ms operate time
• NEMA 1 enclosed housing with LED status indicator, screw terminals, 16 AWG wire, 1/2 and 3/4 inch NPT conduit hubs

Product Highlights

Enclosed 30 A DPST-NC relay with 120 VAC coil, LED status indicator, NEMA 1 housing, -30 to 140 F operating range

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIB01P30-NC
• Country of Origin: United States
