Product Description

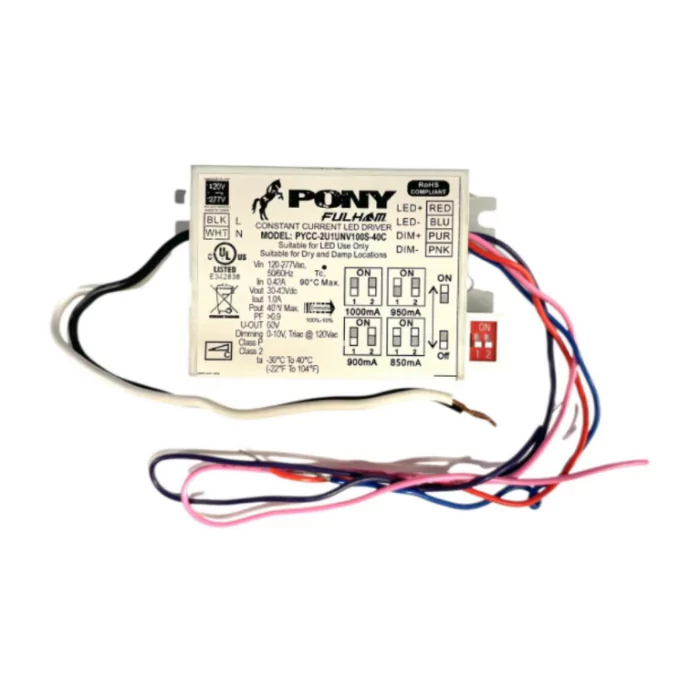

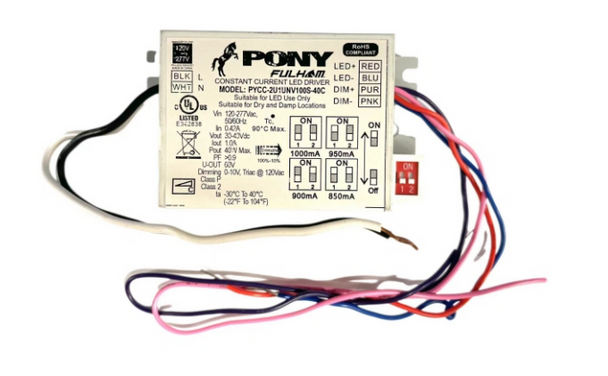

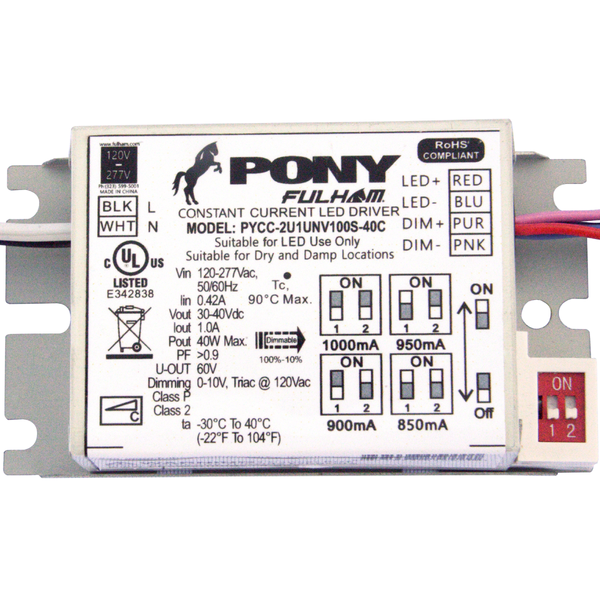

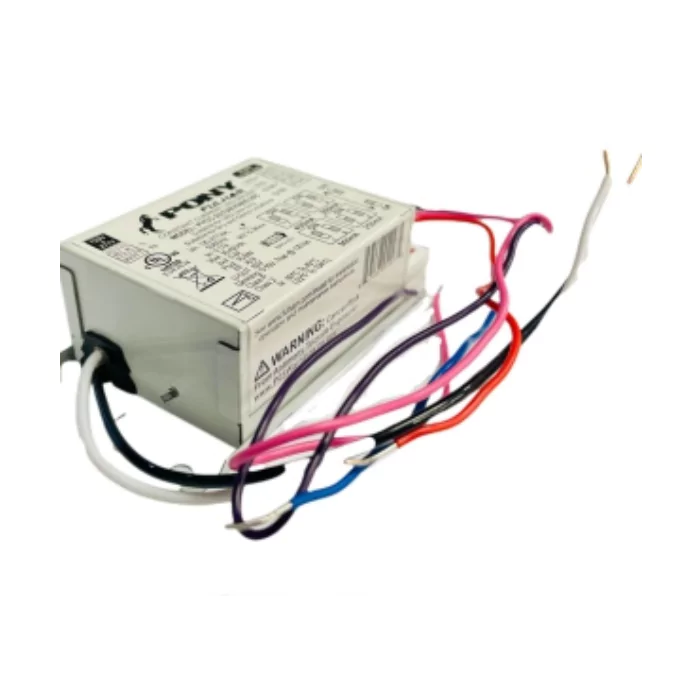

The FULHAM PYCC-2U1UNV100S-40C Pony Compact Constant Current LED Driver provides up to 40W of power output with a universal 120V-277V input. This driver features selectable fixed output current at 850mA, 900mA, 950mA, or 1000mA, and an output voltage range of 30-40VDC. It is dimmable from 10%-100% using 0-10V Analog & Phase@120V.
- Field Adjustable Current (Lumen) Output
- Dimmable 10%-100%, 0-10V Analog & Phase@120V
- Compact form factor
Product Highlights
This Fulham LED driver is ideal for LED lighting applications requiring a selectable constant current output and dimming capabilities.
Product Information
Standard Information
-
Brand: FULHAM
-
Manufacturer Part Number: PYCC-2U1UNV100S-40C
Technical Specifications
-
Fixture Type: LED
-
Driver Type: Constant-Current-Field-Select
-
Input Voltage: 120-277V AC
-
Max Output Power: 40W
-
Max Output Current: 850mA, 900mA, 950mA, 1000mA
-
Max Output Voltage: 40V
-
Dimming: Analog (0-10V), Phase
-
Location Rating: IP20
-
UL Class: Class 2
-
Case Size: 10
-
Life (hrs): 50,000
-
Order Code: PYCC-2U1UNV100S-40C
-
Output Current: 850 / 900 / 950 / 1000 mA
-
Watts: 40
-
Brand: Fulham
-
LED Type: Constant Current
-
Certifications: RoHS Compliant cULus Listed
-
Class: Class 2
-
Dimmable: Yes
-
Dimming Type: 0-10v
-
Mfg #: PYCC-2U1UNV100S-40C
-
Power Supply Applications: LED Lighting
-
Output Voltage Max: 40V
-
LED Driver Mode: Constant Current
-
Input Voltage Min: 120V
-
Input Voltage Max: 277V
-
Family: Pony
-
IP Rating: IP-20
-
Maximum Wattage: 40 Watt
-
Ratings and Certifications: Damp Location / UL
-
Mounting: Remote Mount/Side Leads
-
Surge Protection: 2.5kV
-
Output Voltage: 30-40 Volt
-
Efficiency: up to 85%
-
Power Factor: >.90
-
Type: Constant Current/Selectable
-

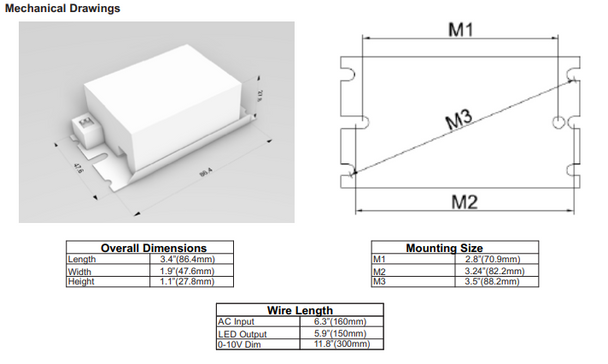

Length: 3.4 in.
-
Height: 1.1 in.
-
Width: 1.9 in.
-
Current Type: Switchable
-
Min Output Current: 850mA
-
Min Output Voltage: 30
-
Technology: LED
-
Avg. Life (Hours): 50000
-
Max Operating Temp: 104 F (40 C)
-
Min Operating Temp: -22 F (-30 C)
