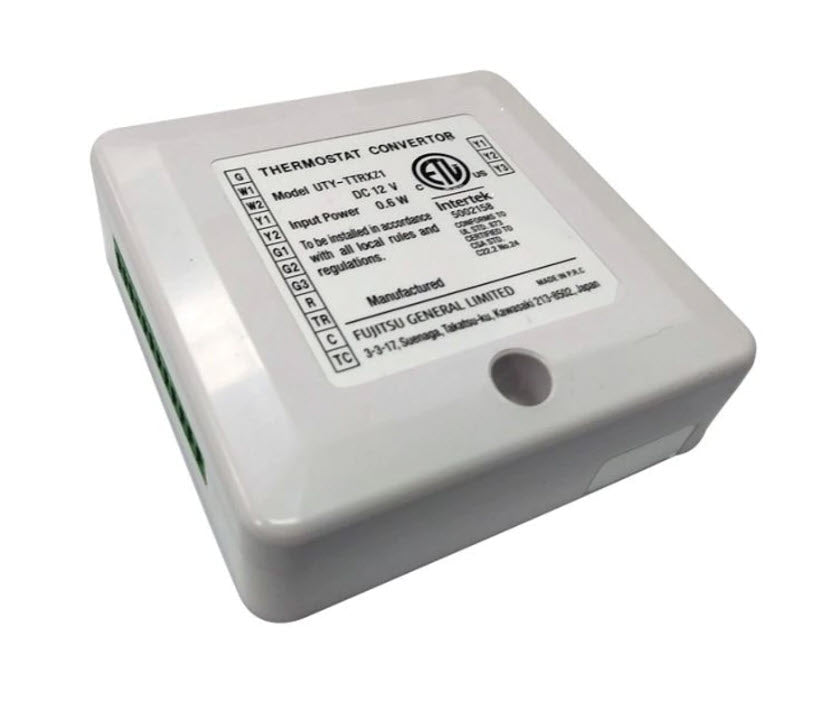

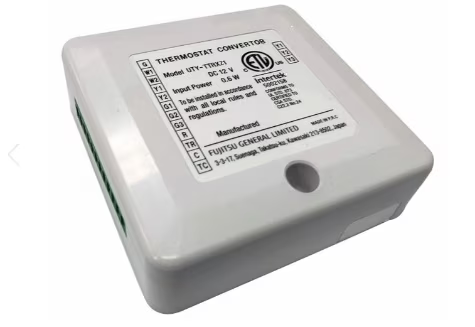

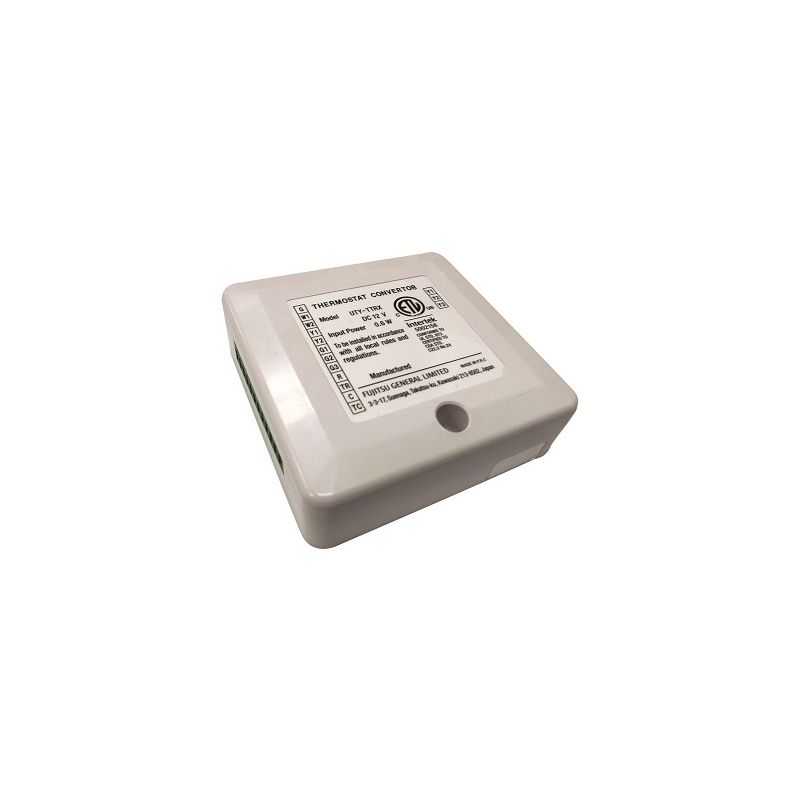

Fujitsu UTY-TTRXZ1 24V Thermostat Interface

Product Description

The Fujitsu UTY-TTRXZ1 24V Thermostat Interface allows Halcyon products to be controlled using a third party thermostat. This adapter allows up to 16 indoor units to be controlled by a third-party thermostat like a Honeywell or Nest. A field supplied 24v transformer is required for installation (not included).

• Adapter allows up to 16 indoor units to be controlled by a third-party thermostat
• Compatible with a wide range of Fujitsu indoor units
• Allows Fujitsu indoor units to be connected to third party thermostats with 24Vac outputs, such as Honeywell, Nest, etc.

Product Highlights

The UTY-TTRXZ1 allows for the control of heating and cooling systems, including on/off control, operation mode, fan speed, and temperature.

Product Information

Standard Information

• Brand: FUJITSU GENERAL AMERICA
• Manufacturer Part Number: UTY-TTRXZ1

Technical Specifications

• SKU: UTY-TTRXZ1
• Brand/Manufacturer: Fujitsu
• Electrical: .6 Watts
• Multi-speed fan control: true
• Operating Temperature Range: 32-114 F
• Storage Temperature Range: 14-140 F
• Humidity Range: 0-95%
• Power Rating: 0.6 W
• Product Type: Air Conditioner Parts & Accessories
• Voltage Rating: 12 V
• Max Power Consumption: .6 W
