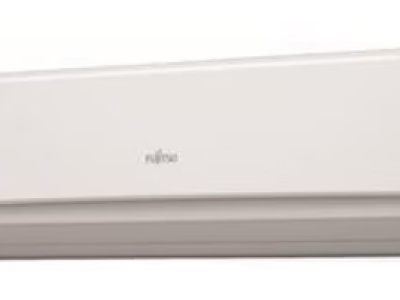

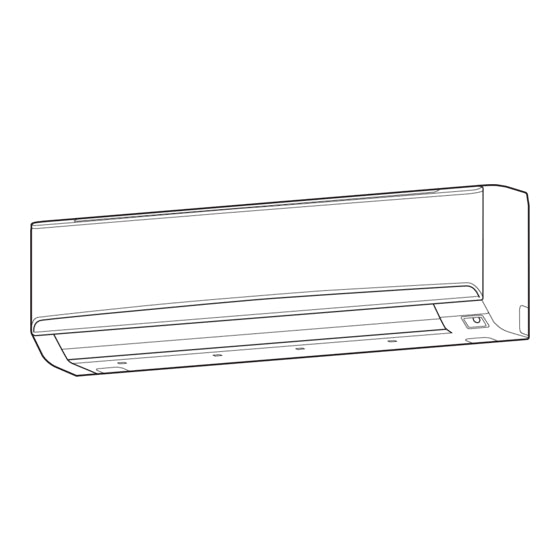

Fujitsu ASUA36TLAV2 Airstage 2-3/4 Ton VRF Heat Pump Wall Mount Indoor Unit

Product Description

The Fujitsu ASUA36TLAV2 Airstage VR-II system offers simultaneous cooling and heating using variable refrigerant flow (VRF) technology. This system has a lower life cycle cost due to its energy efficiency and features that make it easy to design, install, and maintain. Advanced controls react quickly to demand changes to maintain a comfortable climate. Airstage heat recovery systems extract heat from rooms or zones that require cooling and transfer it to rooms or zones that require heating, optimizing energy efficiency.

• Wired or wireless remotes are not included
• 2-3/4 ton cooling capacity - 38,000 BTU's heating capacity
• Three speed fan: 954 CFM, 660 CFM and 524 CFM

Product Highlights

This wall mounted system delivers high-capacity heating and cooling with a streamlined design. It improves air quality by neutralizing odors and reducing airborne pollutants. Designed for 2-wire remotes, ensuring simplified installation and reliable control.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ASUA36TLAV2
• Country of Origin: TH

Technical Specifications

• Nominal cooling: 34000
• Nominal Heating: 38000
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• Suction Line Size: 5/8
• Liquid Line Size: 3/8
• Configuration: Wall Mounted
• Indoor/Outdoor: Indoor
• Voltage Rating: 208-240 VAC
• Heating Capacity: 38 Kbtu/hr
• Cooling Capacity: 36 Kbtu/hr
• Series: ASUA
• Domestic/Import: Import
• Flow Rate: 524, 659, 954 cfm
• Mounting Type: Wall
• Nominal Capacity: 36000 Btu/hr
• Power Source: 208 to 230 V, 1 ph, 60 Hz
• Sound Level: 39, 47, 55 dBA
• Type: Compact
• Brand: Airstage
• Manufacturer: Fujitsu General
• Manufacturer Part Number: ASUA36TLAV2
