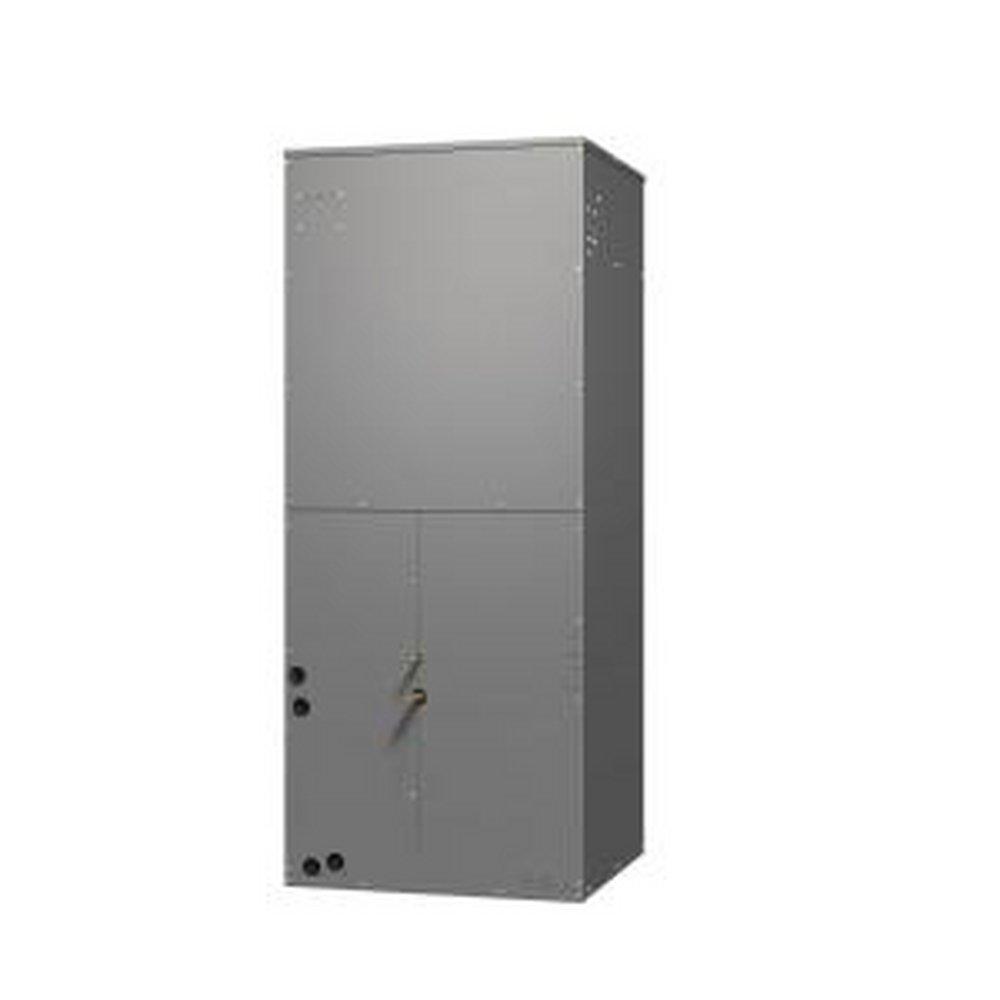

Fujitsu ARUX60TLAV2 Airstage 5 Ton Multi-Position Air Handler

Product Description

The Fujitsu ARUX60TLAV2 Airstage Air Handler is a 5 ton multi-position unit suitable for various applications. Features a modular design for up, left, and right configurations. It has indoor unit sound levels as low as 33 dB(A) and airflow up to 1700 CFM. Designed for use with VRF systems, offering both cooling and heating.

• Modular design; up, left, and right configurations
• Indoor unit sound levels as low as 33 dB(A)
• Airflow up to 1700 CFM

Product Highlights

Multi-position air handler with a compact footprint and quiet operation. Ideal for residential and light commercial applications.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ARUX60TLAV2
• Country of Origin: US

Technical Specifications

• Configuration: Multiposition
• Electrical Designation: 1-60-208/240
• Refrigerant: R410A
• Heating: Heat Pump
• Suction Line Size: 5/8
• Liquid Line Size: 3/8
• Length (inches): 21.75
• Height (inches): 58.75
• Width (inches): 24.50
• Building Type: Commercial
• Type: Heat Pump
• Nominal Capacity: 5 ton
• Cooling Capacity: 60 Kbtu/hr
• Series: ARUX
• Flow Rate: 1340, 1550, 1700 cfm
• Heating Capacity: 67000 Btu/hr
• Power Source: 208 to 230 V AC, 1 ph, 60 Hz
• Material: Painted Galvanized Steel Sheet
