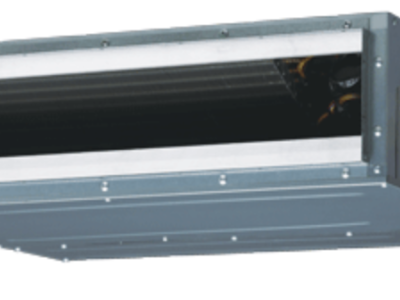

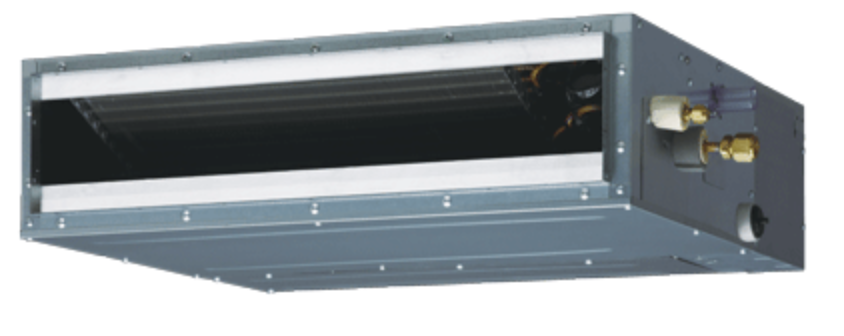

Fujitsu ARU7RLF Ductless Mini-Split Indoor Ducted 7k Cool/8k Heat 208/230/1 Multi-Zone Heat Pump R410A

Product Description

The Fujitsu ARU7RLF is a ductless mini-split indoor unit designed for multi-zone systems. It uses thin copper tubing to pump refrigerant directly to discreet wall mounted or concealed units. Capable of cooling, drying, and heating operations, this concealed duct indoor unit installs easily in ductwork and has low operating sound levels. The unit also features a dry mode that dehumidifies your zone.

• Capable of cooling, drying, and heating operations.
• Installs easily in ductwork with no visible profile.
• Features a condensate pump to remove condensation build-up.

Product Highlights

This Fujitsu mini-split offers efficient cooling and heating for year-round comfort. Its quiet operation and dehumidifying capabilities make it a versatile choice for any home.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ARU7RLF
• Country of Origin: China

Technical Specifications

• Cooling BTU: 7000
• Heating BTU: 7000
• Voltage: 208/230
• Refrigerant: R410A
• Mounting Style: Ducted
• Product Category: Mini Split System Components
• Type: Concealed Duct
• Product Line: Halcyon HFI
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-410A
• Indoor Unit Size(s): 7
• Installation Location: Indoor
• Cooling Capacity: 7000 BTU
• Maximum Air Flow: 324 CFM
• Minimum Air Flow: 259 CFM
• Minimum Sound Level: 24 dB
• Maximum Sound Level: 28 dB
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 7 13/16 Inches
• Product Width: 27 9/16 Inches
• Product Depth: 24 7/16 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• Nominal cooling: 7000
• Nominal Heating: 7000
• Electrical Designation: 1-60-208/230
• Suction Line Size: 3/8
• Liquid Line Size: 1/4
• Length (inches): 24.4375
• Height (inches): 7.8125
• Width (inches): 27.5625
• Thermostat: Remote
• Configuration: Concealed Duct
• Hertz: 60
• SEER: 21.5
• CFM: 324
• Connection: 1/4" X 3/8" Flare
• Cooling BTU's: 7,000
• Heating BTU's: 8,100
• Brand: Fujitsu
• MPN: ARU7RLF
• GTIN: 0099461143814
• UPC: 0099461143814
• eBay Product ID (ePID): 3060330273
• Heating System: Heat Pump
• Model: ARU7RLF
• Volts: 208-230
• Features: Indoor, Outdoor
