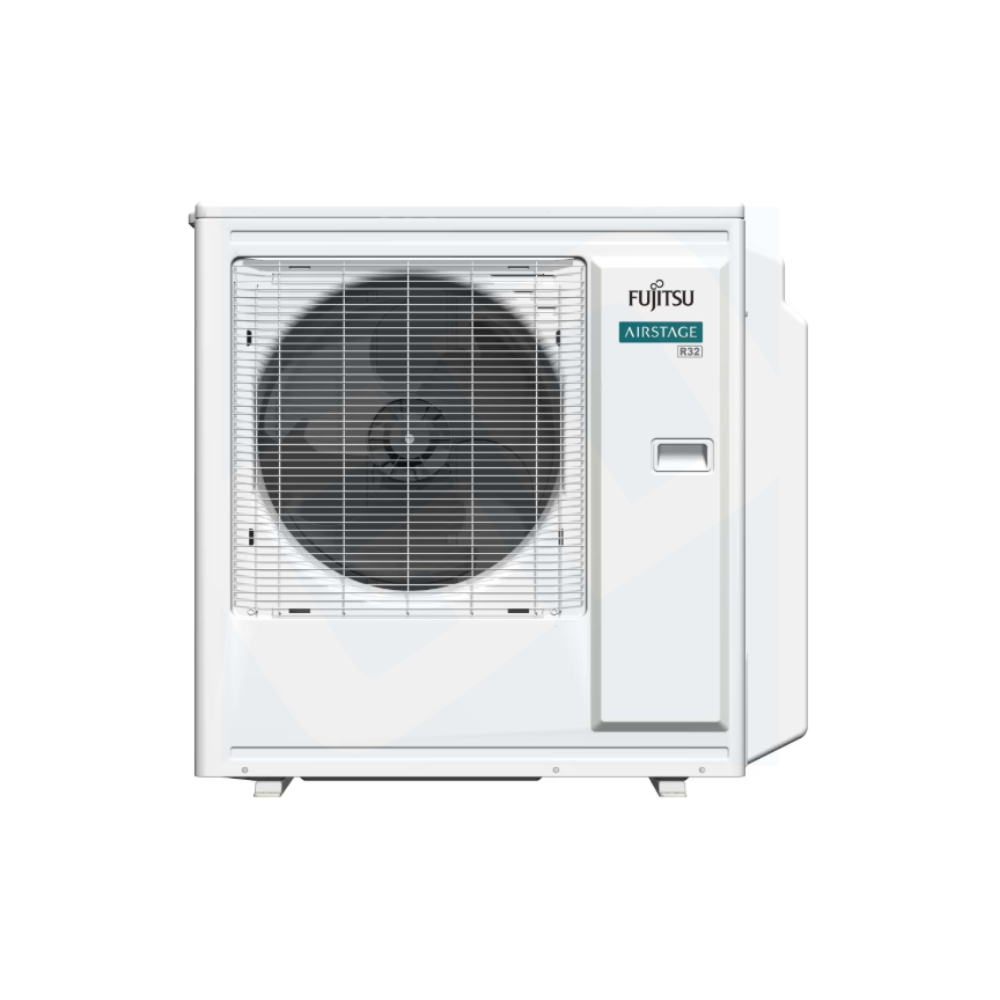

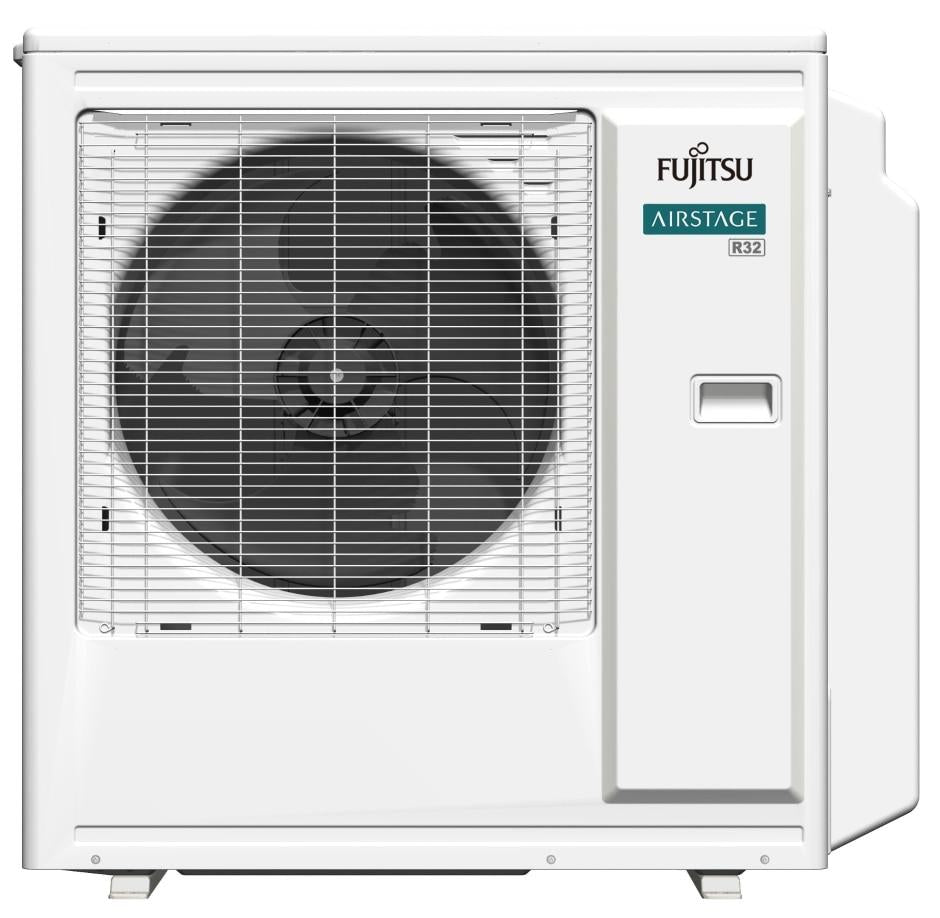

Fujitsu AOUH24KWAH3 3-Zone 24,000 BTU Extra Low-Temperature Multi-Zone Outdoor Unit

Product Description

The Fujitsu AOUH24KWAH3 3 Zone 24,000 BTU Extra Low Temp Multi-Zone Outdoor Unit is designed to run up to 3 indoor units at once in a multi-zone application. Operates down to -15 F and features a built in base pan heater. It uses R-32 refrigerant.

• Supports connection of up to 3 indoor units.
• Operates efficiently with heating down to -15°F and cooling up to 122°F.
• Features a built-in base pan heater to prevent ice buildup.

Product Highlights

This Fujitsu multi-zone outdoor unit offers efficient heating and cooling, even in extreme temperatures. It supports multiple indoor units and ensures reliable operation with its built-in safety features.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH24KWAH3

Technical Specifications

• Unit Type: Fujitsu Multi-Zone Outdoor Unit
• Product Line: Extra Low-Temperature
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 3
• Unit Size: 24,000 BTU
• Refrigerant Type: R-32
• Outdoor Unit: AOUH24KWAH3
• Rate Capacity Cooling/Heating: 22,000 / 25,000 BTU
• Heating Operating Range (F): -15 to 75
• Cooling Operating Range (F): 14-115
• SEER2 Rating (Non-Ducted, Ducted, Mix): 23.5, 20.5, 22
• EER2 (Non-Ducted, Ducted, Mix): 13.5, 12.5, 13
• HSPF2 (Non-Ducted, Ducted, Mix): 10.3, 9, 9.7
• COP (Non-Ducted, Ducted, Mix): 4.7, 4.2, 4.44
• Liquid Line Sizes: Ø1/4 (Ø6.35) × 2+Ø1/4 (Ø6.35) × 1
• Suction Line Sizes: Ø3/8 (Ø9.52) × 2+Ø1/2 (Ø12.70) × 1
• Cooling dB: 50
• Heating dB: 52
• Connectable Indoor Units: 2 or 3
• Connectable Unit Capacity: 14,000-27,000 BTU
• Sound Pressure when Cooling: 50 dB(A)
• Sound Pressure when Heating: 52 dB(A)
• Minimum Line-set Length: 16 ft
• Maximum Line-set Length: 82 ft
• Minimum Line-set Total: 49 ft
• Maximum Line-set Total: 230 ft
• Pre-Charge Length: 98 ft
• Line-set Requirements: Liquid 1/4" x 3 | Gas 1/2" x 1, 3/8" x 2
• Max Breaker Size (A): 20
• Compressor Type: Inverter Driven
• Cooling Capacity: 24000 Btu/hr
• Power Source: 208/230 V, 1 ph, 60 Hz
• Series: H-Series
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : -15 to 75 deg F
• Type: Multi Zone Outdoor Unit
• Material: Steel Sheet
• Nominal Capacity: 2 ton
