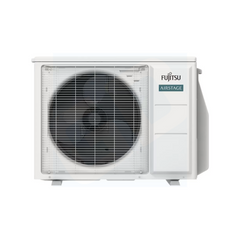

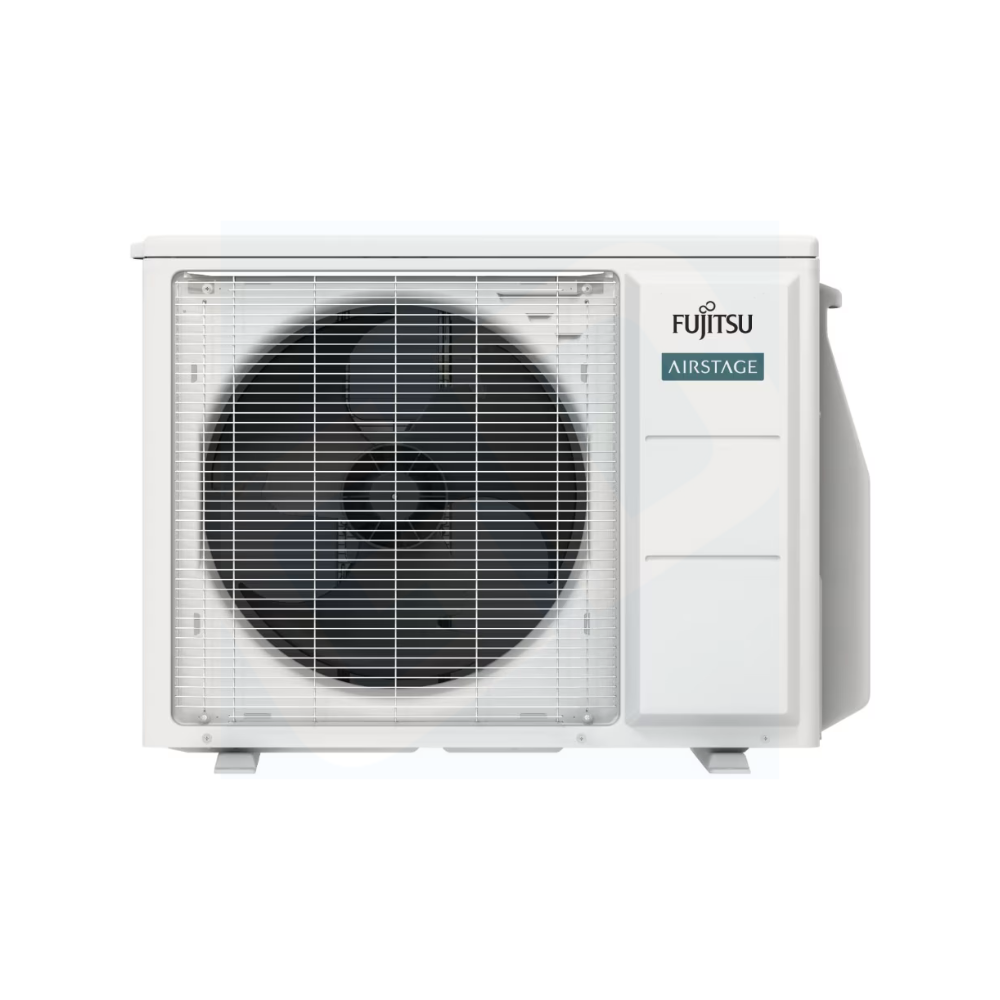

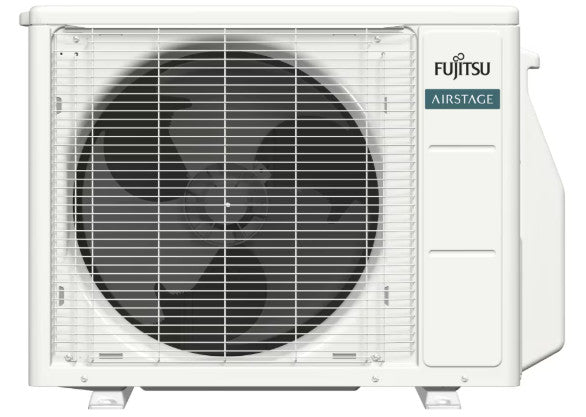

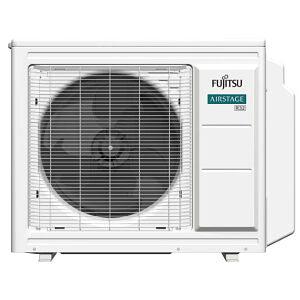

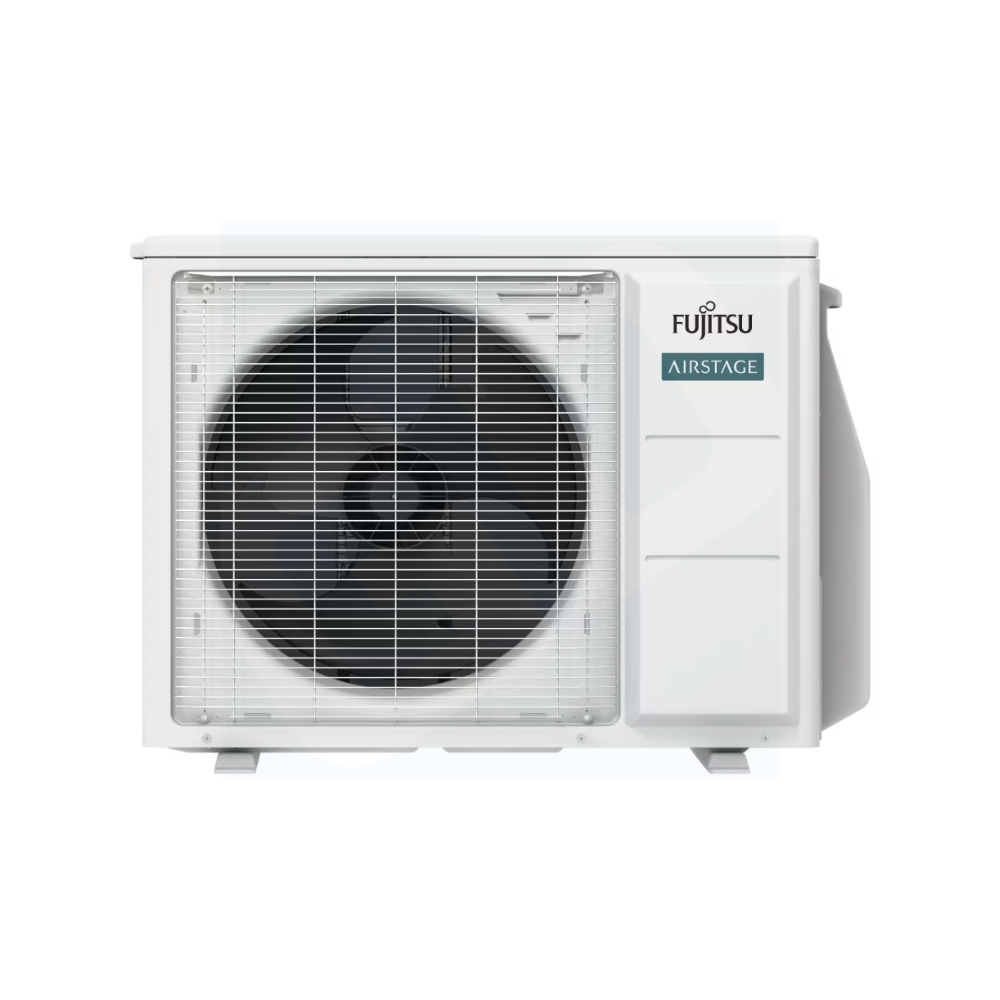

Fujitsu AOUH12KPAS1 Ductless Mini-Split Outdoor 12K Cool 1 Ton Single Zone

Product Description

The FUJITSU AOUH12KPAS1 is a Ductless Mini-Split Outdoor unit designed for efficient cooling and heating. This 1 Ton system eliminates the need for bulky ductwork by using thin copper tubing to pump R32 refrigerant directly to indoor units. It provides year-round comfort by absorbing heat from the outside air in winter and transferring it indoors, and vice-versa for cooling. With a 12000 BTU cooling capacity and 24 SEER2 rating, it offers energy-efficient performance for single zone applications.

• Eliminates need for basement or attic-located evaporator unit and bulky ductwork
• Uses thin copper tubing that pumps refrigerant directly to discreet wall mounted or concealed units inside
• Works in reverse in winter, absorbing heat from the outside air and moving it indoors to heat your home

Product Highlights

Provides efficient cooling and heating for year-round comfort with R32 refrigerant and a 24 SEER2 rating.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH12KPAS1

Technical Specifications

• Cooling Capacity: 12000 BTU
• Heating Capacity: 12000 BTU
• Input Voltage: 208/230V
• Refrigerant Type: R32
• Mounting Type: Outdoor Condenser
• SEER2 Rating: 24
• Cooling Amperage: 4.8A
• Airflow (High): 959 CFM
• Cooling Operating Temperature Range: 14 to 122°F
• EER2 Rating: 11.7
• HSPF2 Rating: 10.5
• Heating Operating Temperature Range: 5 to 75°F
• Liquid Line Connection: 1/4 inch
• Maximum Cooling Capacity: 13600 BTU
• Maximum Fuse Size: 15A
• Maximum Heating Capacity: 17000 BTU
• Maximum Piping Length: 66 ft
• Minimum Cooling Capacity: 3100 BTU
• Minimum Heating Capacity: 2700 BTU
• Minimum Piping Length: 10 ft
• Sound Pressure Level (Cooling): 48 dBA
• Sound Pressure Level (Heating): 48 dBA
• Suction Line Connection: 3/8 inch
• System Model Number: 12KPAS1
• Unit Type: Single Zone Outdoor Unit
• Compressor Type: Inverter Driven
• COP Rating: 3.8
• Airflow (Heating): 818 CFM
• Power Source: 208/230V, 60Hz
• Series: AOUH
• Sub-Brand: Airstage
• Coverage Area: 350 sq ft
