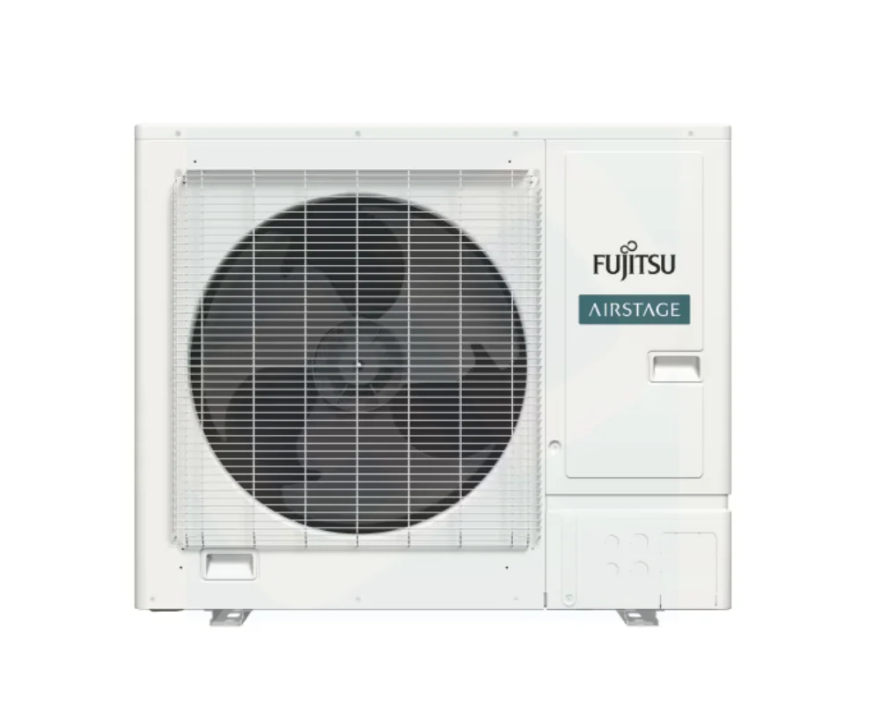

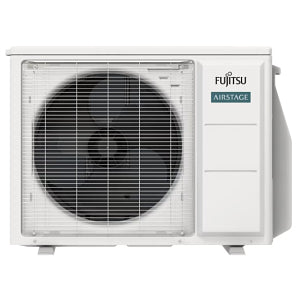

Fujitsu AOUH09KZAH1 9000 BTU High-Tier Heat Pump XLTH R32

Product Description

The Fujitsu AOUH09KZAH1 9000 BTU High-Tier Heat Pump XLTH R32 is a single zone outdoor unit with a cooling capacity of 9000 Btu/hr. It features an inverter driven compressor and operates on 208/230 V, 60 Hz power source. The unit uses R-32 refrigerant and has a temperature rating for cooling between 14 to 122 deg F and heating between -15 to 75 deg F.

• Features an inverter driven compressor
• Operates on a 208/230 V, 60 Hz power source
• Temperature rating for cooling between 14 to 122 deg F and heating between -15 to 75 deg F

Product Highlights

High-tier heat pump with impressive SEER2 and HSPF2 ratings for efficient heating and cooling.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AOUH09KZAH1

Technical Specifications

• Brand: Fujitsu
• Compressor Type: Inverter Driven
• Cooling Capacity: 9000 Btu/hr
• COP Rating: 5.34
• Discharge Line Size: 1/4 in
• EER Rating: EER2 18.8
• Flow Rate: 1089 CFM
• HSPF Rating: HSPF2 13.3
• Maximum Piping Length: 82 ft
• Nominal Capacity: 0.75 ton
• Power Source: 208/230 V, 60 Hz
• Refrigerant Type: R-32
• SEER Rating: SEER2 33.1
• Series: AIRSTAGE
• Sound Level: 46 to 47 dB
• Suction Line Size: 3/8 in
• Temperature Rating: Cooling : 14 to 122 deg F/Heating : -15 to 75 deg F
• Type: Single Zone Outdoor Unit
• MPN: AOUH09KZAH1
