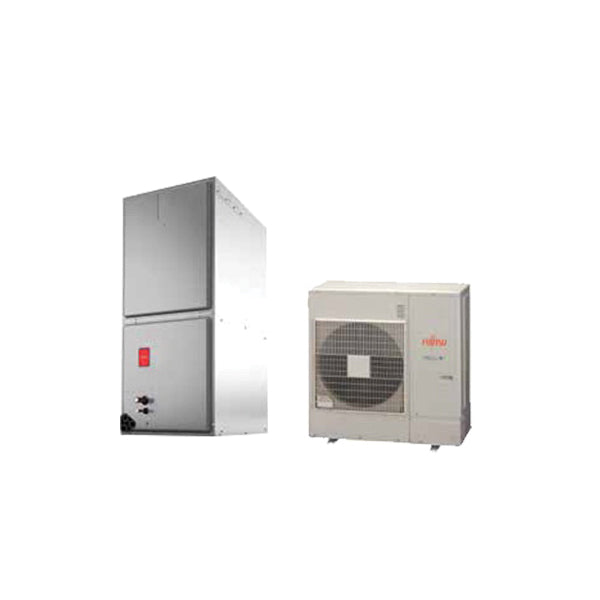

Fujitsu AOUG36LMAS1 Multi Position Air Handling Unit

Product Description

The Fujitsu General America AOUG36LMAS1 is a versatile outdoor multi-position air handling unit suitable for both cooling and heating applications. It utilizes R410A refrigerant and operates on 208-230V power. The unit is engineered with an all-aluminum indoor coil that promotes efficient performance. Additionally, it supports configurations for downflow and horizontal right installations.

• High static pressure capability up to 1.0 inWG.
• Automatic restart after power interruption.
• Optional electric heat kit available.

Product Highlights

This system operates effectively in various climates, offering a cooling capacity of thirty-six thousand BTU per hour and a heating capacity of forty-two thousand BTU. Its design ensures reliable performance with features like cold prevention and high-efficiency ratings.

Product Information

Standard Information

• Manufacturer: Fujitsu
• Unit Type: Outdoor

Technical Specifications

• MPN: AOUG36LMAS1
• Nominal Capacity: 36000 BTU
• Voltage: 208-230 V
• Cooling Capacity: 36000 BTU/h
• Heating Capacity: 42000 BTU
• SEER2 Rating: 17.10
• HSPF2 Rating: 8.80
• Sound Level: 54 dBA
• Connection Type: Flare
• Dimensions (L x W x H): 14.56 x 38.19 x 39.31 inches
• Minimum Outdoor Temperature for Heating: -5 F
• Minimum Outdoor Temperature for Cooling: 14 F
