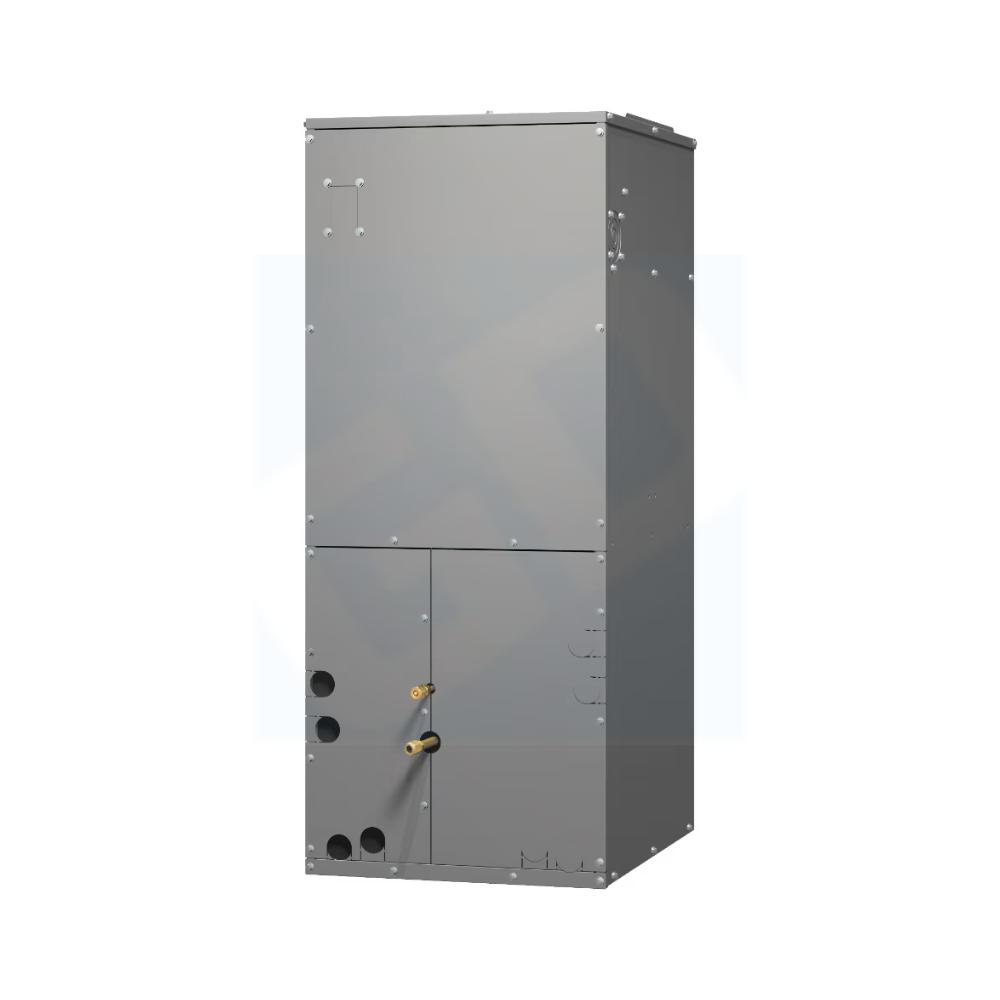

Fujitsu AMUH24KUAS 24,000 BTU Multi-Position Air Handler

Product Description

The Fujitsu AMUH24KUAS is a 24,000 BTU R-32 multi-position air handler designed for multi-zone ductless systems. Compact for ceiling or soffit installs, it delivers quiet, efficient performance with corrosion-resistant coils and a built-in drain pump. Features advanced controls and reliable operation for optimal climate management.

• Ideal for retrofit and new construction applications.
• Features a built-in refrigerant leak detection sensor.
• Offers multiple fan speed options: Auto, High, Med, Low, and Quiet.

Product Highlights

This ducted, multi-position air handler provides flexible installation and efficient performance for multi-zone climate control.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: AMUH24KUAS

Technical Specifications

• Unit Type: Indoor Unit
• Product Line: KUAS Series
• Operating Mode: Cooling & Heating
• Number of Zones: Multi
• System Capacity: 24,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes
• WiFi Built In: No
• Indoor Unit: AMUH24KUAS
• Nominal Capacity: 24,000 BTU
• Heating Operating Range: 64 - 90 F
• Cooling Operating Range: 60 - 86 F
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Airflow Cooling CFM: 400-518-636-750
• Airflow Heating CFM: 400-518-636-750
• Noise Level dB(A), Cooling: 28-34-38-42
• Noise Level dB(A), Heating: 29-36-38-42
• Mfr. Name: Fujitsu General
• MPN: AMUH24KUAS
• Brand: Fujitsu
• Cooling Capacity: 24000 BTuH
• Refrigerant Type: R-32
