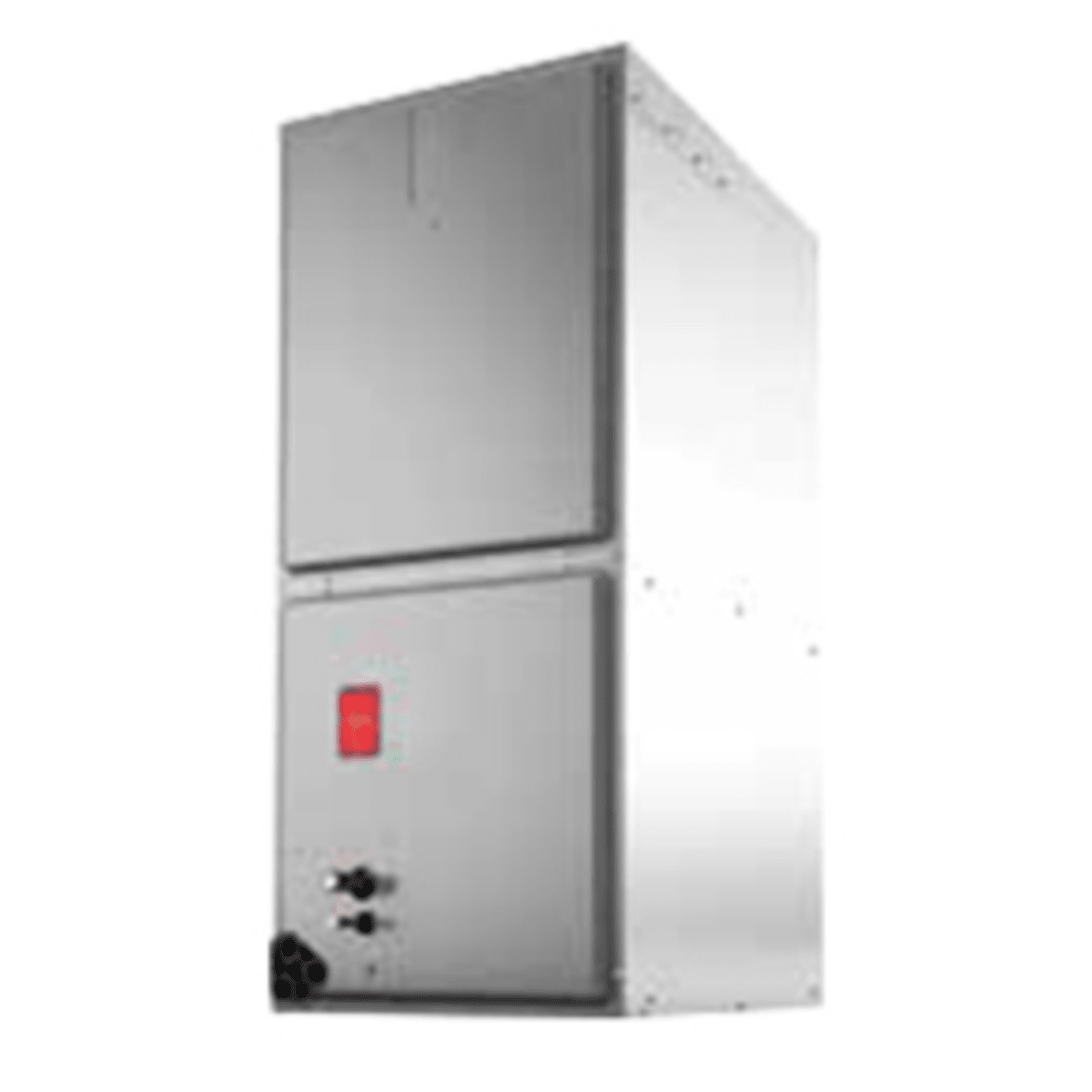

Fujitsu AMUG24LMAS Multi-Position Air Handler

Product Description

The Fujitsu General America AMUG24LMAS is a multi-position air handler for indoor use. It operates effectively in both heating and cooling modes, utilizing R-410A refrigerant. This unit is AHRI certified and includes an all-aluminum indoor coil, ensuring durability and efficiency.

• Operates in heating and cooling modes.
• Utilizes R-410A refrigerant.
• Features a washable air filter.

Product Highlights

This air handler supports single-zone configurations and has multiple fan speeds with automatic air direction. It features a removable front grille for easy maintenance.

Product Information

Standard Information

• Type: Ducted Vertical Air Handler
• Multi-Zone Compatible: No

Technical Specifications

• Refrigerant Type: R-410A
• Cooling BTU: 22,200 (5,000~27,300)
• Heating BTU: 24,200 (5,000~29,000)
• Low Temp Heating BTU/h: 14,600
• SEER: 15.0
• EER Cooling/Heating: 10.6 / 10.2
• Operating Temperature Cooling: 0~115
• Noise Level: 45/43
• Air Circulation: 618
• Dimensions Height Indoor: 9-3/4
• Dimensions Width Indoor: 32-3/4
• Dimensions Depth Indoor: 32-3/4
• Input Voltage: 208-230/60/1
• AHRI Certified: Yes
