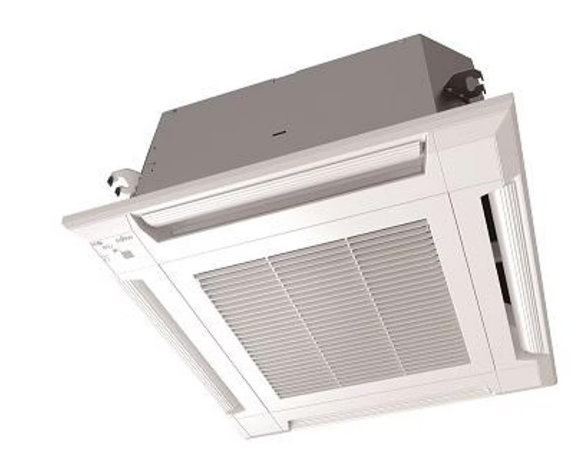

Fujitsu ACUH12LUAS1 12,000 BTU Multi-Zone Compact Cassette Unit

Product Description

The Fujitsu ACUH12LUAS1 12,000 BTU Multi-Zone Compact Cassette Indoor Unit is an efficient option for residential or light commercial applications. This Airstage series unit eliminates the need for bulky ductwork, using small tubing to pump refrigerant directly. It provides efficient year-round cooling and heating with zoning flexibility. The unit operates in cooling and heating modes.

• Built-In Condensate Pump
• 2 stage fan which produces two separate airflow streams which increases efficiency by 20%
• Quiet Operation as low as 27 dB.

Product Highlights

This compact cassette unit is designed for single rooms and provides individual temperature control. It features a built-in condensate pump and quiet operation.

Product Information

Standard Information

• Brand: FUJITSU
• Manufacturer Part Number: ACUH12LUAS1

Technical Specifications

• Unit Type: Compact Cassette, 2X2
• Product Line: Airstage
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Unit Size: 12,000 BTU
• Line Set Size: 1/4" x 3/8"
• Wifi Capable: Yes
• Indoor Unit: ACUH12LUAS1
• Indoor Unit Grille: UTG-CCGFGA
• Remote Controller: NOT INCLUDED
• Cooling Capacity: 12,000 BTU
• Heating Capacity: 12,800 BTU
• Room Cooling/Heating Capacity: up to 500 sq ft
• Air Circulation Modes: Hi, Medium, Low, Quiet
• Air Mode CFMs: 359, 312, 277, 241
• Indoor Sound Levels (dBs,Cooling/Heating): 37/37, 33/33, 31/31, 28/28
• Net Weight: 33 lbs
• Dimensions (HxWxD): 9 5/8", 22 7/16", 22 7/16"
• Nominal cooling: 12000
• Nominal Heating: 12800
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• Suction Line Size: 3/8
• Liquid Line Size: 1/4
• Length (inches): 22.4375
• Height (inches): 9.625
• Width (inches): 22.4375
• Weight (pounds): 33
• Thermostat: Remote Sold Separately
• Configuration: Ceiling Recessed
