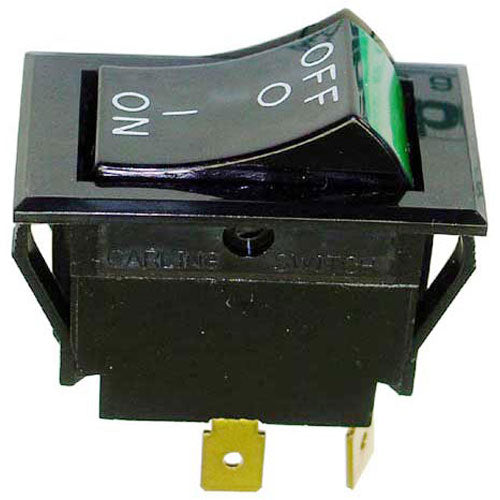

SWITCH 7/8 X 1-1/2 DPST 8072196 for Frymaster 807-2196

Product Description

This item for Frymaster MPN 8072196 is a DPST switch measuring seven eighths of an inch by one and a half inches. It is designed for various Frymaster equipment models, including FM45 and MJCF.

• Four terminals with quarter-inch tabs
• Rated for six amps at one hundred twenty-five volts and three amps at two hundred fifty volts
• Includes markings for ON/OFF operation

Product Highlights

This switch serves as a melt cycle control with a straightforward ON/OFF operation. It is suitable for new style installations.

Product Information

Standard Information

• Weight: 0.1 lbs
• Dimensions: 1.75 inches (Length) x 1.625 inches (Width) x 0.875 inches (Height)

Technical Specifications

• Terminal Type: 4 terminals (1/4 tabs)
• Switch Type: DPST
• Cycle Type: Melt cycle switch
• Operating Rating: 6A/125V, 3A/250V
• Markings: I-O, ON/OFF
• Compatible Models: Frymaster FRTER 1824E, 2424E, FM45, FM47, FMCFE
