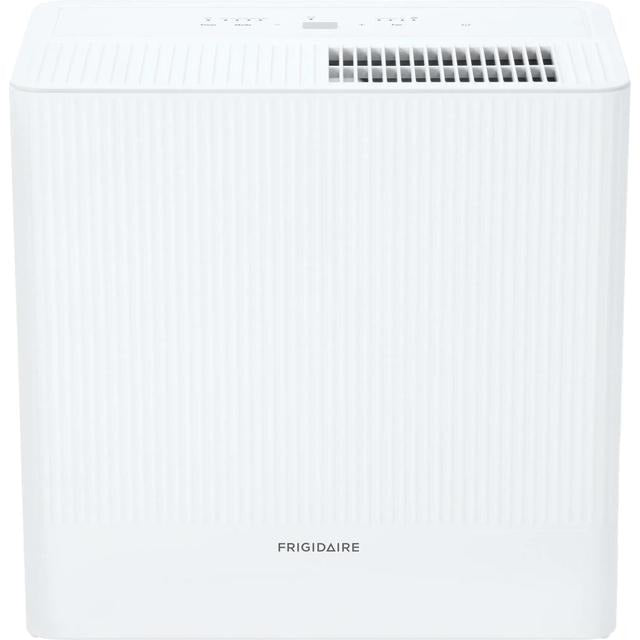

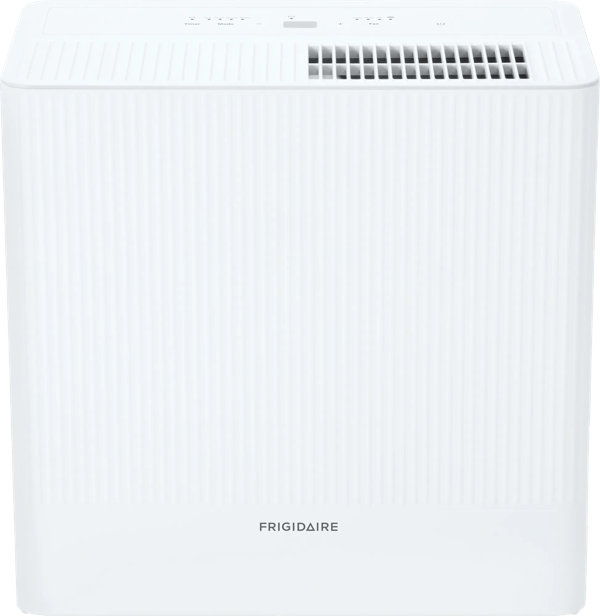

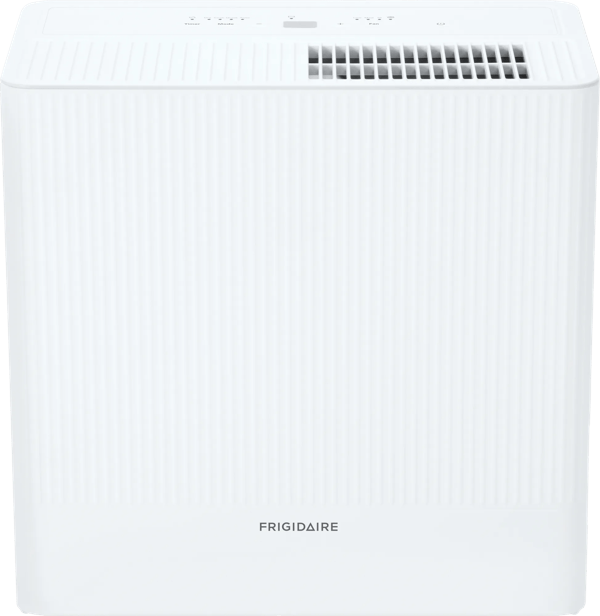

Frigidaire FHDD2233Y1 22 Pint Dehumidifier Continuous Drain

Product Description

The FRIGIDAIRE FHDD2233Y1 is a 22-pint-per-day portable dehumidifier designed for residential moisture control in basements, crawl spaces, and living areas. It operates across a humidity range of 35 to 85 percent relative humidity and delivers airflow up to 132 CFM on high speed. The unit features electronic controls with a digital humidity readout, allowing precise humidity setpoints without guesswork. A continuous drain option eliminates the need to manually empty the 0.85-gallon bucket, making it practical for unattended or long-duration operation. A washable rear-access dust filter and a filter check indicator help maintain consistent airflow and unit efficiency over time.

This dehumidifier is suited for residential applications where ongoing moisture management is needed without constant manual intervention. The continuous drain feature is especially useful in basement installs where a floor drain or condensate pump is accessible. The 24-hour on/off timer and auto restart functions make it compatible with basic home automation setups or scheduled operation. Low-temperature operation capability extends its usable range into unconditioned spaces that may see cooler ambient conditions. Air discharge from the top of the unit reduces recirculation of already-processed air in confined spaces.

Key Features

• 22 pints per day dehumidification capacity with an integrated energy factor of 1.7 L/kWh
• Continuous drain operation eliminates manual bucket emptying
• Two fan speeds with airflow of 122 CFM low and 132 CFM high
• Digital humidity readout with adjustable setpoint range of 35 to 85 percent RH
• Washable rear-access dust filter with filter check indicator
• Auto restart, auto shut-off, and 24-hour on/off timer included
• Top-discharge air outlet and low-temperature operation capability

Compatibility

Designed as a standalone portable residential dehumidifier for use in basements, utility rooms, and similar enclosed spaces requiring active moisture removal.

Installation Notes

Installation is typically performed by the homeowner or a general service technician. When using the continuous drain option, route the drain line to an appropriate floor drain or condensate pump — ensure the line maintains a consistent downward slope to prevent standing water. Position the unit away from walls to allow unobstructed rear filter access and adequate airflow. Disconnect power before servicing the filter or drain connection.

Technical Specifications

• Dehumidification Capacity: 22 pints per day
• Bucket Capacity: 0.85 gallons
• Airflow (Low): 122 CFM
• Airflow (High): 132 CFM
• Fan Speeds: 2
• Motor RPM (Low): 1190 RPM
• Motor RPM (High): 1290 RPM
• Noise Level (Low): 47.5 dBA
• Noise Level (High): 49 dBA
• Relative Humidity Range: 35 to 85 percent
• Integrated Energy Factor: 1.7 L/kWh
• Air Discharge: Top of unit
• Control Type: Electronic
• Height: 17 inches
• Width: 16 inches
• Depth: 8.9 inches

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: FHDD2233Y1
