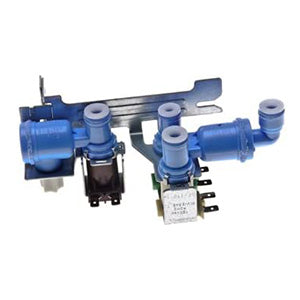

Frigidaire 242252702 Water Valve REPLACEMENT MPN

Product Description

The FRIGIDAIRE 242252702 Water Valve is designed for major appliances, supplying water to the ice maker and water dispenser in refrigerators. This valve is a direct replacement for multiple part numbers. It controls the flow of water and is typically used in side-by-side units. Includes instructions and a bracket.

• Controls the flow of water to the ice maker and water dispenser.
• Typically used on side by side units.
• New quick connect fittings replace older style screw on fittings.

Product Highlights

This water inlet valve is essential for refrigerators with ice makers and water dispensers, ensuring a consistent water supply.

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: 242252702

Technical Specifications

• Manufacturer: Frigidaire
• Brand: Frigidaire
• Product Group: Major Appliances
• Model / MPN: 242252702
• Product Type: VALVE
• Material: Plastic, Stainless Steel
• Exterior Finish: Stainless Steel
• Inlet Connection Type: Standard Water Inlet Connection
• Outlet Connection Type: Standard Water Inlet Connection
• Number of Ports: 2
• Part Number: 242252702
• Item model number: 242252702
• Is Discontinued By Manufacturer: No
• Size: Standard
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Electrical Specs: 120V (each), 50/60Hz (each), 20W (Maroon), 20W (Yellow), 35W (Green)
• Coil Voltage: 120 Vac
• Red and Yellow Coil Wattage: 20 Watt
• Green Coil Wattage: 35 Watt
• Number of Tubing Lines: 5
• Tubing Sizes: One 1/4" tube and 3 are 5/16" tubing
• Type: Valve
• Category: Refrigerator & Freezer Parts
• Additional Dimensions: (1) 1/4" tube inlet; (3) 5/16" tube outlets, (1) 1/4" tube outlet
