Frigidaire 18FFRACB02 Air conditioner support bracket 160 lb (4 in-11 in wall thickness)

Product Description

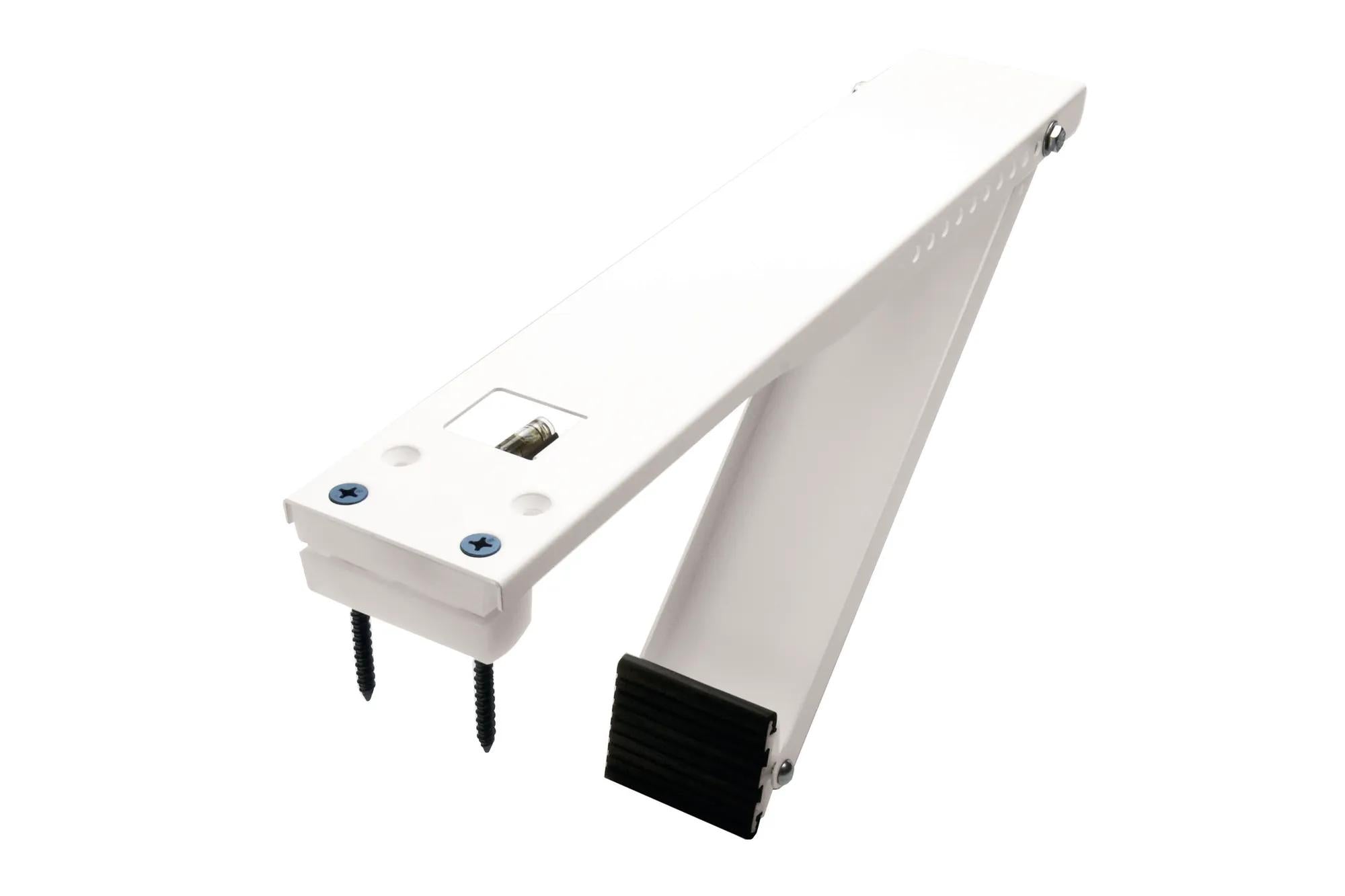

Frigidaire 18FFRACB02 is an air conditioner support bracket designed to support window air conditioning units up to 160 lb. The galvanized steel bracket transfers unit weight to the support without drilling into exterior siding, adjusts for wall thicknesses from 4 in to 11 in (10.1 cm to 27.9 cm), and includes a built-in bubble level and installation hardware for proper mounting. It supports units in the 12,000 to 24,000 BTU range.

• Supports window air conditioners up to 160 lb and compatible with 12,000 to 24,000 BTU units
• Adjustable for wall thicknesses from 4 in to 11 in (10.1 cm to 27.9 cm) with built-in bubble level
• Galvanized steel construction; includes mounting hardware (concave mounting block, rubber wall support, spacers, bolts, screws, washer)

Product Highlights

Galvanized steel support bracket for window ACs up to 160 lb; adjustable 4 in�11 in wall thickness; includes hardware and bubble level

Product Information

Standard Information

• Brand: FRIGIDAIRE
• Manufacturer Part Number: 18FFRACB02

Technical Specifications

• Brand: Frigidaire
• MPN: 18FFRACB02
• Product Type: Air conditioner support bracket
• Maximum Supported Weight: Up to 160 lb (72.5 kg)
• Supported BTU Range: 12,000 to 24,000 BTU
• Adjustable Wall Thickness: 4 in - 11 in (10.1 cm - 27.9 cm)
• Material: Galvanized steel
• Includes: Concave mounting block; rubber wall support; flat spacer; round spacer; hexagonal bolt with nut; blue screw; silver screw; washer
• Built-in Bubble Level: Yes
• Number of Items: 1
• Item Weight (grams): 1261 g
• Package Weight (grams): 1288 g
• UPC: 012505468469
• GTIN: 0012505468469
• Category: Home & Kitchen > Heating, Cooling & Air Quality > Parts & Accessories > Air Conditioner Parts & Accessories > Accessories
