Product Description

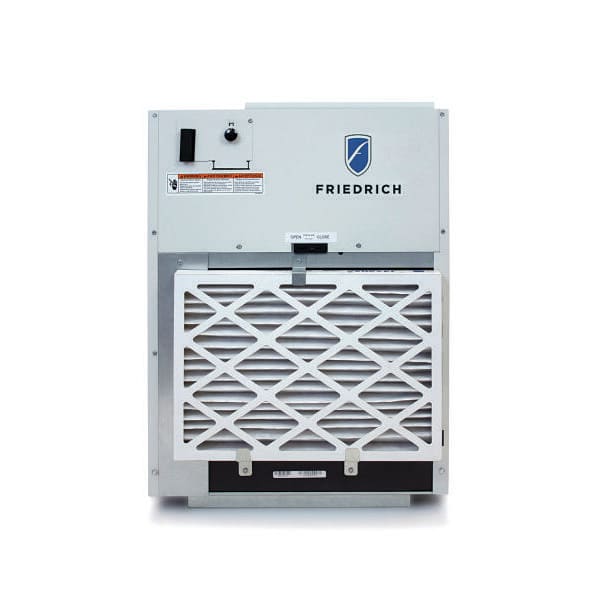

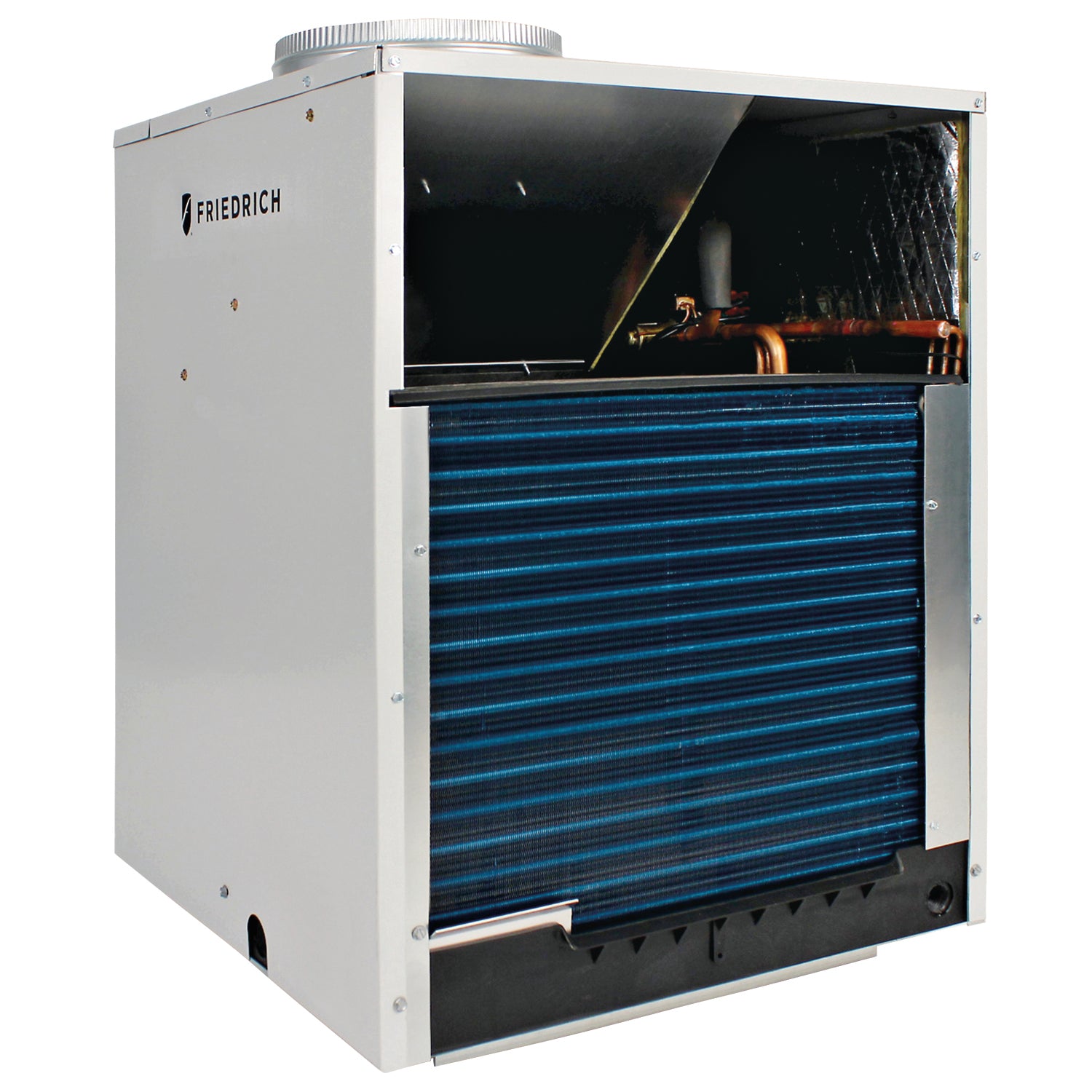

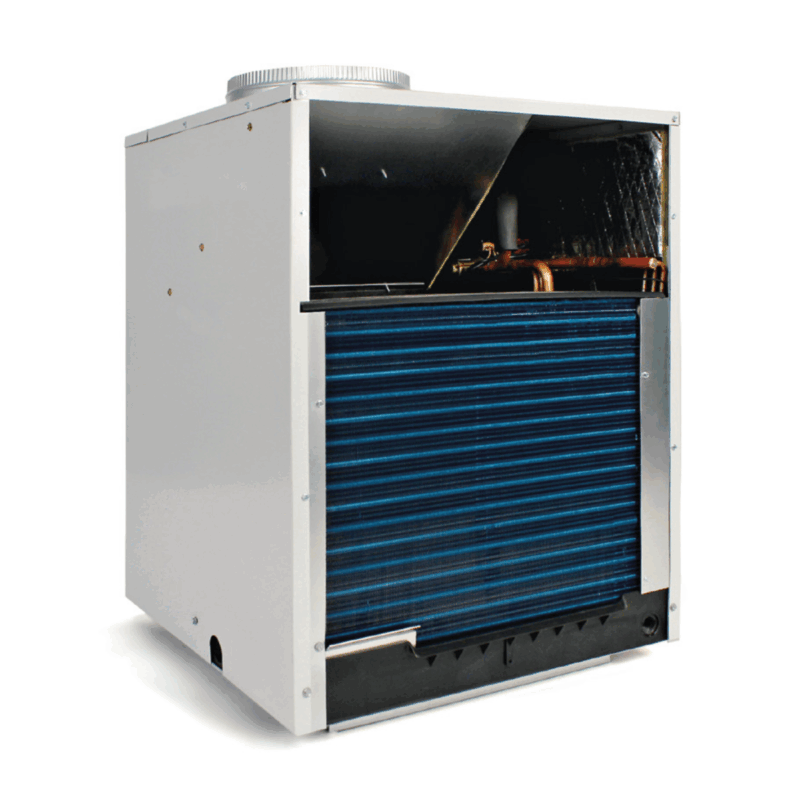

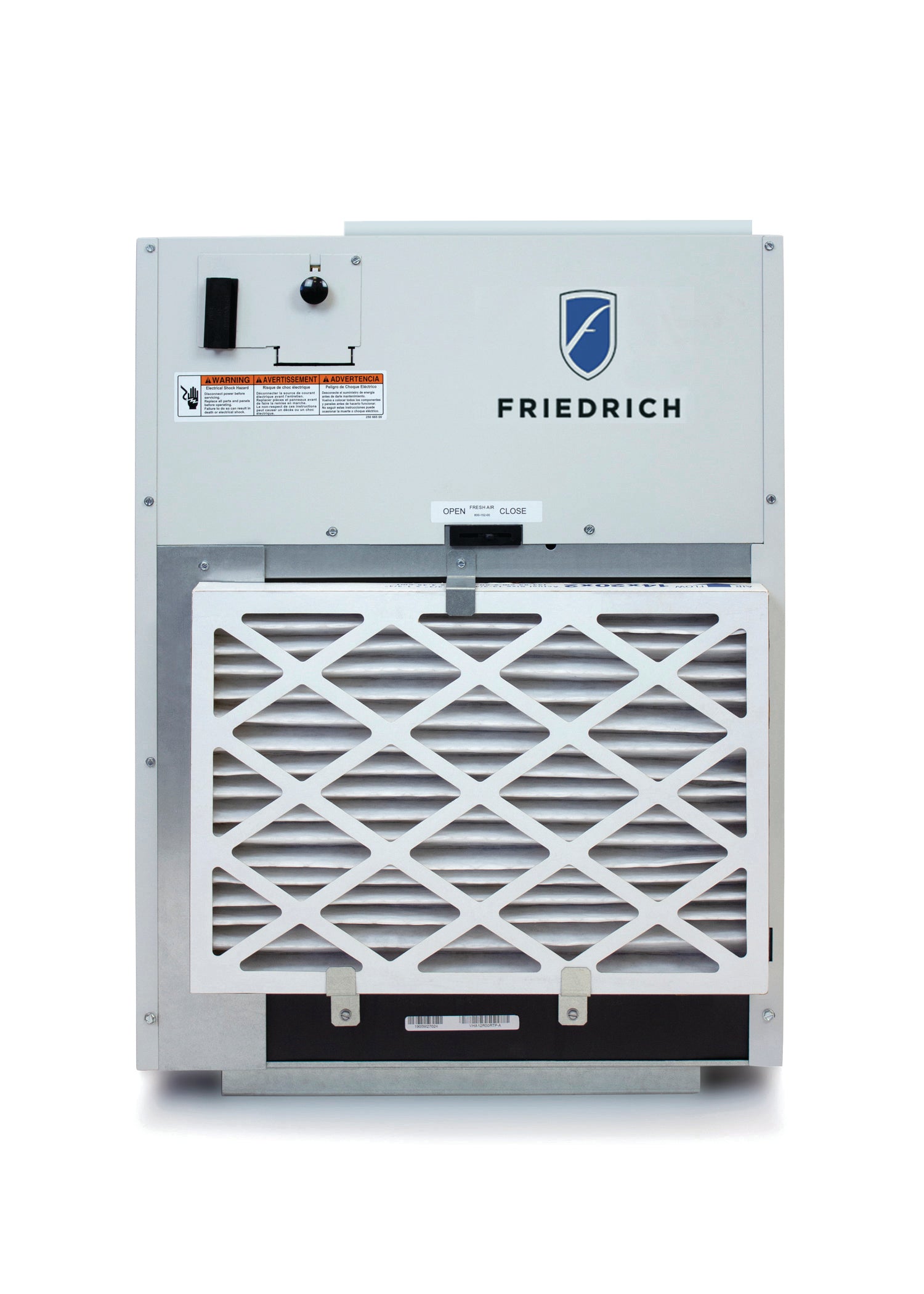

The FRIEDRICH VHA12K25RCQ Vert-I-Pak is a customizable and reliable VTAC unit with heat pump, ideal for extended stay hotels, assisted living, and student housing. This air conditioner stays tucked away and out of sight, providing the aesthetics of central HVAC systems with the simplicity of single room ACs. Requires a wall thermostat (NOT INCLUDED).
- Cooling With Heat Pump
- Perfect for extended stay hotels, assisted living, and student housing
- Stays tucked away and out of sight
Product Highlights
The FRIEDRICH Vert-I-Pak offers a simpler way to condition multiple rooms, fitting neatly into a typical mechanical closet for a quieter, visually appealing living space.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: VHA12K25RCQ
-
Country of Origin: MEXICO
Technical Specifications
-
Brand: Friedrich
-
Type: Cooling With Heat Pump
-
Cooling BTU: 12000
-
Reverse Cycle BTU: 10600
-
Voltage: 208/230V
-
AMPS: 15A
-
EER: 11.0
-
COP: 3.3
-
Digital Controls: NO
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Freeze Protection: YES
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Sea Coast Protection: YES
-
Temprature Limiting: YES
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
CFMs (@ 0.1 ESP): 420
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: 2.5
-
Cooling BTUs (@230V): 11200
-
EER2 (@230V): 10.6
-
SEER2 (@230V): 12.3
-
Cooling Amps (@230V): TBD
-
Cooling Watts (@230V): 1057
-
Heat Pump BTUs (@230V): 10400
-
HSPF2 (@230V): 6.3
-
Heat Pump Heating Amps (@230V): TBD
-
Heat Pump Heating Watts (@230V): TBD
-
Vent Location: Ducted Into Room
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: High or Low
-
Control Type: Wall Thermostat Required (NOT INCLUDED)
-
Connectivity: Not WiFi Compatible
-
Fresh Air Intake: No
-
Overall Depth (in.): 23
-
Overall Width (in.): 23
-
Overall Height (in.): 32
-
Circuit Breaker Size (Amps): 15
-
Cooling Capacity: 11200 BTU
-
Heating Capacity: 10400 BTU
-
Watts: 2450
-
Amperage: 11.5 amp
-
Average Coverage Area: 450-550 sq. ft.
-
BTU Heat Rating: 12000 Btu
-
Product Depth: 23 in.
-
Product Height: 32 in.
-
Product Width: 23 in.
-
HazMat: Hazardous
-
Air Delivery CFM: 420
-
BtuH Cooling: 8800
-
BtuH Heating: 7000-8500
-
Depth: 23
-
Refrigerant: R-32
-
Volts: 208/230
