Product Description

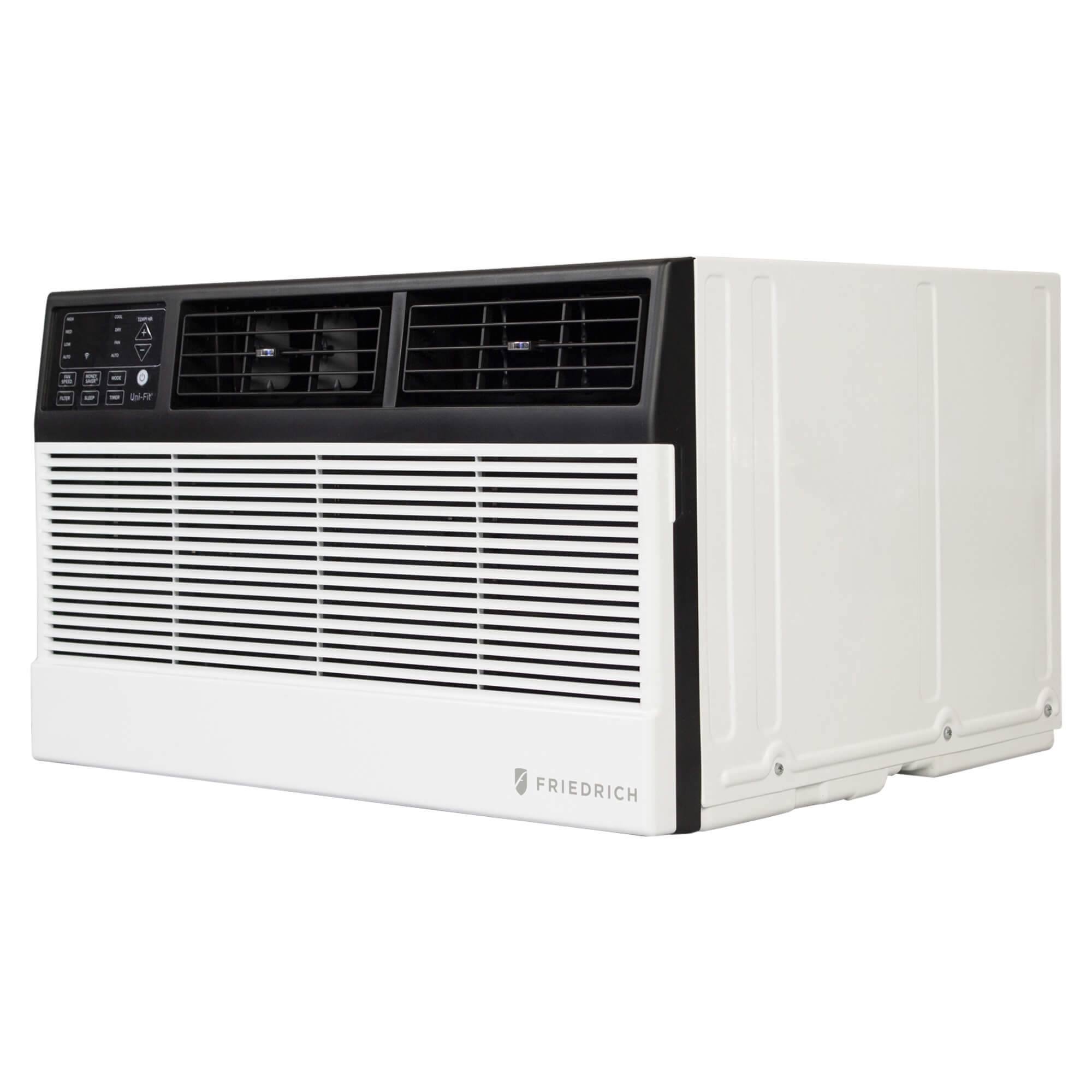

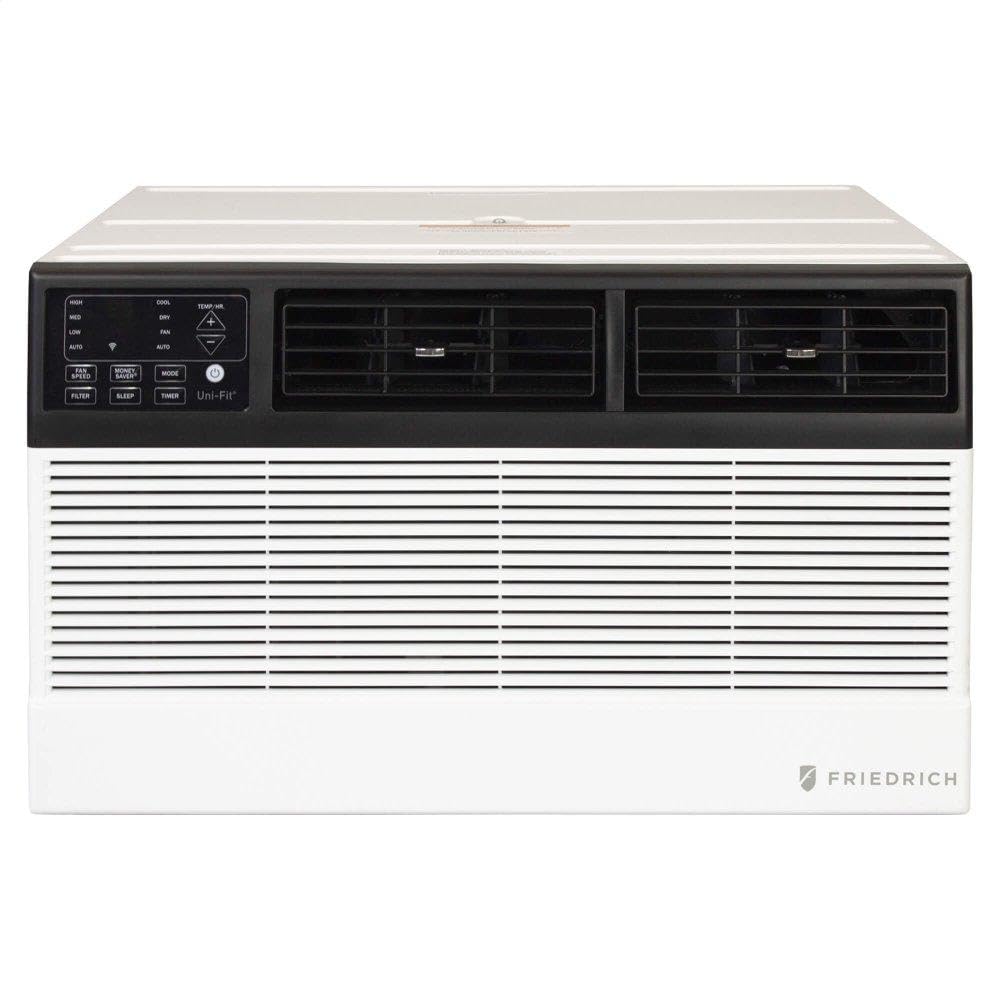

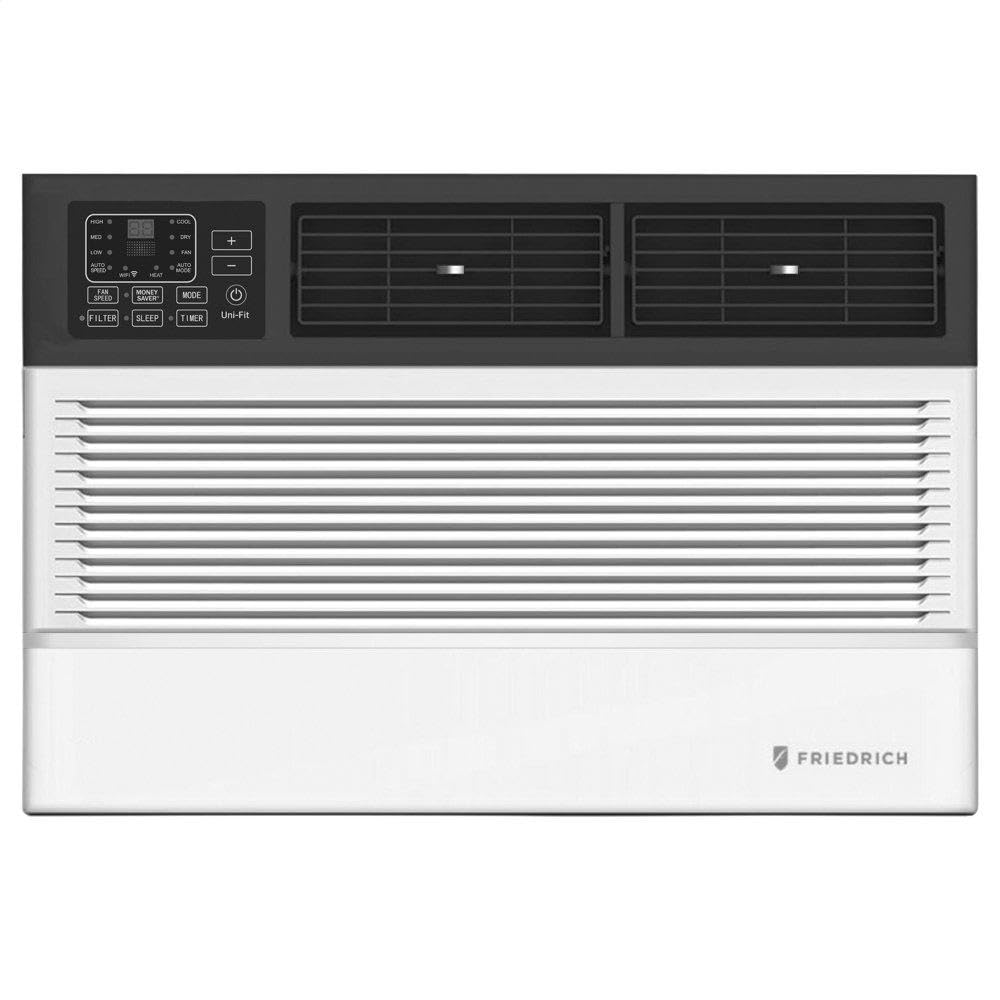

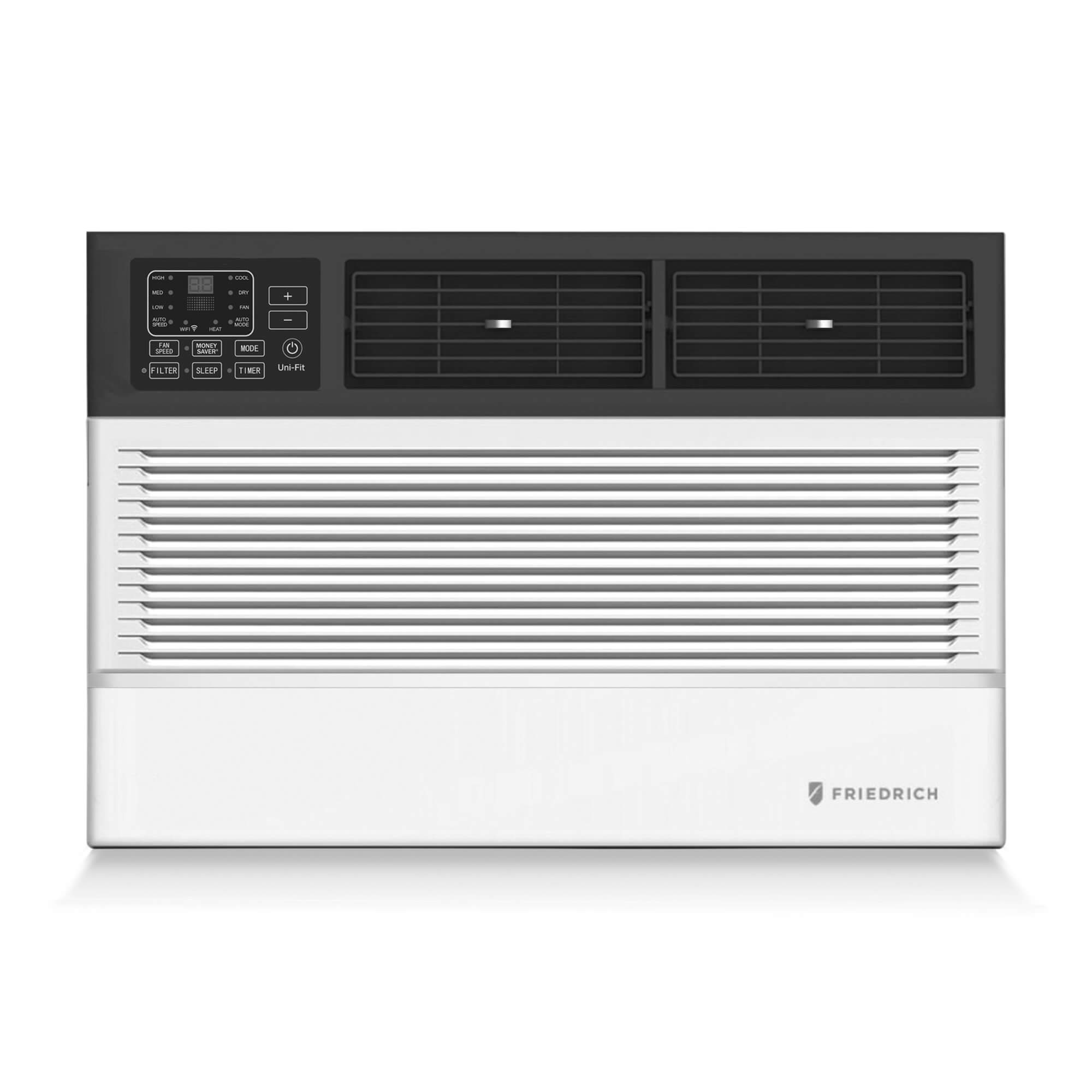

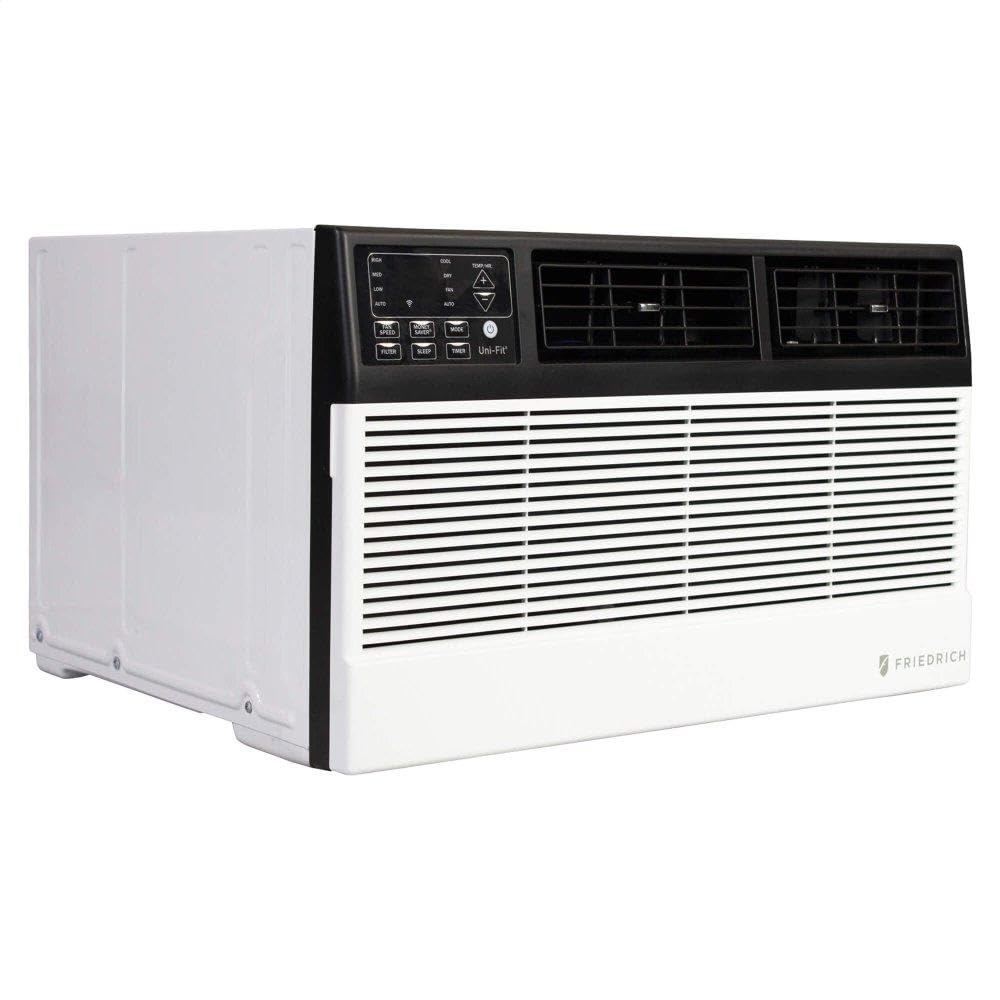

The Friedrich UCT12B30A Uni-Fit smart through-the-wall air conditioner features QuietMaster Technology for powerful cooling without disruptive noises. This unit uses R-32 refrigerant and has built-in WiFi, allowing control via smartphone with the FriedrichGo app, Amazon Alexa, and Google Home. It cools an area up to 550 Sq. Ft. and has a 24-hour timer.
- Cools up to 550 sq. ft.
- Features QuietMaster Technology for quiet operation.
- Offers 8-way air flow control.
Product Highlights
Smart through-the-wall air conditioner with quiet operation, WiFi control, and eco-friendly R-32 refrigerant.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: UCT12B30A
-
Country of Origin: China
Technical Specifications
-
Brand: Friedrich
-
Product Type: AIR_CONDITIONER
-
Model / MPN: UCT12B30A
-
MPN: UCT12B30A
-
Cooling Capacity: 12,000 BtuH
-
EER: 10.6
-
CEER Rating: 10.5
-
Amps: 5.4 A
-
Watts: 1,130
-
Voltage: 230V AC
-
NEMA Plug Configuration - HVAC: 6-20P
-
Power Cord Length: 6 ft
-
Programming Capability: 24 hr On/Off Timer
-
Smart Connectivity: WiFi Control
-
Air Flow Direction: 8 Way
-
Refrigerant Type: R32
-
Number of Speeds: 3
-
Series: UNI-FIT
-
Standards: cULus Listed
-
Duty Rating: Residential Grade
-
Operation Mode - HVAC: Cooling Only
-
Fits Wall Sleeve - H x W x D: 15 1/2 in x 25 7/8 in x 16 3/4 in
-
Seacoast Corrosion Protection: Front and Rear Coil
-
Room Size: Medium
-
Cooling BTU: 12000 BTU
-
Cooling Speeds: 3
-
Number of Fan Speeds: 3 Fan Speeds
-
Heat/Cool: No
-
No. of Air Flow Directions: 8
-
CFM: 276 CFM
-
Moisture Removal (Pints/hr): 3.38 Pints/hr
-
Filter Description: Washable air filter
-
Washable Filter: Yes
-
Charcoal Filter: No
-
Inverter Technology: No
-
Chassis Type: Thru the Wall
-
Additional Features: Built-in Wi-Fi control on the go with the FriedrichGo app, Smart home / voice command device compatability (Amazon Alexa or Google Home)
or Google Home)
-
Universal Fit Wall Sleeve: Yes
-
WiFi Connected: Yes
-
Wifi/App Controllable: Wifi/Smartphone App Controllable
-
Smart Features: App Controllable, Status Monitoring & Alert, Works with Voice Assistant
-
Works with: Amazon Alexa
-
Control Type: Digital
-
Temperature Display: Yes
-
Automatic Timer: Yes
-
Delay Timer: No
-
Automatic Shut Off/Sleep Mode: Yes
-
Remote Control Included: Yes
-
Replacement Sleeve Included: No
-
Trim Kit Included: Yes
-
Energy Star Rated: No
-
Energy Efficiency Ratio: 10.1 EER
-
Power Cord Length (in.): 72 Inches
-
Power Requirements: 220 Volt 15 Amp Dedicated Circuit (Tandem Plug)
-
Voltage (V): 230 Volts
-
Amperage: 15 Amps
-
Auto Restart: Yes
-
Cooling Amps: 6.5 Amps
-
ADA Compliant: No
-
CSA Listed: No
-
ETL Listed: No
-
UL Listed: Yes
-
Minimum Average Coverage Area: 450 sq ft
-
Maximum Average Coverage Area: 550 sq ft
-
Compressor Type: Rotary
-
For Sleeve Depth: 16-3/4 in
-
For Sleeve Height: 15-1/2 in
-
For Sleeve Width: 25-7/8 in
-
Max. Wall Thickness: 16-1/4 in
-
Mounting Sleeve Included: Sleeve Not Included
-
NEMA Plug Configuration: 6-20P
-
Operation Mode: Cooling Only
-
Power Source: Plug-In
-
UNSPSC: 40101701
