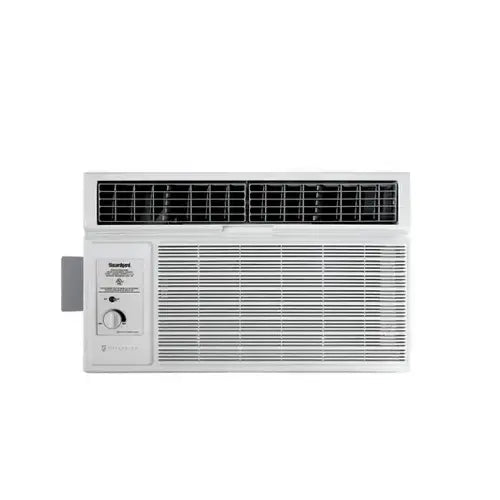

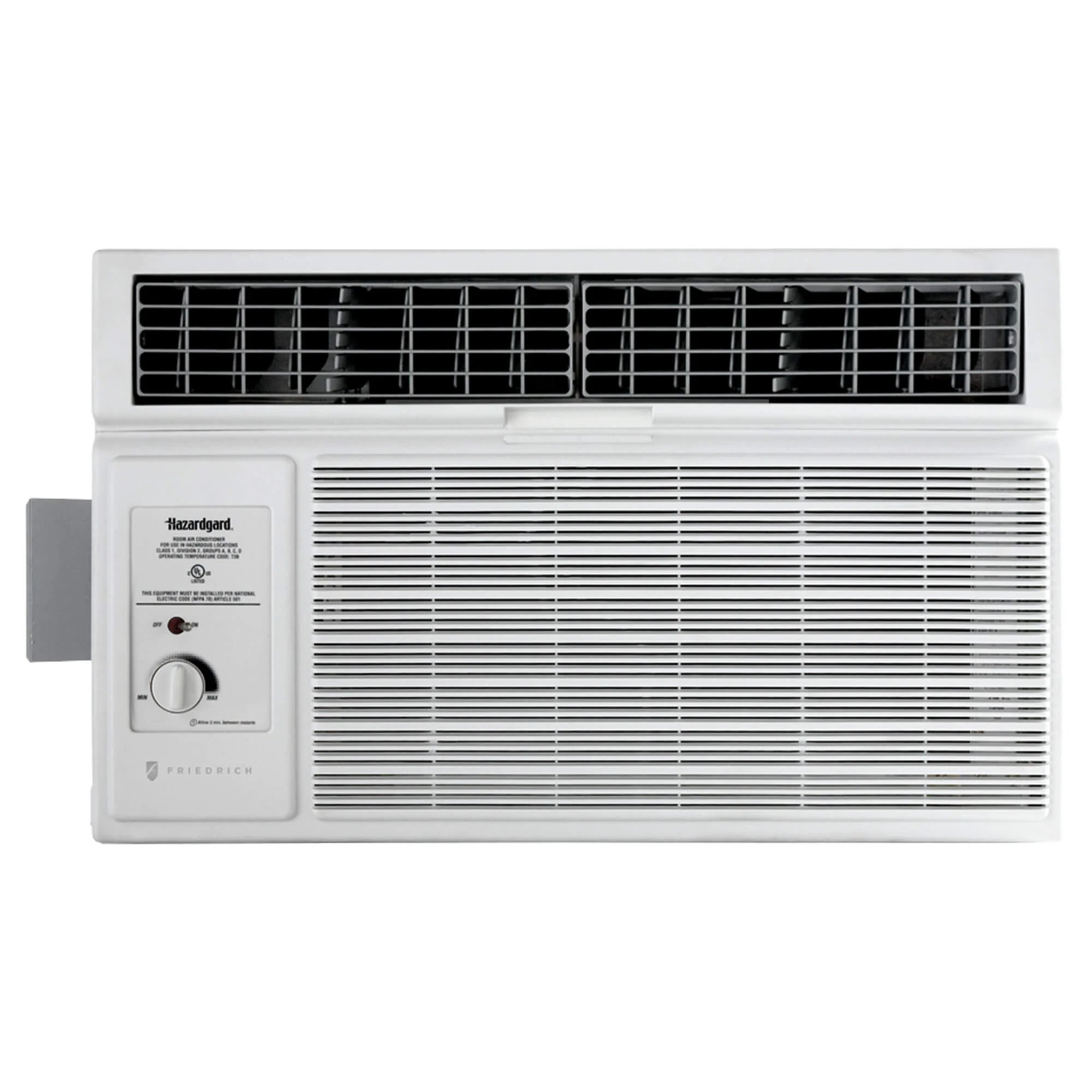

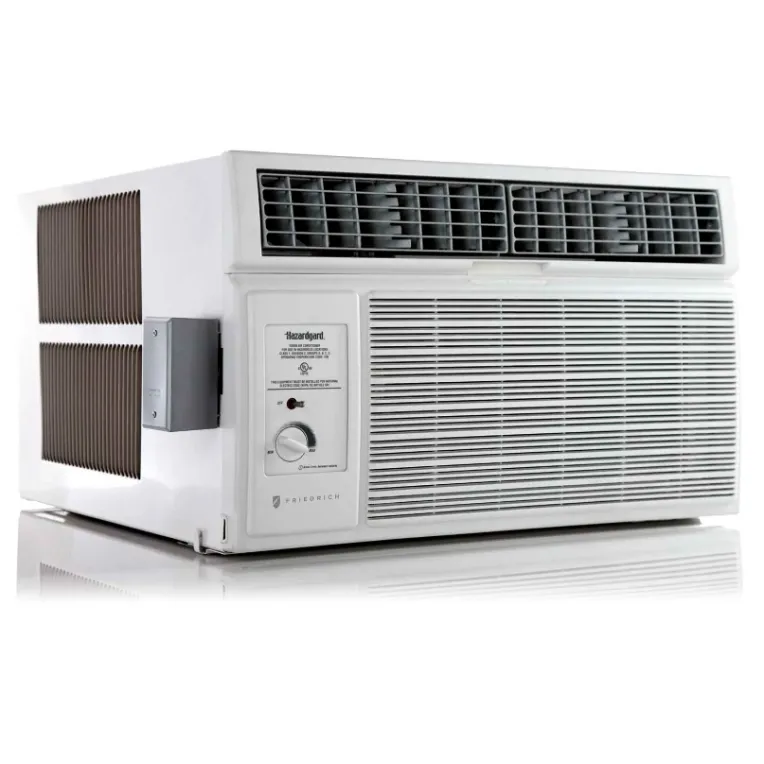

Friedrich HCM24A30A Hazardgard Series Air Conditioner 24,000 BTU 208/230V

Product Description

The Friedrich HCM24A30A is designed for areas using or storing flammable materials. This 60Hz air conditioner has a T4 temperature rating and operates in conditions from 45°F to 130°F. The unit's surface temperature will not exceed 275°F. It features Electrofin 5-stage, Immersion Ecoat on all metallic surfaces of the outdoor coil for corrosion resistance.

• Designed for use in areas where flammable liquids or gasses are present.
• Features Electrofin 5-stage, Immersion Ecoat for corrosion resistance.
• Hermetically sealed refrigeration system.

Product Highlights

Hazardgard endures tough operating conditions. Ideal for oil rigs, refineries, chemical plants, and hazardous material storage.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: HCM24A30A

Technical Specifications

• Installation Type: Window
• Chassis Type: Slide-Out (Window/Wall)
• Window Type: Standard
• Window Mounting Kit Included: No
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 385
• Includes Heat Mode: No
• Cooling BTUs (@230V): 23000
• EER (@230V): 9.9
• Dehumidification (pts/hr) (@230V): 8.8
• Cooling Amps (@230V): 10.9
• Cooling Watts (@230V): 6740
• Vent Location: Top Front
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: Variable
• Control Type: Rotary
• Filter Access: Hinged door for easy maintenance
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: No
• Sleep Mode: No
• Window Width (Min.)(in.): 27.875
• Window Width (Max.)(in.): 42
• Voltage: 208-230V
• Plug Face (NEMA): Hardwire
• Circuit Breaker Size (Amps): 25
• Coverage Area: 1400 ft²
• Wall Cut-Out Width: 26-3/16 in
• Wall Cut-Out Height: 18-3/16 in
• Window Height Min/Max: 18 in
• Max Wall Thickness: 6 in
• Assembly Required: No
• Number of Speeds: 1
• Filter Type: Washable Mesh
• BTU Cooling: 24000
• Dehumidification: 8
• Phase: 1
• Air Discharge: Top Discharge
• Manufacturers Part Number: HCM24A30A
• Brand: Friedrich
• Type: Cool Only
• CFM: 385 CFM
• Hertz: 60 Hz
• Amps Cooling: 13.2 A
• Power Cord Type: Hard Wired
• Certifications: UL, cUL Listed
• Energy Star Certified: No
• Energy Efficiency Rating (EER): 8.8
• Item Type: Hazardous Location Air Conditioner
• Cooling BTU: 23000
• Temp. Classification: T4
• MBH: 23
• BTU/Hour: 23000
• Volt: 208-230/1/60
