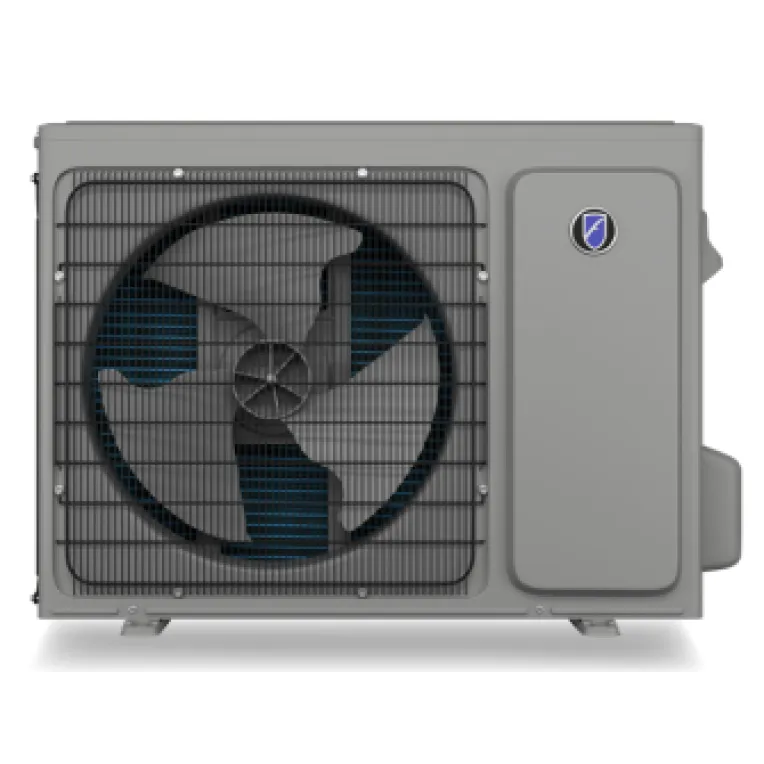

Friedrich FSHSR24B3D 24000 BTU Floating Air Select Series Outdoor Unit 230V

Product Description

The Friedrich FSHSR24B3D 24000 BTU Floating Air Select Series outdoor mini split condenser uses inverter technology for efficient cooling. This single zone outdoor unit is compatible with the Friedrich FAHFW24A3D wall unit. It features high efficiency ratings and low ambient heating and cooling capacities, operating down to 5°F in cooling mode and -5°F in heating mode. The unit comes pre-charged with R32 refrigerant.

• Inverter Technology for energy efficiency and self-adjusting capacity
• Easy installation for quick setup
• FastPro design for easy access during cleaning and maintenance

Product Highlights

The Friedrich FSHSR24B3D offers efficient, customized comfort with its inverter technology and compatibility with single-zone systems.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FSHSR24B3D

Technical Specifications

• Cooling BTUs: 24000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 24000
• Outdoor Unit Noise Level (dBA): 60
• Inverter Technology: Yes
• Line Set Liquid Line: 3/8"
• Line Set Suction Line: 5/8"
• Maximum Pipe Length (ft.): 100
• Max. Height Difference (Indoor / Outdoor) (ft.): 50
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -5°F - 75°F
• Min. Outdoor Temp for Heat °F: -5
• Width (in.): 33.875
• Depth (in.): 12.25
• Height (in.): 25.624
• Voltage: 208-230V
• Amps: 21
• Circuit Breaker Size (Amps): 35
• Type: Outdoor Unit
• Max. Airflow: 1,942 CFM
• SEER2: 19.5
• Cooling Capacity: 24,000 Btu/h
• Heating Capacity: 24,000 Btu/h
• COP2: 3.3
• EER2: 10.6
• HSPF2: 8.5
• Category: Ductless Mini-Splits
• Product Marketing Name: Friedrich Floating Air Select Ductless Mini-split Single-zone Heat Pump (Outdoor Unit)
• Energy Star Qualified: No
• Operation: Cool / Heat Pump
• Refrigerant: R-32
• Cool Cap: 24000
• Cool Power: 24000.0
• Energy Star Rated: NO
