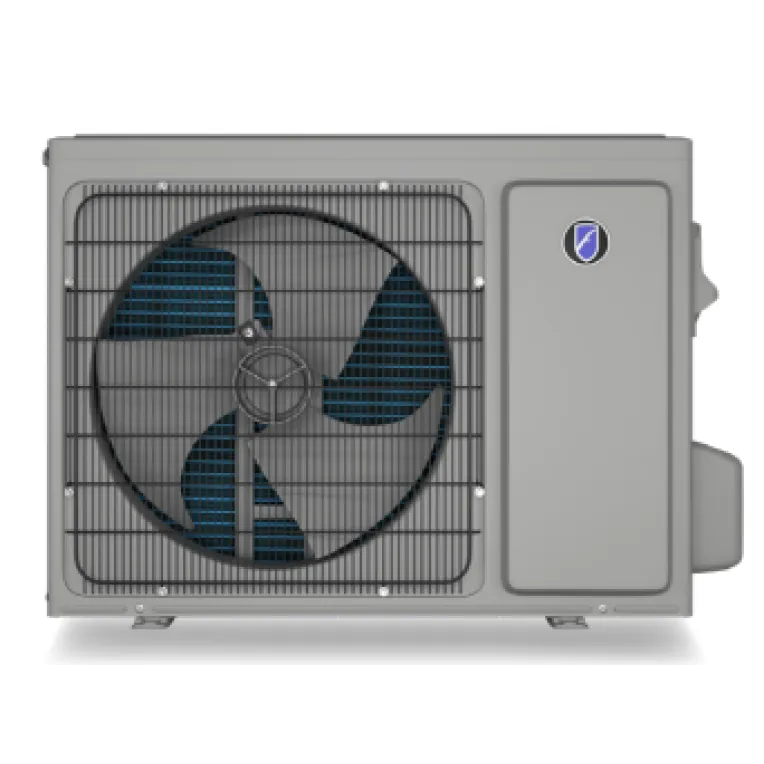

Friedrich FSHSR18B3D Floating Air Select Series Outdoor Unit 18000 BTU 230V

Product Description

The Friedrich FSHSR18B3D Floating Air Select Series outdoor unit features inverter technology for efficient cooling. This mini split condenser offers variable compressor speeds to meet comfort needs, using variable capacity for quick temperature adjustment and maintenance. It uses R32 refrigerant with a Global Warming Potential (GWP) of 675 and is designed for single-zone systems.

• Inverter Technology for energy efficiency and self-adjusting capacity
• Easy installation for a quick setup
• FastPro design for easy access to drain pan assembly, blower, and terminal blocks

Product Highlights

The Friedrich Floating Air Select Series offers high efficiency, low ambient heating and cooling, and quiet operation for customized comfort.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FSHSR18B3D

Technical Specifications

• Cooling BTUs: 18000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 18000
• Outdoor Unit Noise Level (dBA): 56
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 1/2"
• Maximum Pipe Length (ft.): 98
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -5°F - 75°F
• Min. Outdoor Temp for Heat °F: -5
• Width (in.): 31.875
• Depth (in.): 11
• Height (in.): 23
• Voltage: 208-230V
• Amps: 14.5
• Circuit Breaker Size (Amps): 20
• Max. Airflow: 1,471 CFM
• Fan Motor: 60 W (Output)
• Refrigerant: R-32
• SEER2: 21
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 Btu/h
• COP2: 3.9
• EER2: 12
• HSPF2: 9.8
• Sound Level: 56 dB(A)
• Connection: Flare
• Moisture Removal: 3.8 pints/hr
• Gas Line: 1/2"
