Friedrich FSHSR12B1C Floating Air Select 12000 BTU Heat Pump OD Unit 115V

Product Description

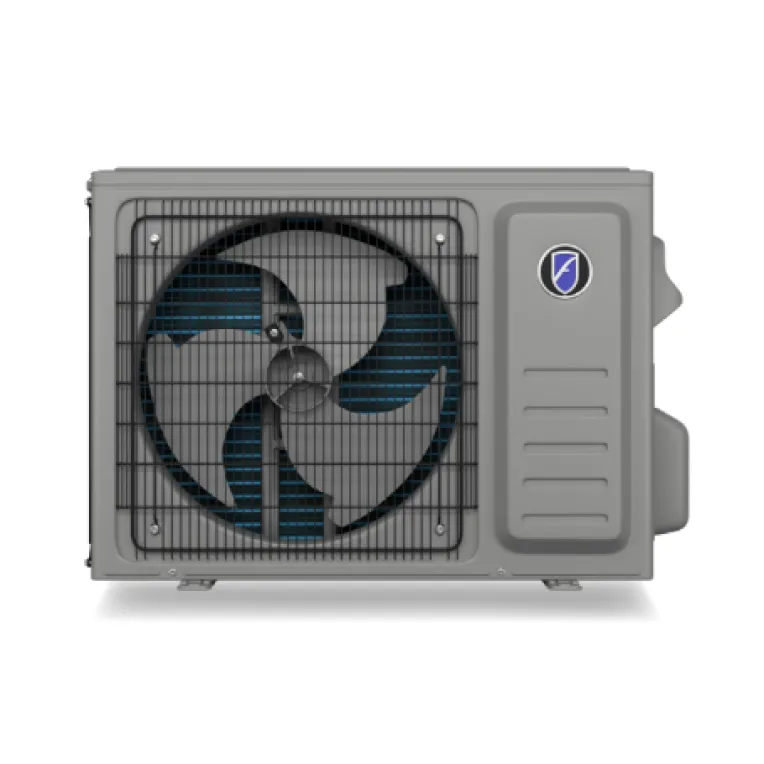

The FRIEDRICH FSHSR12B1C is a 12000 BTU Floating Air Select Series outdoor heat pump unit designed for efficient cooling. It features inverter technology for variable compressor speeds and utilizes R32 refrigerant. This single zone outdoor unit is compatible with the Friedrich FAHSW12A1C wall unit. It operates in cooling mode down to 5°F and heating mode down to -5°F.

• Inverter technology for efficient cooling
• Uses R32 refrigerant with a Global Warming Potential (GWP) of 675
• Precision Inverter variable speed compressor

Product Highlights

The Friedrich Floating Air Select Series offers high efficiency, quiet operation, and is built to last. It provides customized comfort with single-zone options and is an alternative to traditional central HVAC systems.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FSHSR12B1C

Technical Specifications

• Brand: FRIEDRICH
• MPN: FSHSR12B1C
• UPC: 724587447071
• Cooling BTUs: 12000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 12000
• Outdoor Unit Noise Level (dBA): 53
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Max. Pipe Length (ft.): 65
• Max. Height Difference (Indoor / Outdoor) (ft.): 50
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -5°F - 75°F
• Min. Outdoor Temp for Heat °F: -5
• Width (in.): 28.125
• Depth (in.): 9.5
• Height (in.): 21.25
• Voltage: 115V~,60Hz,1P
• Amps: 15.6
• Circuit Breaker Size (Amps): 25
• Max. Airflow: 1,295 CFM
• Refrigerant: R-32
• SEER2: 18
• Cooling Capacity: 12,000 Btu/h @ 95°F
• Heating Capacity: 12,000 Btu/h @ 47°F
• COP2: 3.4
• EER2: 10.2
• HSPF2: 8.5
• Sound Level: 53 dB(A)
• Connection: Flare
• Moisture Removal: 2.5
• Gas Line: 3/8"
• Ton Cooling Capacity: 1
• MBH: 12
• Outdoor Unit Volt: 115/1/60
