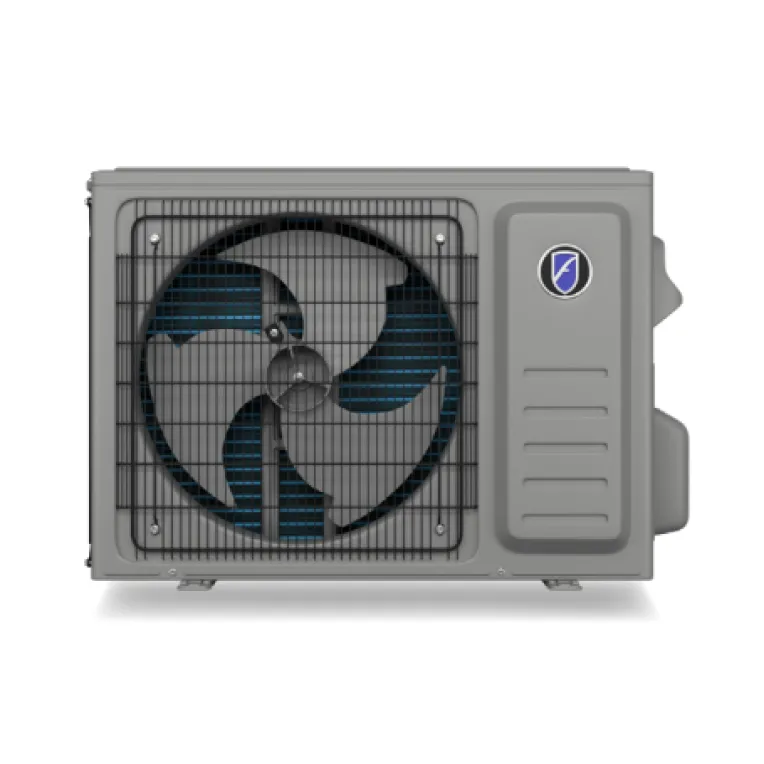

Friedrich FSHSR09B1C Nan 9 MBH Heat Pump OD Unit 115V

Product Description

The FRIEDRICH FSHSR09B1C is a 9 MBH heat pump outdoor unit with inverter technology for efficient cooling. It uses R32 refrigerant with a Global Warming Potential (GWP) of 675 and is pre-charged with refrigerant for 25 ft. of line. This single zone outdoor unit can be used with the Friedrich FAHSW09A1C Wall Unit only.

• Inverter technology for efficient cooling
• Uses R32 refrigerant with a Global Warming Potential (GWP) of 675
• Can be used with Friedrich FAHSW09A1C Wall Unit only

Product Highlights

This Friedrich heat pump features high efficiency, operates in cooling mode down to 5°F and heating mode down to -5°F, and has a precision inverter variable speed compressor.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FSHSR09B1C

Technical Specifications

• MPN: FSHSR09B1C
• Brand: FRIEDRICH
• Category 1: HVAC Equipment
• Category 2: Specialty
• Category 3: Mini-Split Units & Accessories
• Cooling BTUs: 9000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 9500
• Outdoor Unit Noise Level (dBA): 53
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Max. Pipe Length (ft.): 66
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -5°F - 75°F
• Min. Outdoor Temp for Heat °F: -5
• Width (in.): 28.125
• Depth (in.): 9.5
• Height (in.): 21.25
• Voltage: 110-120V
• Amps: 14.6
• Circuit Breaker Size (Amps): 25
• Max. Airflow: 1,295 CFM
• Fan Motor: 36W (Output)
• Refrigerant: R-32
• SEER2: 20
• Cooling Capacity: 9,000 Btu/h @ 95°F
• Heating Capacity: 9,500 Btu
• COP2: 4.1
• EER2: 12.5
• HSPF2: 9.0
• Sound Level: 53 dB(A)
• Connection: Flare
• Moisture Removal: 1.9 pints/hr
• Gas Line: 3/8"
