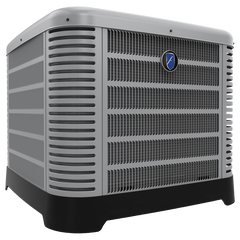

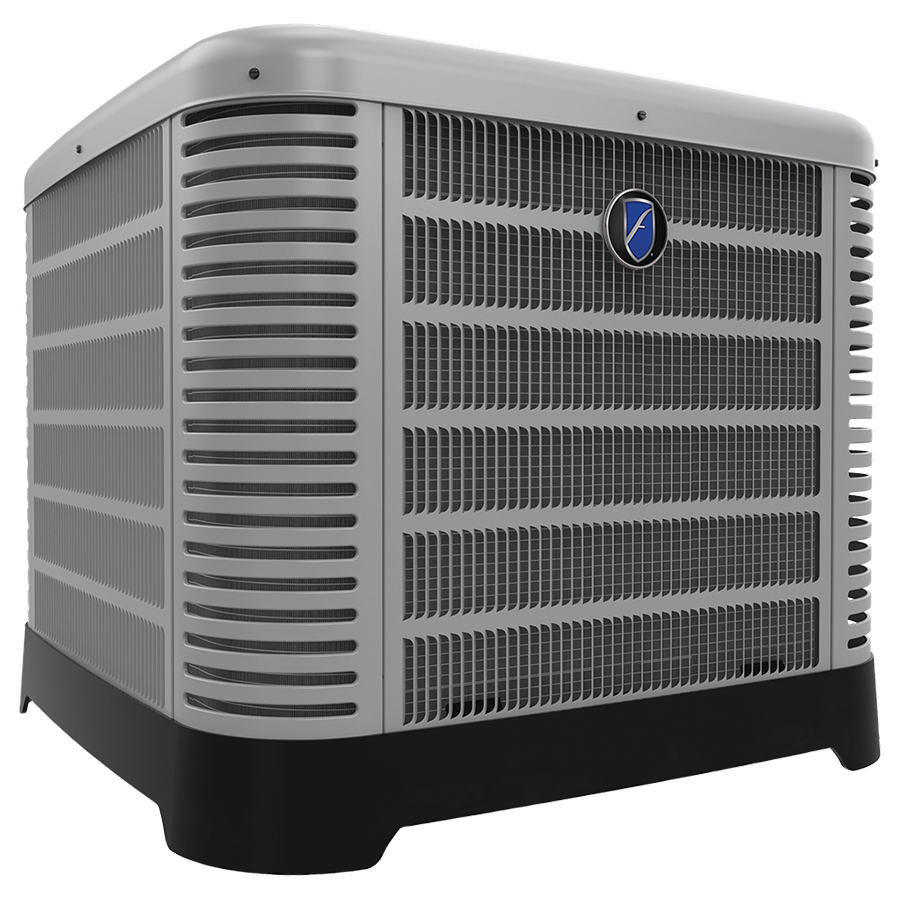

Friedrich FRP15AY36AJ2NA Heat Pump 36000 Btu/h 3 Ton

Product Description

The FRIEDRICH FRP15AY36AJ2NA is a two-stage residential heat pump rated at 36,000 BTU/h cooling capacity — equivalent to 3 nominal tons. Operating on R454B refrigerant, it meets the 15 SEER2 efficiency standard required under current Department of Energy regional regulations. Two-stage operation allows the compressor to run at reduced capacity during mild conditions, which reduces runtime cycling, lowers energy consumption, and improves indoor humidity control compared to single-stage equipment. This unit is designed for split-system installations handled by licensed HVAC technicians.

This heat pump is suited for residential split-system applications where a 3-ton cooling and heating load has been determined by a proper Manual J or equivalent load calculation. The two-stage compressor configuration makes it a strong fit for climates with variable cooling demand across the season. The R454B refrigerant charge is a lower-GWP alternative to R-410A, aligning with current EPA regulations on refrigerant transitions. Installations pair this outdoor unit with a compatible air handler or coil rated for R454B service.

Key Features

• 36,000 BTU/h nominal cooling capacity — 3-ton classification
• 15 SEER2 efficiency rating meets current DOE regional standards
• Two-stage compressor reduces cycling and improves humidity control
• R454B refrigerant — lower global warming potential than R-410A
• Heat pump configuration provides both heating and cooling from a single outdoor unit

Compatibility

Designed as an OEM-style replacement or new-installation outdoor heat pump unit for 3-ton residential split systems configured for R454B refrigerant service. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician qualified to handle R454B refrigerant. Disconnect and lock out all electrical power before servicing the unit or connecting refrigerant lines. The outdoor unit should be set on a level pad per manufacturer guidelines, and all refrigerant line connections must be leak-tested before system startup. Refer to local mechanical codes and the equipment installation manual for electrical disconnect, line set sizing, and clearance requirements.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h
• Nominal Tonnage: 3 tons
• Efficiency Rating: 15 SEER2
• Compressor Stages: Two Stage
• Refrigerant: R454B

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP15AY36AJ2NA
