Friedrich FRA14AY60AJ1NALHP Condensing Unit 5 Ton 14 SEER2

Product Description

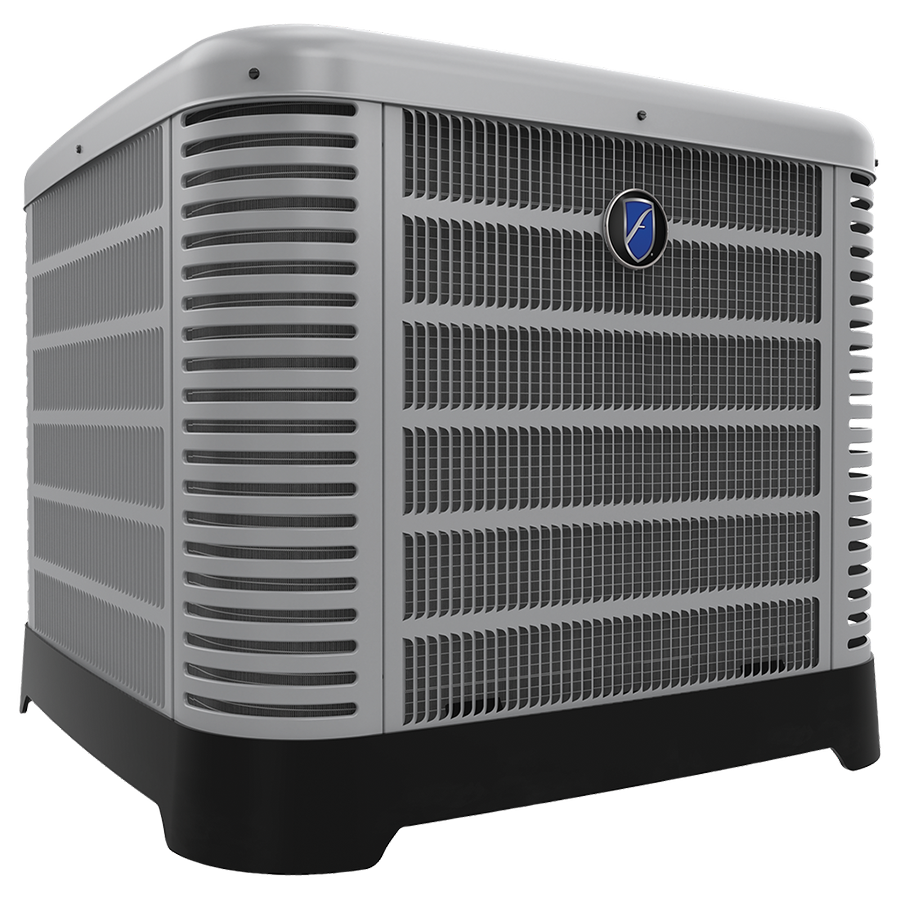

The FRIEDRICH FRA14AY60AJ1NALHP is a single-stage residential condensing unit rated at 60,000 BTU/h (5 nominal tons) with a 14 SEER2 efficiency rating. It operates on R454B refrigerant, a lower-GWP A2L refrigerant increasingly specified in new residential and light-commercial cooling installations. The unit is the outdoor section of a split-system air conditioner, housing the compressor, condenser coil, and condenser fan. Licensed HVAC technicians install and service this equipment as part of a matched indoor and outdoor split system.

This condensing unit is sized for 5-ton residential or light-commercial cooling loads. Single-stage operation delivers consistent full-capacity cooling on every call, making it straightforward to commission and service. The R454B refrigerant charge requires A2L-rated handling procedures and compatible system components, including an A2L-rated air handler or coil and appropriate leak-detection practices per current ASHRAE and local mechanical codes.

Key Features

• 60,000 BTU/h cooling capacity at 5 nominal tons
• 14 SEER2 rated efficiency under DOE 2023 test conditions
• R454B refrigerant — lower global warming potential versus R-410A
• Single-stage compressor operation for reliable, full-capacity cooling
• Outdoor condensing unit designed for split-system pairing with a matched indoor coil or air handler

Compatibility

Designed as an OEM-style outdoor condensing unit for use in residential or light-commercial split-system cooling applications. Pair with an A2L-compatible indoor coil or air handler rated for R454B and matched to 5-ton capacity.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician with A2L refrigerant handling credentials where required by local jurisdiction. Disconnect and lock out all electrical power before making any connections or performing service. R454B is a mildly flammable A2L refrigerant — follow current ASHRAE 15, local mechanical codes, and manufacturer guidelines for safe handling, leak detection, and recovery. Confirm that all system components, including indoor coil, line set, and refrigerant accessories, are rated and approved for R454B service.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h
• Nominal Tonnage: 5 tons
• SEER2 Rating: 14
• Refrigerant Type: R454B
• Stages: Single Stage

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRA14AY60AJ1NALHP
