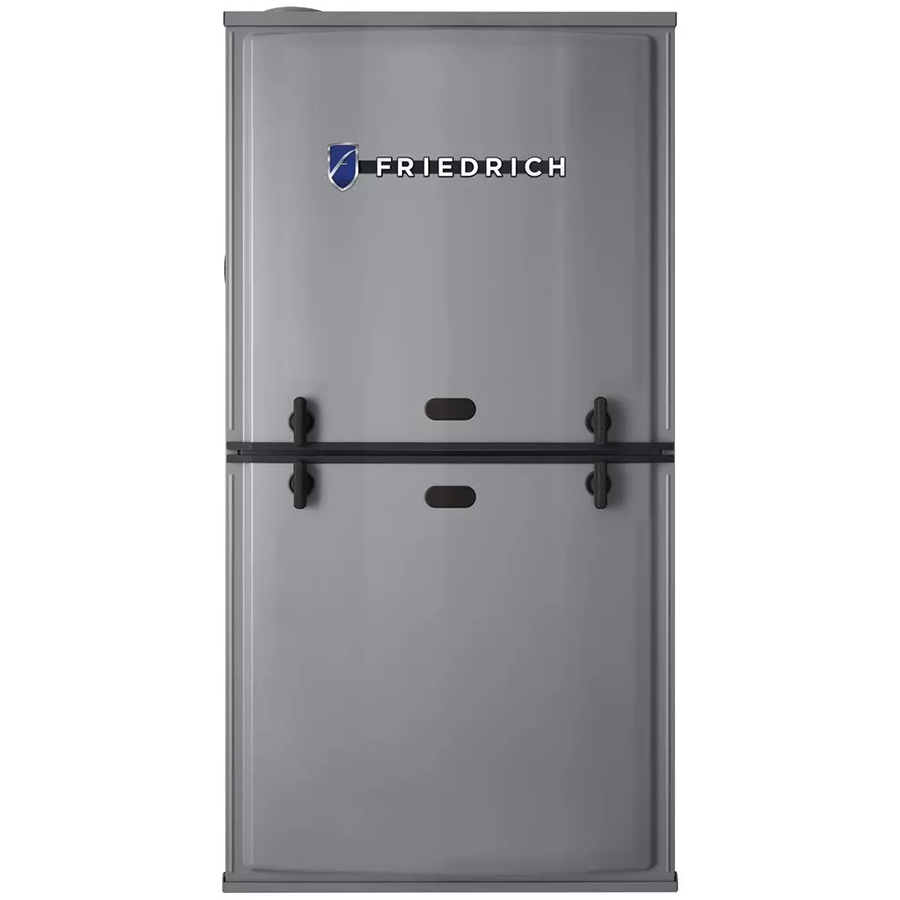

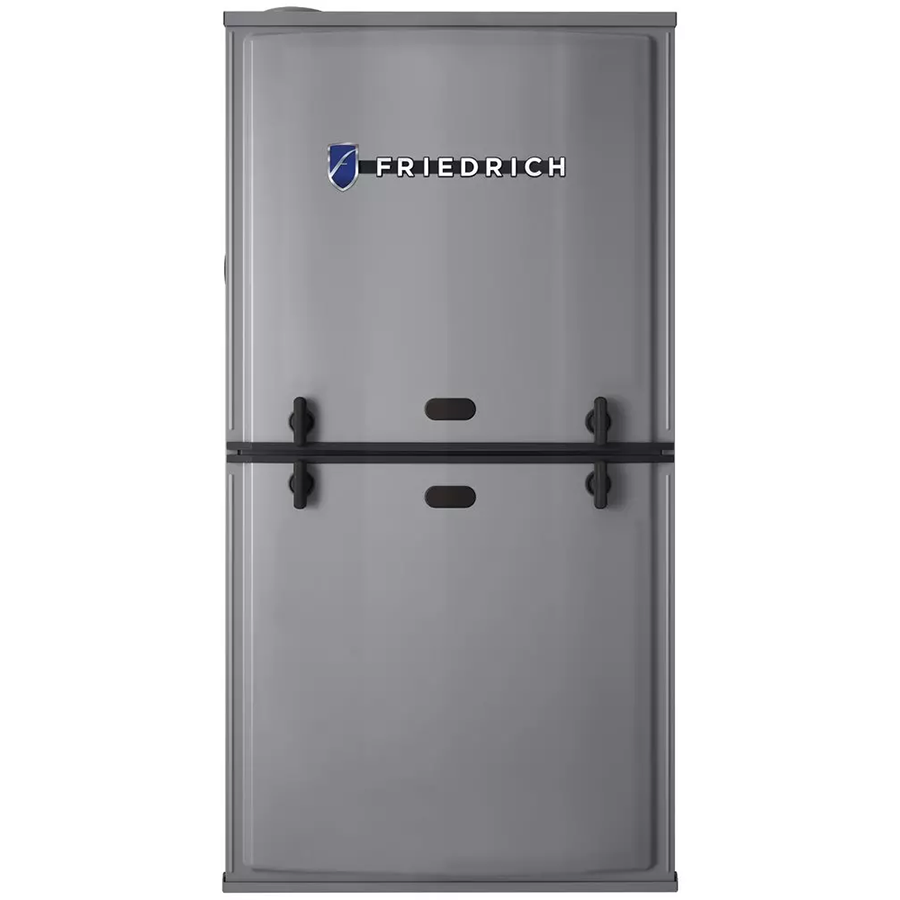

Friedrich FR951T0855A21M4SNAP 95% 85K Btu Furnace

Product Description

The FRIEDRICH FR951T0855A21M4SNAP is a multi-position, single-stage natural gas furnace rated at 95% AFUE and 85,000 BTU/h input. Designed for the Builders Series, it delivers high-efficiency heating through an ECM blower motor, which reduces electrical consumption compared to standard PSC motors. The multi-position configuration allows installation in upflow, downflow, or horizontal orientations, giving installers flexibility across a wide range of mechanical room and closet layouts. This furnace is suited for residential new construction and replacement applications where a reliable, single-stage heating system with a 5-ton nominal cooling capacity is required.

This furnace is rated for residential installations and pairs with a central air conditioning system of up to 5 nominal tons. The multi-position design makes it practical for basement, closet, utility room, and attic installations. The Builders Series positions this unit as a straightforward replacement or new-construction furnace where proven performance and installation efficiency are the priority. Licensed HVAC technicians handle the gas, electrical, and venting connections during commissioning.

Key Features

• 95% AFUE efficiency reduces fuel consumption in residential heating applications
• 85,000 BTU/h input capacity for medium-to-large residential structures
• ECM blower motor lowers electrical draw and supports variable-speed airflow
• Multi-position design supports upflow, downflow, and horizontal installations
• Single-stage operation with a nominal 5-ton cooling compatibility
• 21-inch cabinet width fits standard air handler closets and mechanical spaces

Compatibility

Designed as an OEM-style replacement or new-construction furnace for residential natural gas heating systems requiring a 95% AFUE, single-stage, multi-position unit with a 5-ton nominal cooling rating.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Fuel Gas Code (NFPA 54 / ANSI Z223.1) and applicable local codes. Shut off gas supply and disconnect electrical power before beginning any service or replacement work. This unit is approved for natural gas only — confirm fuel type before connecting the gas line. Venting must comply with Category IV requirements typical of 90-plus percent condensing furnaces, using approved PVC or CPVC flue pipe.

Technical Specifications

• Fuel Type: Natural Gas
• AFUE Efficiency: 95%
• BTU/h Input: 85,000 BTU/h
• Stage: Single Stage
• Nominal Cooling Capacity: 5 Tons
• Configuration: Multi-Position
• Motor Type: ECM
• Cabinet Width: 21 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951T0855A21M4SNAP
